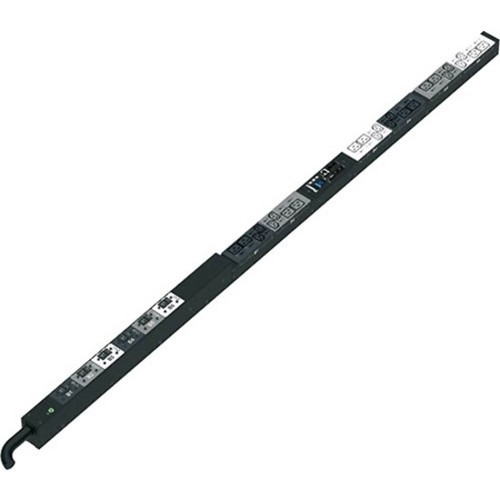

Panduit P24G04M-RD2A SmartZone G5 Intelligent 24-Outlet Monitored PDU - 14. 40 kVA - 208V AC - 12x C13 & 12x C19 - Hubbell CS8365C - 0U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This three-phase monitored PDU operates at 208V AC input and output voltage with a 50A input current rating. The 14.40 kVA (14.40 kW) power capacity provides substantial headroom for high-density rack deployments, ensuring stable power delivery to connected equipment.
Network connectivity via the integrated RJ-45 port enables remote monitoring and management through standard network protocols. The vertical mounting orientation and 0U rack height design maximize space efficiency in standard 19-inch racks, while the compact 2.05" width and 2.10" depth profile minimizes obstruction in crowded cabinet environments.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU combines intelligent monitoring with robust power distribution capabilities. The monitored functionality provides visibility into power usage patterns, helping organizations implement effective power management strategies and identify underutilized or overloaded circuits before they become operational issues.
Balanced Outlet Configuration
With equal numbers of C13 and C19 outlets, this PDU supports mixed equipment environments where both standard server power cords and high-power devices coexist.
- 12 C13 outlets for standard equipment
- 12 C19 outlets for high-power devices
- Flexible power distribution options
Space-Efficient Design
The 0U vertical mounting design conserves valuable rack space while providing full-length power distribution along the rack's vertical profile.
- Zero rack units required
- Vertical orientation saves horizontal space
- Compact dimensions: 2.05"W x 2.10"D
Deployment / Use Cases
This monitored PDU is ideal for data centers, server rooms, and network closets where power visibility and reliable distribution are critical. The combination of monitoring capabilities and substantial power capacity makes it suitable for environments requiring both power delivery and consumption analytics.
Enterprise IT departments can deploy this unit in racks containing mixed equipment types, from standard 1U servers using C13 connections to high-power storage arrays or networking gear requiring C19 connections. The three-phase power support and 208V operation align with commercial and data center power standards, while the RoHS compliance ensures environmental responsibility.
Data Center Power Distribution
Provide monitored power to server racks with mixed equipment types while maintaining visibility into power consumption patterns.
- Real-time power monitoring
- Mixed outlet support
- Three-phase power compatibility
High-Density Rack Environments
Support power-intensive applications with 14.40 kVA capacity and balanced outlet configuration for optimal load distribution.
- Substantial power headroom
- Vertical space efficiency
- Network-accessible monitoring
Physical Profile
The PDU features a vertical mounting design with dimensions of 2.05" width, 2.10" depth, and 68.90" length, optimized for installation in standard 19-inch rack enclosures. The 0U rack height means it occupies no rack units, preserving space for active equipment while providing full-length power distribution along the rack's vertical profile. The vertical orientation and compact cross-section minimize interference with cable management systems and airflow patterns within the rack.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 24-outlet monitored PDU with 12 C13 and 12 C19 receptacles
- 14.40 kVA / 14.40 kW power capacity for demanding rack environments
- 208V AC three-phase input and output operation
- Hubbell CS8365C plug connector for reliable power connection
- Network monitoring via RJ-45 port for remote management
- 0U vertical rack-mount design saves valuable rack space
- RoHS compliant for environmental responsibility
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24G04M-RD2A |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MSPO |
| Product Name | SmartZone G5 Intelligent 24-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | Hubbell CS8365C |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13,12 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 14.40 VA |
| Power Rating (Watt) | 14.40 kW |
| Input Current | 50 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Panduit PDU?
This Panduit SmartZone G5 PDU has a power rating of 14.40 kVA (14.40 kW), providing substantial capacity for powering multiple servers, storage devices, and networking equipment in rack environments. The 208V AC three-phase operation and 50A input current support high-density deployments without compromising performance.
How many outlets does this PDU have and what types are they?
The PDU features 24 total outlets with a balanced configuration of 12 IEC 60320 C13 receptacles and 12 IEC 60320 C19 receptacles. This mix accommodates both standard server power cords (C13) and high-power equipment connections (C19), making it suitable for racks with diverse equipment types.
What does 'monitored' mean for this PDU?
Monitored indicates this PDU includes network connectivity via an RJ-45 port, allowing remote monitoring of power consumption, load levels, and environmental conditions. This enables IT administrators to track power usage patterns, identify potential issues, and optimize energy distribution across connected equipment through standard network management protocols.
How is this PDU mounted in a rack?
This PDU uses a vertical mounting orientation with a 0U rack height design, meaning it occupies no rack units. It mounts vertically along the side or rear of standard 19-inch racks, conserving horizontal space for active equipment while providing full-length power distribution. The compact 2.05" width and 2.10" depth minimize obstruction in crowded cabinet environments.
What input connector does this PDU use?
The PDU utilizes a Hubbell CS8365C plug connector for its three-phase power input. This industrial-grade connector ensures reliable power connection in data center and commercial environments, with proper grounding and secure mating for consistent power delivery to all 24 outlets.
What voltage does this PDU operate at?
This PDU operates at 208V AC for both input and output voltage. The three-phase 208V operation aligns with standard commercial and data center power systems, providing efficient power distribution for server racks and networking equipment while maintaining compatibility with typical facility power infrastructure.
What power capacity is listed for this UPS?
The listed power specification is 14.40 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
