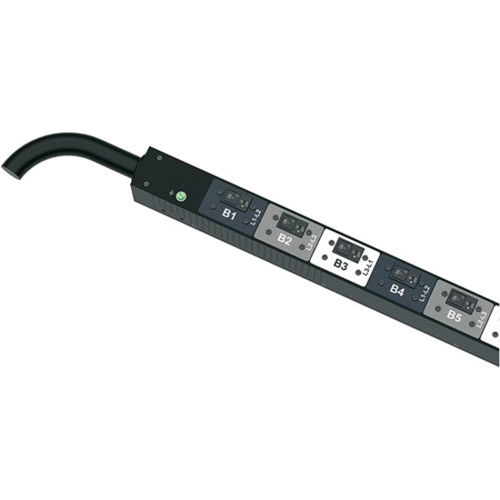

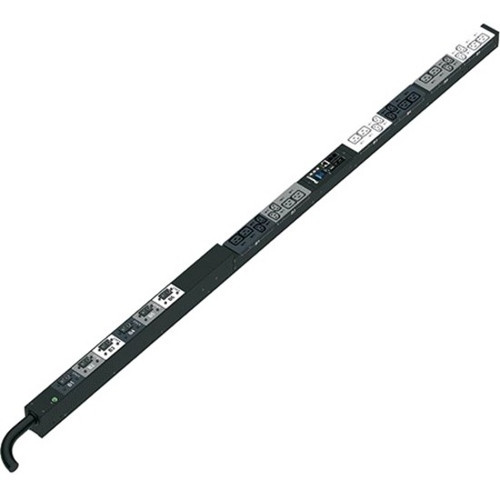

Panduit P24D34M-BL1A SmartZone G5 Intelligent Monitored Rack PDU - 24 Outlets - 12x C13 - 12x C19 - 208V AC - 17. 3 kW - 0U Vertical Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This monitored PDU utilizes IEC 60309 3P+E plug/connector type for three-phase power delivery, with output distributed through 12 IEC 60320 C13 outlets and 12 IEC 60320 C19 outlets. The consistent 208V AC input and output voltage ensures stable power distribution without voltage conversion.
Physical dimensions of 2.05" width, 2.10" depth, and 68.90" length create a slim profile that fits standard rack enclosures without consuming usable rack units. The network-enabled design provides real-time monitoring of electrical parameters, allowing IT administrators to track power consumption and identify potential issues before they affect uptime.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU combines robust power delivery with intelligent features that address critical data center requirements. The vertical 0U mounting preserves valuable rack space while providing full outlet accessibility, and RoHS compliance demonstrates environmental responsibility in manufacturing.
Intelligent Monitoring
Remote monitoring capabilities enable real-time tracking of voltage and power metrics through network connectivity, supporting data center efficiency initiatives and proactive maintenance strategies.
- Network RJ-45 port for remote access
- Monitor single or three-phase voltage
- Supports infrastructure management systems
High-Density Power Distribution
With 24 outlets delivering 17.3 kW of power capacity, this PDU supports demanding rack environments where multiple servers, storage arrays, and networking equipment require reliable, monitored power distribution.
- 17.3 kW power rating
- 12 C13 + 12 C19 outlet configuration
- 60A input current capacity
Deployment / Use Cases
The Panduit SmartZone G5 PDU serves organizations requiring reliable, monitored power distribution for critical infrastructure. The three-phase design supports larger power loads typical in data center environments, while the outlet mix accommodates both standard server power cords (C13) and higher-current equipment (C19).
Vertical mounting along the side of rack enclosures maximizes usable space while maintaining organized cable management. The network monitoring capabilities integrate with existing data center infrastructure management (DCIM) systems, providing visibility into power utilization patterns and supporting capacity planning initiatives.
Data Center Rack Deployment
Ideal for server racks, network cabinets, and storage arrays in enterprise data centers where monitored power distribution and high outlet density are essential for equipment reliability and management.
High-Availability Environments
Suited for financial institutions, healthcare facilities, and cloud service providers where uptime is critical and remote power monitoring supports service level agreements and operational continuity.
Physical Profile
Designed specifically for rack environments, this PDU features a vertical mounting orientation with 0U rack height consumption. The slim 2.05" width and 2.10" depth profile fits neatly along rack sides, while the 68.90" length provides ample spacing between outlets for cable management.
The vertical installation maintains clear access to all 24 outlets without obstructing equipment installation or maintenance activities in the rack. The robust construction supports the weight of connected cables while maintaining proper alignment within the rack enclosure.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 24-outlet rack PDU with 12 C13 and 12 C19 connectors
- 17.3 kW power rating with 208V AC input/output
- Three-phase power delivery via IEC 60309 3P+E connector
- Remote monitoring capabilities through RJ-45 network port
- Vertical 0U mounting preserves rack space
- RoHS compliant for environmental responsibility
- 60A input current capacity
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24D34M-BL1A |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MI |
| Product Name | SmartZone G5 Intelligent 24-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 3P+E |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13,12 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 60 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Panduit PDU?
This SmartZone G5 PDU delivers 17.30 kW of power capacity with 208V AC input and output voltage. It supports three-phase power delivery through a 60A input current, making it suitable for high-density rack environments requiring substantial power distribution.
How many outlets does this PDU have and what types?
The PDU features 24 total outlets with an even split between connector types: 12 IEC 60320 C13 outlets and 12 IEC 60320 C19 outlets. This configuration supports both standard server power cords (C13) and higher-current equipment requiring C19 connections.
What does 'monitored PDU' mean for this unit?
As a monitored PDU, this unit includes network connectivity via an RJ-45 port that enables remote monitoring of electrical parameters. You can track single or three-phase voltage, monitor power consumption, and integrate the data with infrastructure management systems for proactive maintenance.
How is this PDU mounted in a rack?
This PDU uses vertical mounting along the side of rack enclosures with a 0U rack height profile. The vertical orientation preserves usable rack space while providing full access to all outlets. Mounting hardware is included for secure installation in standard 19" or 23" rack systems.
What input voltage does this PDU require?
The PDU requires 208V AC three-phase input power through an IEC 60309 3P+E connector. The output voltage matches the input at 208V AC, providing consistent power distribution without voltage conversion for connected equipment.
What environmental certifications does this PDU have?
This PDU is RoHS (Restriction of Hazardous Substances) compliant and carries an environmentally friendly designation. It meets international standards for reduced hazardous materials in electronic equipment manufacturing and includes a 3-year limited warranty for added reliability assurance.
What power capacity is listed for this UPS?
The listed power specification is 17.30 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
