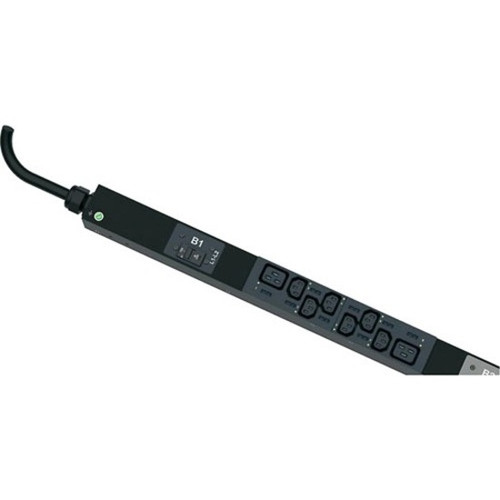

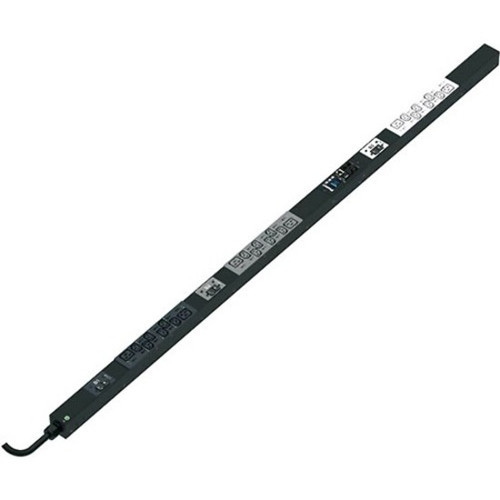

Panduit P24G02M-YL2C SmartZone G5 Intelligent 24-Outlet Monitored PDU - 8. 60 kW - 208V AC - 18x C13 & 6x C19 - 0U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartZone G5 PDU operates on three-phase power with a 30A input current capacity through its NEMA L15-30P plug. The 8.60 kW power rating ensures sufficient capacity for modern server racks, while the 208V AC input/output voltage matches standard North American three-phase power configurations commonly found in data centers and server rooms.
The PDU's intelligent monitoring capabilities extend beyond basic power distribution. The network-enabled design allows for remote monitoring of single or three-phase voltage, current, and power consumption through standard network management protocols. This enables proactive capacity planning, load balancing across phases, and early detection of potential power issues before they impact critical equipment.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU combines robust power distribution with intelligent monitoring in a zero-rack-unit design that maximizes valuable rack space. Unlike basic PDUs that simply distribute power, this monitored unit provides the visibility and control needed for modern data center management.
Intelligent Load Management
Remote monitoring capabilities enable precise load balancing across all three phases, preventing overload conditions and optimizing power utilization throughout the rack environment.
- Real-time voltage monitoring
- Phase balancing visibility
- Network-accessible power data
Space-Efficient Design
The 0U vertical mounting orientation preserves valuable rack space for servers and networking equipment while providing full 24-outlet capacity in a compact form factor.
- Zero rack units required
- Vertical mounting saves space
- 68.9" length fits standard racks
Comprehensive Outlet Mix
With 18 C13 and 6 C19 outlets, this PDU supports both standard server power cords and higher-current equipment, providing flexibility for diverse rack configurations.
- 18 IEC C13 outlets
- 6 IEC C19 outlets
- Mixed configuration support
Deployment / Use Cases
This monitored PDU is engineered for deployment in data centers, server rooms, and network closets where reliable power distribution and monitoring are essential. The three-phase 208V configuration makes it ideal for North American commercial and enterprise environments with standard three-phase power infrastructure.
The unit excels in high-density server racks where multiple devices require coordinated power management. IT teams can deploy this PDU to support blade server enclosures, storage arrays, network switches, and other rack-mounted equipment while maintaining visibility into power consumption patterns and phase loading.
Data Center Server Racks
Provide monitored power distribution for full-height server racks with mixed equipment types, enabling load balancing and capacity planning across all three phases.
Network Equipment Cabinets
Support high-power networking gear with C19 outlets while monitoring power consumption to prevent circuit overloads in critical network infrastructure.
Physical Profile
Designed for vertical mounting in standard 19-inch racks, this PDU occupies zero rack units with dimensions of 2.05" width, 2.10" depth, and 68.90" length. The compact profile fits neatly along the side or rear of server racks without consuming valuable equipment mounting space. The vertical orientation and rack-mountable design ensure secure installation in both open-frame and enclosed rack environments.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 24-outlet monitored PDU with 8.60 kW power capacity
- Three-phase 208V AC input/output with 30A current rating
- 18 IEC 60320 C13 and 6 IEC 60320 C19 outlet configuration
- Zero rack unit (0U) vertical mounting design
- Network-enabled remote monitoring via RJ-45 interface
- NEMA L15-30P plug for three-phase power connection
- RoHS compliant and environmentally friendly construction
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24G02M-YL2C |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MSPO |
| Product Name | SmartZone G5 Intelligent 24-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L15-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 18 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 8.60 VA |
| Power Rating (Watt) | 8.60 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Panduit SmartZone G5 PDU?
This PDU delivers 8.60 kW (8.60 VA) of power capacity with a 30A input current rating. It operates at 208V AC for both input and output, making it suitable for three-phase power environments commonly found in data centers and server rooms.
How many outlets does this PDU have and what types are included?
The PDU features 24 total outlets with a mixed configuration: 18 IEC 60320 C13 outlets for standard server and networking equipment, plus 6 IEC 60320 C19 outlets for higher-current devices. This combination supports diverse rack configurations with both standard and high-power equipment requirements.
What does 'monitored' mean for this PDU and how is it accessed?
Monitored indicates this PDU provides remote monitoring capabilities through its integrated RJ-45 network interface. IT administrators can monitor single or three-phase voltage, current, and power consumption remotely, enabling load balancing, capacity planning, and proactive power management without physical access to the rack.
How does this PDU mount in a server rack and what space does it require?
This PDU uses vertical mounting with a zero rack unit (0U) design, meaning it mounts along the side or rear of the rack without consuming any equipment mounting space. It has dimensions of 2.05" width, 2.10" depth, and 68.90" length, fitting standard 19-inch racks while preserving valuable rack space for servers and networking gear.
What type of power plug does this PDU use for connection?
The PDU features a NEMA L15-30P plug designed for three-phase power connections. This plug type is standard for 208V AC three-phase applications in North American commercial and data center environments, providing secure connection to appropriate power sources.
What warranty coverage does Panduit provide for this SmartZone G5 PDU?
Panduit backs this PDU with a 3-year limited warranty, ensuring reliable performance in demanding server room and data center environments. The unit is also RoHS compliant and environmentally friendly, meeting modern environmental standards for electronic equipment.
What power capacity is listed for this UPS?
The listed power specification is 8.60 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
