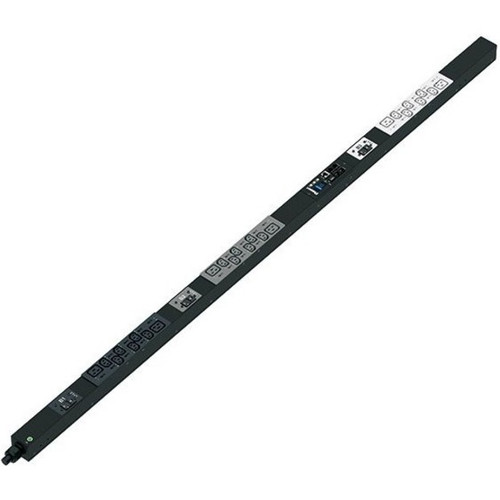

Panduit P24G03M-YL2A SmartZone G5 Intelligent 24-Outlet PDU - Monitored - 208V AC - 8. 6kVA - NEMA L21-30P - 18x C13 - 6x C19 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This monitored PDU operates on three-phase 208V AC power with 30A input current, delivering 8.6kVA/8.6kW of distributed power capacity. The unit maintains consistent 208V AC output voltage across all outlets, ensuring stable power delivery to connected equipment.
Network connectivity via RJ-45 enables remote monitoring and management through Panduit's SmartZone platform. The intelligent monitoring system provides real-time power metrics, including voltage, current, power factor, and energy consumption at both the PDU and individual outlet levels.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU's monitored functionality transforms basic power distribution into an intelligent infrastructure management tool. Active metering at each outlet enables precise capacity planning, load balancing, and identification of underutilized equipment for energy optimization.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Proactive Circuit Protection, Energy Management.
Proactive Circuit Protection
Continuous monitoring alerts administrators before input sources approach overload conditions, preventing circuit breaker trips and unexpected downtime.
- Early warning notifications
- Threshold-based alerts
- Historical load analysis
Energy Management
Outlet-level power measurement supports detailed energy usage reporting and helps identify opportunities for efficiency improvements.
- Per-outlet metering
- Power usage effectiveness tracking
- Cost allocation reporting
Deployment / Use Cases
This PDU is engineered for data center environments where power monitoring and efficient rack space utilization are critical. The vertical mounting orientation and 2U footprint make it ideal for full-height server cabinets where horizontal PDUs would consume valuable equipment space.
The outlet configuration supports typical server room deployments with a mix of 1U/2U servers (C13 connections) and higher-power equipment like blade chassis or storage arrays (C19 connections). Network connectivity enables integration with DCIM systems for comprehensive infrastructure management.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Distribution
Distribute three-phase power to server racks with detailed monitoring for capacity planning and uptime assurance.
High-Density Server Environments
Support power-intensive equipment with C19 outlets while maintaining monitoring capabilities for all connected devices.
Physical Profile
The PDU features a vertical rack-mount design with dimensions of 2.05" wide × 2.10" deep × 68.90" long, occupying minimal space within standard 19" server racks. The compact profile preserves horizontal rack space for equipment while providing full-length power distribution. The unit meets RoHS environmental compliance standards and carries a 3-year limited warranty for reliable long-term operation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.05" (51.99 mm), 2.10" (53.34 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Length
- 68.90" (1750.01 mm)
Highlights

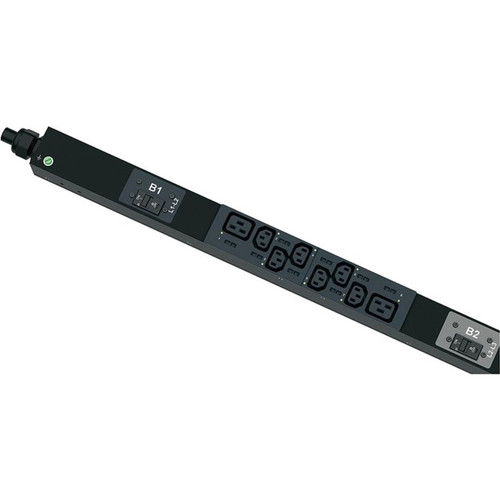

- 24-outlet monitored PDU with 18 C13 and 6 C19 receptacles
- Three-phase 208V AC operation with 8.6kVA/8.6kW power capacity
- Active metering at outlet level for energy optimization
- Network connectivity for remote monitoring and management
- Vertical rack-mount design with 2U footprint
- NEMA L21-30P input plug for three-phase connections
- 30A input current for high-power distribution
- RoHS compliant with 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24G03M-YL2A |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MSPO |
| Product Name | SmartZone G5 Intelligent 24-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 18 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 8.60 VA |
| Power Rating (Watt) | 8.60 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of power monitoring does this PDU provide?
This is a monitored PDU that provides active metering at both the unit and individual outlet levels. It measures voltage, current, power factor, and energy consumption for each outlet, enabling detailed power usage analysis and capacity planning through network connectivity.
What are the input and output voltage specifications?
The PDU operates with 208V AC three-phase input and delivers consistent 208V AC output across all 24 outlets. This voltage is standard for North American three-phase data center power distribution and supports most server and networking equipment.
How many outlets does this PDU have and what types?
The PDU features 24 total outlets: 18 IEC 60320 C13 receptacles and 6 IEC 60320 C19 receptacles. This configuration supports a balanced mix of standard server equipment (typically using C13 connections) and higher-power devices like blade servers or storage arrays (requiring C19 connections).
What is the power capacity rating of this PDU?
The PDU has a power rating of 8.60 kVA (kilovolt-amperes) and 8.60 kW (kilowatts). This represents the maximum distributed power capacity available across all outlets when operating at the rated 208V AC with 30A input current.
How is this PDU mounted in a server rack?
The PDU is designed for vertical rack mounting with a 2U footprint. It mounts along the side or rear of standard 19" server racks, conserving horizontal space for equipment. The vertical orientation and compact 2.05" width maximize usable rack space while providing full-length power distribution.
What type of input plug does this PDU use?
The PDU features a NEMA L21-30P plug, which is a standard three-phase locking connector for 208V AC applications. This plug type is commonly used in data center environments for three-phase power distribution to PDUs and other power equipment.
What power capacity is listed for this UPS?
The listed power specification is 8.60 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
