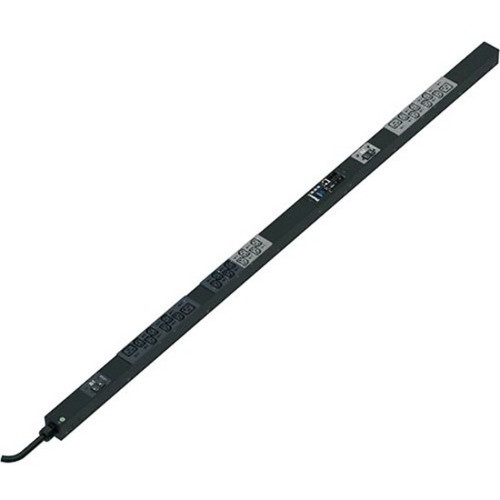

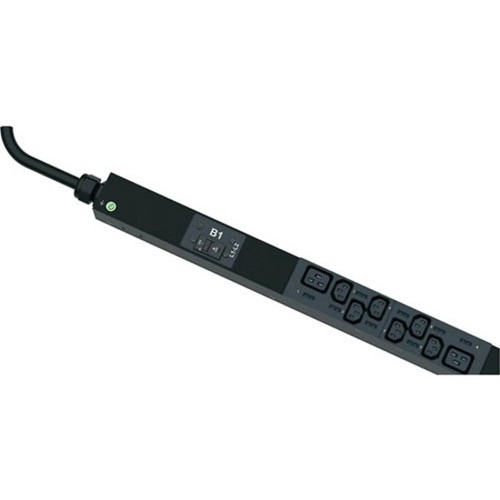

Panduit P24F01M-BU2A SmartZone G5 Intelligent Monitored Rack PDU - 24 Outlets - 20x C13 - 4x C19 - 208V AC - 5 kW - NEMA L6-30P - 0U Vertical
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a single-phase 208V AC system with matching input and output voltages, ensuring stable power delivery. It supports a 30A input current and provides 5 VA/5 kW of power capacity, suitable for medium-density rack deployments.
Network connectivity via RJ-45 allows for remote monitoring and management, enabling real-time visibility into power consumption and environmental conditions. The unit is RoHS compliant and environmentally friendly, backed by a 3-year limited warranty for added reliability.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The vertical 0U rack-mountable design saves valuable rack space while providing full-length power distribution. Its compact footprint (2.05" W x 2.10" D x 68.90" L) fits standard racks without obstructing airflow or equipment access.
Intelligent Power Monitoring
Remote monitoring capabilities provide detailed insights into voltage, current, and power usage, allowing for proactive load management and cost optimization.
- Single-phase voltage tracking
- Network-enabled remote access
- Load balancing support
High-Density Outlet Configuration
With 24 outlets (20 C13 + 4 C19), this PDU accommodates diverse equipment types, reducing the need for additional power strips and simplifying cable management.
- Mixed receptacle types
- Optimized for server racks
- Reduced clutter
Deployment / Use Cases
This PDU is particularly effective in environments where power usage needs to be tracked and optimized. Its monitored capabilities help identify underutilized circuits, prevent overloads, and support capacity planning.
The vertical mounting orientation and 0U height make it suitable for both new installations and retrofits in standard 19-inch racks, providing clean power distribution without consuming rack unit space.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Distribution
Ideal for server racks in data centers where reliable, monitored power distribution is critical for uptime and efficiency.
Network Closet & Server Rooms
Perfect for smaller IT environments requiring intelligent power management for switches, routers, and storage systems.
Physical Profile
Designed for vertical rack mounting, this PDU has a 0U height profile that mounts on the rear or side of racks without using valuable rack units. Its dimensions (2.05" wide x 2.10" deep x 68.90" long) provide full-length power distribution while maintaining a slim footprint.
The construction supports standard rack mounting hardware and includes appropriate mounting brackets for secure installation. The compact design ensures minimal obstruction while delivering power to all rack-mounted equipment.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 24-outlet configuration with 20 IEC C13 and 4 IEC C19 receptacles
- Monitored PDU with remote voltage monitoring capabilities
- 208V AC single-phase input and output voltage
- 5 kW power rating with 30A input current
- NEMA L6-30P input plug for high-power applications
- 0U vertical rack-mountable design saves rack space
- Network RJ-45 port for remote management
- RoHS compliant and environmentally friendly
- 3-year limited warranty for reliability assurance
- Vertical mounting orientation for clean installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24F01M-BU2A |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MPO |
| Product Name | SmartZone G5 Intelligent 24-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 20 x IEC 60320 C13,4 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 5 VA |
| Power Rating (Watt) | 5 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of PDU is the Panduit SmartZone G5 P24F01M-BU2A?
This is a monitored PDU, meaning it provides remote monitoring capabilities for voltage, current, and power usage through its network interface. Unlike basic PDUs, it enables administrators to track power consumption in real-time and optimize load distribution across connected equipment.
How many outlets does this PDU have and what types?
The PDU features 24 total outlets: 20 IEC 60320 C13 receptacles and 4 IEC 60320 C19 receptacles. This mixed configuration supports various equipment types, with C13 outlets typically used for servers and networking gear, while C19 outlets handle higher-power devices like UPS systems or power distribution units.
What power specifications does this PDU support?
It operates at 208V AC single-phase with both input and output at this voltage. The PDU has a 5 kW (5,000 watt) power rating with a 30A input current. This capacity makes it suitable for medium-density rack deployments in data centers or server rooms.
How is this PDU mounted in a rack?
This is a 0U vertical rack-mountable PDU designed to mount on the rear or side of standard 19-inch racks without consuming rack unit space. It uses vertical mounting orientation with appropriate brackets, providing full-length power distribution while maintaining a compact 2.05" width profile.
What monitoring capabilities does this intelligent PDU offer?
Through its network RJ-45 port, the PDU enables remote monitoring of single-phase voltage, current, and power parameters. This allows for load balancing decisions, identification of underutilized circuits, and proactive management to minimize extra costs while maintaining optimal power distribution.
What input plug type does this PDU use?
The PDU features a NEMA L6-30P input plug, which is a locking 30-amp connector designed for 208V AC applications. This plug type provides secure connection for high-power applications commonly found in data center environments and requires corresponding receptacle installation.
What power capacity is listed for this UPS?
The listed power specification is 5 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
