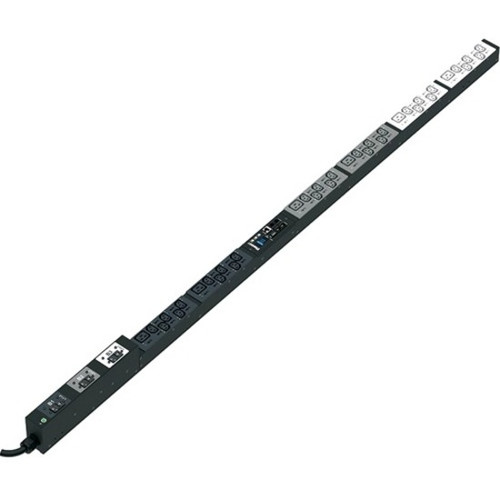

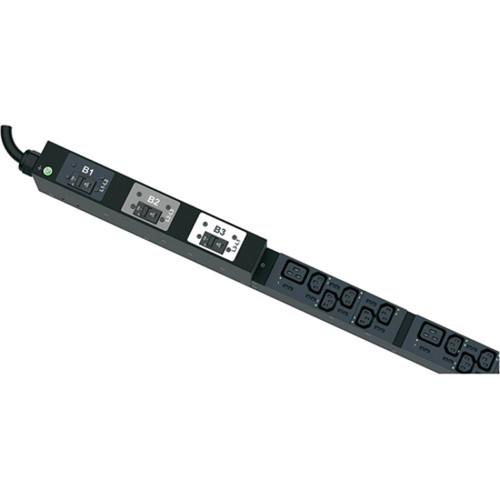

Panduit P36E35M-BU2A SmartZone G5 Intelligent Monitored PDU - 36 Outlets - 30 C13 - 6 C19 - 208V AC - 8. 6 kW - 0U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PDU features NEMA L21-30P input connectivity and delivers power through industry-standard IEC C13 and C19 outlets, ensuring compatibility with most rack-mounted equipment. Environmental compliance includes RoHS certification, and the unit carries a 3-year limited warranty for long-term reliability.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Monitoring Capabilities
The monitored PDU type provides real-time power data through its RJ-45 network port, enabling remote management and alerting for overload conditions before they impact critical equipment.
- Network monitoring via RJ-45
- Real-time power data access
- Overload warning system
Electrical Specifications
Operating at 208V AC with 30A input current, this unit delivers consistent power distribution across all outlets while maintaining three-phase balance for efficient operation.
- Three-phase power distribution
- 30A input capacity
- 208V AC input/output
Key Product Advantages
This PDU stands out with its combination of high outlet density and intelligent features. The 36-outlet configuration maximizes power distribution in limited rack space, while the monitoring capabilities provide early warning of potential overloads. The vertical 0U mounting preserves valuable rack real estate for equipment rather than power distribution units.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include 36-outlet density, Network monitoring, 0U space-saving design, Three-phase power, RoHS compliant.
Deployment / Use Cases
The Panduit SmartZone G5 PDU excels in environments where power reliability and management are critical. Its 36-outlet capacity makes it particularly valuable in high-density server deployments, while the monitoring capabilities support proactive infrastructure management.
The vertical 0U mounting configuration makes this unit ideal for racks where horizontal space is at a premium, allowing full utilization of rack depth while maintaining easy access to all power connections. The three-phase 208V AC operation ensures compatibility with commercial power systems commonly found in data centers and enterprise facilities.
Data Center Power Distribution
Ideal for server racks in data centers where high-density power distribution and remote monitoring are essential for maintaining uptime and managing power capacity across multiple devices.
Network Equipment Rooms
Well-suited for telecom and network equipment installations where multiple switches, routers, and other networking gear require reliable, monitored power in a compact vertical form factor.
Physical Profile
Measuring 68.90" in length with a compact 2.05" width and 2.10" depth, this PDU installs vertically in standard 19" racks without consuming any rack units (0U). The vertical orientation along the side or rear of the rack provides clean cable management and easy access to all 36 outlets while maximizing equipment space within the rack enclosure.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 36 total outlets (30 IEC C13 + 6 IEC C19) for high-density power distribution
- Intelligent monitored PDU with network connectivity for remote power management
- 8.6 kW power rating supporting demanding server and network equipment loads
- Three-phase 208V AC operation with 30A input current capacity
- 0U vertical rack-mountable design saves valuable rack space
- NEMA L21-30P input connector for secure three-phase power connection
- RoHS compliant construction meeting environmental standards
- 3-year limited warranty for reliable long-term operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36E35M-BU2A |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MS |
| Product Name | SmartZone G5 Intelligent 36-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 8.60 VA |
| Power Rating (Watt) | 8.60 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of monitoring capabilities does this PDU offer?
This is a monitored PDU with network connectivity via an RJ-45 port, allowing remote access to real-time power data. It provides circuit protection and can warn administrators before critical input sources become overloaded, enabling proactive power management in data center environments.
How many outlets does this PDU have and what types are they?
The PDU features 36 total outlets: 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets. This combination supports a wide range of IT equipment, with C13 outlets typically used for servers and networking gear, while C19 outlets accommodate higher-power devices requiring more robust connections.
What power capacity does this PDU support?
The PDU has a power rating of 8.60 kW (8.60 VA) with 30A input current capacity. It operates at 208V AC input and output voltage, making it suitable for three-phase commercial power systems commonly found in data centers and enterprise facilities.
How does this PDU mount in a rack?
This PDU features a 0U vertical mounting design, meaning it installs along the side or rear of standard 19" racks without consuming any rack units. The vertical orientation with dimensions of 68.90" length, 2.05" width, and 2.10" depth maximizes equipment space within the rack while providing easy access to all outlets.
What type of power input connector does this PDU use?
The PDU uses a NEMA L21-30P plug/connector type for its power input. This three-phase connector is designed for 208V AC systems and provides a secure connection for the unit's 30A input capacity, ensuring reliable power delivery to all connected equipment.
What environmental standards does this PDU meet?
The PDU is environmentally friendly and complies with the Restriction of Hazardous Substances (RoHS) directive. This certification ensures the unit meets strict standards for limiting hazardous materials in electronic equipment, making it suitable for environmentally conscious deployments.
What power capacity is listed for this UPS?
The listed power specification is 8.60 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
