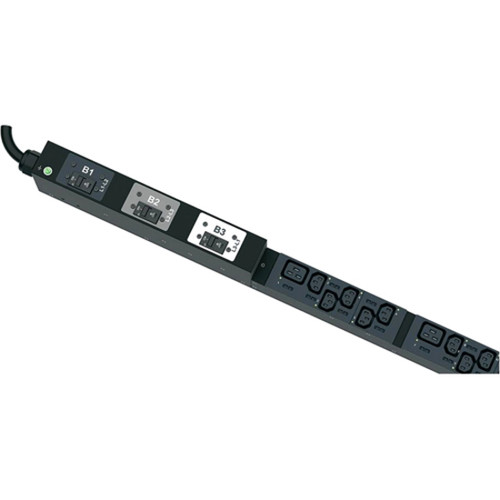

Panduit P36E35M-RD2A SmartZone G5 Intelligent Monitored PDU - 36 Outlets - 30 C13 - 6 C19 - 208V AC 8. 6kVA - 0U Vertical Rack Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This intelligent PDU operates on a three-phase power system with 208V AC input and output voltage, delivering 8.60 kVA (8.60 kW) of power capacity through a 30A input circuit. The unit features comprehensive outlet-level monitoring that provides detailed power metrics including voltage, current, and power factor measurements for each connected device.
Network connectivity via RJ-45 enables remote management and integration with data center infrastructure management (DCIM) systems. The monitored functionality allows for proactive power management, helping to prevent circuit overloads and optimize energy usage across the rack environment.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU provides intelligent power distribution with monitoring capabilities that transform basic power delivery into a strategic management tool. Active metering at the outlet level enables precise energy optimization and enhanced circuit protection, reducing the risk of downtime from power-related issues.
Intelligent Monitoring
Remote monitoring capabilities allow administrators to track single- or three-phase voltage, current, and power consumption from any location, providing complete visibility into power usage patterns.
- Outlet-level power metrics
- Real-time monitoring
- Historical data tracking
High-Density Design
The 0U vertical mounting configuration maximizes rack space utilization while providing 36 outlets in a compact form factor that fits standard 19-inch racks without consuming valuable U space.
- Space-efficient installation
- 36-outlet capacity
- Vertical mounting orientation
Deployment / Use Cases
This monitored PDU is ideally suited for data center environments where power visibility and control are critical to operational efficiency. The combination of high outlet density and intelligent monitoring makes it particularly valuable for server racks, network equipment cabinets, and storage arrays where multiple devices require reliable, monitored power distribution.
Enterprise IT departments benefit from the ability to implement power usage effectiveness (PUE) optimization strategies through detailed energy consumption data. The vertical 0U mounting makes it perfect for full-height rack installations where horizontal space is at a premium, allowing for maximum equipment density without sacrificing power management capabilities.
Data Center Power Management
Deploy in server rooms and data centers to gain granular insight into power consumption patterns, enabling better capacity planning and energy efficiency initiatives.
High-Density Equipment Racks
Support multiple servers, switches, and storage devices in a single rack with comprehensive power monitoring for each connected device.
Physical Profile
Designed for vertical mounting in standard 19-inch racks, this PDU features a slim profile measuring 68.90 inches in length with a width of 2.05 inches and depth of 2.10 inches. The 0U rack height designation means it mounts vertically along the side of the rack without consuming any horizontal rack units, preserving valuable equipment space.
The vertical orientation and compact dimensions make installation straightforward in both new and existing rack configurations. The unit's construction supports reliable operation in data center environments while maintaining compliance with RoHS environmental standards.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- Intelligent monitored PDU with outlet-level power metering
- 36 total outlets: 30 IEC C13 and 6 IEC C19 receptacles
- 8.60 kVA / 8.60 kW power capacity at 208V AC
- Three-phase power with 30A input current rating
- 0U vertical rack mount design saves horizontal space
- Network connectivity via RJ-45 for remote management
- NEMA L21-30P input plug configuration
- RoHS compliant construction with 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36E35M-RD2A |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MS |
| Product Name | SmartZone G5 Intelligent 36-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 8.60 VA |
| Power Rating (Watt) | 8.60 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of monitoring capabilities does this PDU provide?
This SmartZone G5 PDU provides intelligent monitored functionality with outlet-level power metering. It enables remote monitoring of voltage, current, and power consumption for each individual outlet, allowing administrators to track energy usage patterns and implement circuit protection measures. The network connectivity via RJ-45 port facilitates integration with data center management systems for comprehensive power visibility.
How many outlets does this PDU have and what types are they?
This PDU features 36 total outlets configured as 30 IEC 60320 C13 receptacles and 6 IEC 60320 C19 receptacles. This combination supports a mix of standard IT equipment (typically using C13 connections) and higher-power devices requiring C19 connections, providing flexibility for various equipment types within a single rack environment.
What is the power capacity of this PDU?
The PDU delivers 8.60 kVA (8.60 kW) of power capacity operating at 208V AC. It uses a three-phase power system with a 30A input current rating, making it suitable for powering multiple servers, network switches, and storage devices in data center environments where reliable, monitored power distribution is essential.
How does the 0U vertical mounting work?
The 0U designation means this PDU mounts vertically along the side of a standard 19-inch rack without consuming any horizontal rack units. With dimensions of 68.90 inches long, 2.05 inches wide, and 2.10 inches deep, it installs in the vertical space at the side of the rack, preserving all horizontal U space for servers, switches, and other equipment while providing 36 outlets of monitored power.
What input plug type does this PDU use?
This PDU features a NEMA L21-30P input plug designed for three-phase power connections. This plug type is commonly used in data center and commercial environments for higher-power applications, supporting the 208V AC, 30A input specifications of this intelligent monitored PDU system.
What warranty coverage does Panduit provide for this PDU?
Panduit backs this SmartZone G5 Intelligent Monitored PDU with a 3-year limited warranty. The product is also RoHS compliant, meeting environmental standards for hazardous substance restrictions. This warranty coverage supports reliable operation in demanding data center environments where continuous uptime is critical.
What power capacity is listed for this UPS?
The listed power specification is 8.60 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
