Panduit P36G19M-YL2C SmartZone G5 Intelligent 36-Outlet PDU - Monitored - 8. 60 kW - 208V AC - 30A Input - 0U Rack Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This monitored PDU operates on a three-phase electrical system with a NEMA L21-30P input plug, handling 30A input current at 208V AC. The power rating is 8.60 kW (8.60 VA), providing consistent output voltage matching the input for stable equipment operation.
Network connectivity via RJ-45 allows for integration into management systems, supporting remote monitoring of voltage parameters. The unit is environmentally compliant with RoHS certification and backed by a 3-year limited warranty.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU enhances data center efficiency and uptime through intelligent monitoring and robust power distribution. Its design prioritizes reliability and manageability in demanding IT environments.
Intelligent Monitoring
Remote monitoring capabilities allow IT staff to track single- or three-phase voltage levels via network connectivity, enabling proactive maintenance and reducing downtime risks.
- RJ-45 network port for management integration
- Voltage monitoring for each phase
High-Density Outlet Configuration

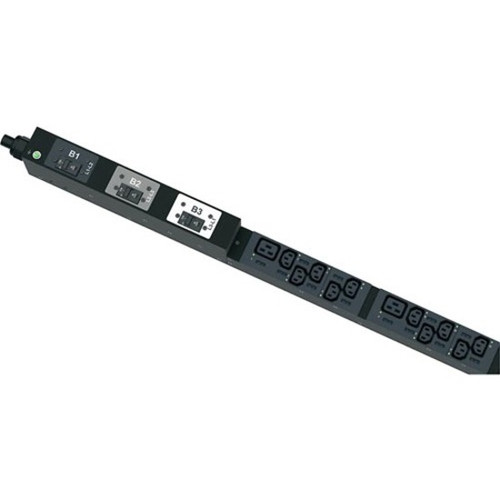

With 36 outlets combining C13 and C19 types, this PDU supports diverse equipment loads without requiring additional power strips or adapters.
- 30 x IEC C13 outlets for standard equipment
- 6 x IEC C19 outlets for high-power devices
Deployment / Use Cases
This PDU is engineered for data centers, server rooms, and network closets where reliable power distribution and space optimization are critical. Its 0U vertical mounting conserves valuable rack space while delivering power to multiple devices.
Ideal for environments with three-phase power infrastructure, it supports high-density server racks, network equipment cabinets, and storage arrays. The monitored functionality makes it suitable for facilities implementing DCIM (Data Center Infrastructure Management) solutions or requiring detailed power usage insights.
Data Center Racks
Deploy in standard 19-inch server racks to power multiple servers, switches, and storage units from a single power source with centralized monitoring.
Network Equipment Cabinets
Use in telecom or network closets to distribute power to routers, firewalls, and other networking gear while maintaining clean cable management.
Physical Profile

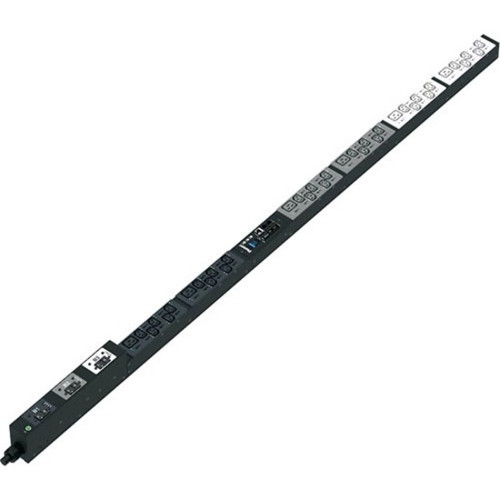

The PDU features a vertical rack-mount design with 0U height, mounting directly to rack posts without consuming usable rack space. Dimensions are 2.05" width, 2.10" depth, and 68.90" length (1750.01 mm), providing a slim profile that fits neatly in standard racks. The vertical orientation facilitates organized power cable routing and improves airflow management in enclosed cabinets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 2.05" (51.99 mm), 2.10" (53.34 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 36 total outlets: 30 x IEC C13 and 6 x IEC C19 receptacles
- 8.60 kW (8.60 VA) power capacity for high-density equipment
- Three-phase 208V AC input and output with 30A current rating
- Monitored PDU with RJ-45 network connectivity for remote voltage tracking
- 0U vertical rack-mount design saves valuable rack space
- NEMA L21-30P input plug for three-phase power connections
- RoHS compliant and environmentally friendly construction
- 3-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36G19M-YL2C |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MSPO |
| Product Name | SmartZone G5 Intelligent 36-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 8.60 VA |
| Power Rating (Watt) | 8.60 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Panduit PDU?
This PDU has a power rating of 8.60 kW (8.60 VA), providing sufficient capacity for high-density server racks and network equipment in data center environments.
How many outlets does this PDU have and what types?
There are 36 total outlets: 30 IEC 60320 C13 receptacles for standard equipment and 6 IEC 60320 C19 receptacles for higher-power devices, offering flexibility for diverse IT loads.
What input voltage and phase does this PDU require?
It requires three-phase 208V AC input with a NEMA L21-30P plug, delivering 208V AC output to connected equipment. The input current rating is 30A.
How is this PDU mounted in a rack?
It uses a vertical 0U rack-mount design, attaching directly to rack posts without consuming usable rack space. The mounting orientation is vertical for optimal cable management.
What does 'monitored' mean for this PDU?
Monitored functionality includes an RJ-45 network port that enables remote monitoring of single- or three-phase voltage levels, allowing IT staff to track power conditions without physical access.
What are the physical dimensions of this PDU?
Dimensions are 2.05" width, 2.10" depth, and 68.90" length (1750.01 mm), creating a slim vertical profile that fits standard 19-inch racks while accommodating 36 outlets.
What power capacity is listed for this UPS?
The listed power specification is 8.60 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
