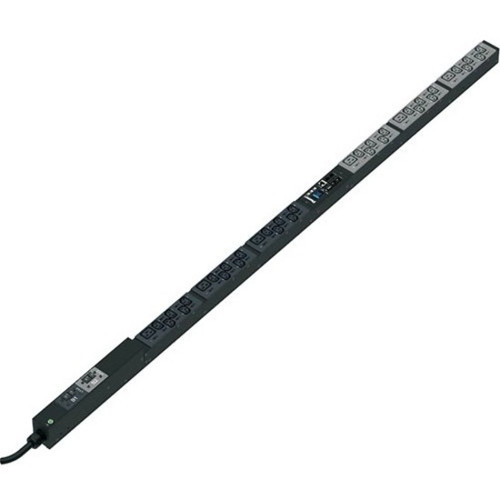

Panduit P36F15M-YL2A SmartZone G5 Intelligent 36-Outlet PDU - Monitored - 208V AC - 30x C13 - 6x C19 - NEMA L6-30P - 0U Rack Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartZone G5 PDU operates as a monitored three-phase power distribution unit with 5 VA/5 kW power rating and 30A input current. It maintains consistent 208V AC output across all outlets, ensuring stable power delivery to connected equipment. The unit includes a network interface for integration into power management systems, allowing administrators to track performance and receive alerts.
The physical design prioritizes space efficiency with a 0U rack height, mounting vertically to conserve rack space. Dimensions are 2.05" width, 2.10" depth, and 68.90" length, fitting standard 19-inch racks while providing full-length outlet access. Environmental compliance includes RoHS certification, and the product carries a 3-year limited warranty.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartZone G5 PDU combines high-density power distribution with intelligent monitoring capabilities, offering visibility and control over power consumption in critical environments. Remote monitoring of single- or three-phase voltage, frequency, and load levels helps prevent overloads and optimize power usage.
High-Density Outlet Configuration
With 30 C13 and 6 C19 outlets, this PDU supports numerous devices while maintaining organized power distribution for servers, switches, and storage arrays.
- 30 x IEC C13 outlets
- 6 x IEC C19 outlets
- Mixed device support
Intelligent Monitoring
Network connectivity enables remote monitoring of voltage, frequency, and load levels, providing real-time insights and alerting for proactive power management.
- Remote voltage monitoring
- Frequency tracking
- Load level alerts
Space-Efficient Rack Design
The 0U vertical mount design maximizes rack space utilization, allowing installation without consuming rack units dedicated to power distribution.
- 0U rack height
- Vertical mounting
- Space optimization
Deployment / Use Cases
This PDU is engineered for data centers, server rooms, and network closets where reliable power distribution and monitoring are essential. The three-phase 208V AC configuration suits environments with higher power demands, while the outlet mix accommodates both standard and high-power equipment.
Typical deployments include rack-mounted server installations, networking equipment clusters, and storage arrays requiring multiple power connections. The remote monitoring capabilities make it particularly valuable for managed service providers, colocation facilities, and enterprise IT departments needing visibility into power usage and health.
Data Center Power Distribution
Deploy in data center racks to distribute 208V AC power to servers, switches, and storage devices while monitoring load levels and voltage stability.
Server Room Management
Install in enterprise server rooms to provide organized power connections and remote monitoring for proactive maintenance and capacity planning.
Physical Profile
The PDU features a vertical rack-mountable design with 0U height, mounting directly to rack rails without consuming rack units. Dimensions are 2.05" width, 2.10" depth, and 68.90" length, providing a slim profile that fits standard 19-inch racks. The vertical orientation allows easy access to all outlets along the unit's length, while the compact depth minimizes protrusion into rack space.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 2.05" (51.99 mm), 2.10" (53.34 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 36-outlet PDU with 30 C13 and 6 C19 receptacles
- Monitored PDU type with remote voltage, frequency, and load monitoring
- Three-phase 208V AC input and output power
- 5 kW power rating with 30A input current
- NEMA L6-30P plug for high-current connectivity
- 0U vertical rack mount design saves rack space
- Network RJ-45 port for remote management
- RoHS compliant and environmentally friendly
- 3-year limited warranty
- Dimensions: 2.05" W x 2.10" D x 68.90" L
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36F15M-YL2A |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MPO |
| Product Name | SmartZone G5 Intelligent 36-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 5 VA |
| Power Rating (Watt) | 5 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of PDU is the Panduit SmartZone G5 P36F15M-YL2A?
This is a monitored three-phase PDU that provides remote monitoring capabilities for voltage, frequency, and load levels. It offers intelligent power distribution with network connectivity for integration into power management systems, allowing administrators to track performance and receive alerts about power conditions.
What power capacity does this PDU support?
The PDU has a 5 VA/5 kW power rating with 30A input current. It operates at 208V AC input and output voltage, making it suitable for three-phase power environments with higher power demands typically found in data centers and server rooms.
How many outlets does this PDU have and what types?
This PDU provides 36 total outlets: 30 IEC 60320 C13 receptacles and 6 IEC 60320 C19 receptacles. This mixed configuration supports both standard equipment (using C13 connections) and higher-power devices (using C19 connections) commonly found in server and networking environments.
What rack mounting options are available for this PDU?
The PDU is designed for vertical 0U rack mounting, meaning it mounts directly to rack rails without consuming any rack units. This space-efficient design maximizes usable rack space while providing full-length outlet access. The unit mounts vertically with dimensions of 2.05" width, 2.10" depth, and 68.90" length.
What type of plug does this PDU use for power input?
The PDU uses a NEMA L6-30P plug for power input. This locking connector provides secure high-current connectivity for three-phase 208V AC power sources, ensuring reliable power delivery to all connected outlets while preventing accidental disconnection.
What monitoring capabilities does this intelligent PDU offer?
The SmartZone G5 PDU includes network connectivity via an RJ-45 port that enables remote monitoring of single- or three-phase voltage, frequency, and load levels. This allows IT administrators to track power consumption, identify potential issues, and optimize power distribution across connected equipment from a central management interface.
What power capacity is listed for this UPS?
The listed power specification is 5 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
