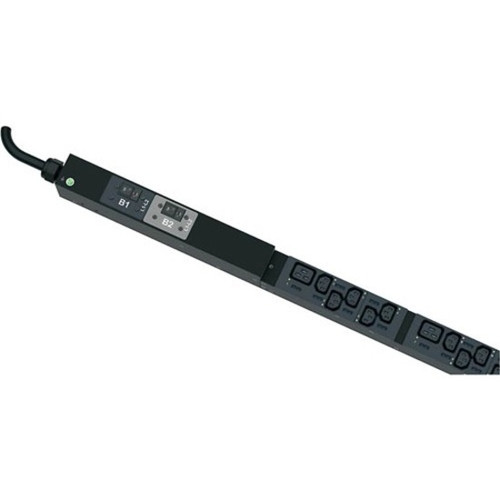

Panduit P36G18M-BL1A SmartZone G5 Intelligent 36-Outlet Monitored PDU - 5 kW - 208V AC - NEMA L6-30P - 30x C13 & 6x C19 - 0U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This single-phase monitored PDU operates at 208V AC with a 30A input current, delivering stable power distribution for critical loads. The 5 kW power rating ensures reliable performance for high-density server racks, network switches, and storage arrays.
Network connectivity via RJ-45 enables remote monitoring and management, allowing IT staff to track power metrics in real-time without physical access. The vertical mounting orientation and 0U rack height minimize space consumption while maintaining full accessibility to all outlets.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone G5 PDU combines intelligent monitoring with robust power distribution, offering enhanced control and efficiency for IT environments. Remote monitoring capabilities provide visibility into power usage, helping to optimize energy consumption and prevent overloads.
Remote Power Monitoring
Monitor voltage, frequency, and load levels remotely via network connection, enabling proactive management and reducing downtime risks.
- Real-time power metrics
- Network-enabled management
- Load level tracking
High-Density Outlet Configuration
With 30 C13 and 6 C19 outlets, this PDU supports a wide range of equipment, from servers to network devices, in a single unit.
- 36 total outlets
- Mixed receptacle types
- Equipment flexibility
Space-Efficient Rack Design
The 0U vertical mounting design maximizes rack space utilization while maintaining full outlet accessibility and cable management.
- 0U rack height
- Vertical orientation
- Optimized footprint
Deployment / Use Cases
This monitored PDU is ideal for data centers, server rooms, and network closets where reliable power distribution and remote management are critical. The 5 kW capacity and 208V AC operation suit it for powering high-density server racks, storage systems, and networking equipment.
The vertical 0U mounting makes it particularly useful in full-height racks where space optimization is essential. IT teams can deploy it in environments requiring centralized power monitoring, such as colocation facilities, enterprise data centers, or managed service provider infrastructures.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Server Racks
Power high-density server configurations with remote monitoring for uptime assurance and energy efficiency tracking.
Network Equipment Closets
Distribute power to switches, routers, and other network gear while monitoring load levels to prevent circuit overloads.
Physical Profile
The PDU features a compact vertical design with dimensions of 2.05" width, 2.10" depth, and 68.90" length, optimized for standard 19-inch racks. The 0U rack height allows installation without consuming rack unit space, while the vertical orientation facilitates cable management and outlet accessibility. The unit is RoHS compliant and backed by a 3-year limited warranty.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 2.05" (51.99 mm), 2.10" (53.34 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 36-outlet monitored PDU with 30 C13 and 6 C19 receptacles
- 5 kW power rating and 208V AC input/output for high-density loads
- Remote monitoring of voltage, frequency, and load levels via network
- Vertical 0U rack-mountable design optimizes space utilization
- NEMA L6-30P plug and single-phase operation
- 30A input current supports demanding equipment requirements
- RoHS compliant and environmentally friendly construction
- 3-year limited warranty for reliable long-term performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36G18M-BL1A |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MSPO |
| Product Name | SmartZone G5 Intelligent 36-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 5 VA |
| Power Rating (Watt) | 5 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this PDU?
This Panduit SmartZone G5 PDU has a power rating of 5 kW (5,000 watts) and 5 VA, with a 30A input current. It operates at 208V AC input and output, making it suitable for powering high-density server racks and network equipment in data center environments.
How many outlets does this PDU have and what types?
The PDU features 36 total outlets: 30 IEC 60320 C13 receptacles and 6 IEC 60320 C19 receptacles. This mixed configuration supports a wide range of equipment, from standard servers and switches to devices requiring higher-power C19 connections.
What does 'monitored PDU' mean for this unit?
As a monitored PDU, this unit includes network connectivity via RJ-45, allowing remote monitoring of power metrics. You can track single-phase voltage, frequency, and load levels in real-time, enabling proactive management and optimization of power usage in your IT infrastructure.
How is this PDU mounted in a rack?
This PDU is designed for vertical rack mounting with a 0U footprint. It mounts vertically along the side or rear of a standard 19-inch rack, consuming no rack unit space. The mounting orientation is vertical, and it is fully rack-mountable with dimensions optimized for data center racks.
What input plug type does this PDU use?
The PDU uses a NEMA L6-30P plug for input connection. This 30-amp, 208V AC plug is commonly used in data center and commercial power configurations, providing a secure and reliable connection for the unit's power input.
What are the physical dimensions of this PDU?
The PDU measures 2.05" in width, 2.10" in depth, and 68.90" in length (approximately 1750 mm). These dimensions are designed for vertical mounting in standard racks, with a 0U rack height that maximizes space efficiency while providing full outlet accessibility.
What power capacity is listed for this UPS?
The listed power specification is 5 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
