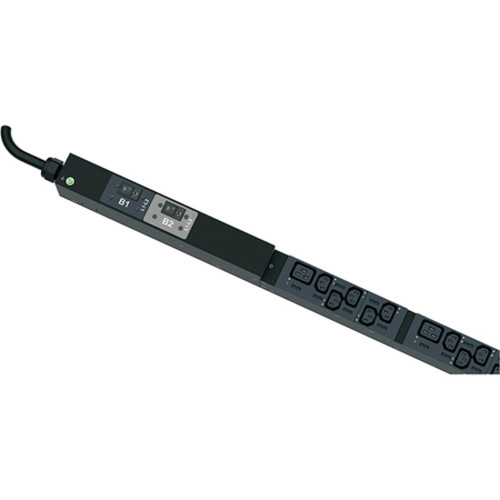

Panduit P36G18M-RD1C SmartZone G5 Intelligent 36-Outlet PDU - Monitored - 208V AC - 5 kW - 30A - NEMA L6-30P - 30x C13 - 6x C19 - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PDU operates on a single-phase 208V AC electrical system, matching input and output voltages to maintain consistent power delivery. The 5 kW (5 VA) power rating and 30A input current handle demanding loads from servers, switches, and other rack equipment. Outlet configuration includes 30 IEC 60320 C13 outlets for standard IT devices and 6 IEC 60320 C19 outlets for high-power equipment, all fed through a NEMA L6-30P plug connector.
Network connectivity via RJ-45 allows for remote monitoring of voltage parameters, supporting proactive power management. The unit is environmentally friendly and complies with Restriction of Hazardous Substances (RoHS) standards. A 3-year limited warranty backs its construction and performance.
This section brings together practical product details such as PDU Type, Phase, Plug/Connector Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The vertical, 0U rack-mountable design installs easily without occupying rack unit space, preserving room for IT hardware. Its 208V AC operation suits modern data center power standards, while RoHS compliance ensures environmentally responsible manufacturing.
High-Density Power Distribution
With 36 outlets in a compact form, this PDU maximizes power access in space-constrained racks, reducing the need for multiple power strips and simplifying cable management.
- 30 C13 outlets for standard devices
- 6 C19 outlets for high-power servers
- Consolidates power feeds efficiently
Intelligent Monitoring Capability
The monitored design enables remote observation of voltage levels, helping IT staff detect anomalies, plan capacity, and prevent downtime through early intervention.
- RJ-45 network interface for connectivity
- Real-time voltage tracking
- Supports single-phase monitoring
Deployment / Use Cases
This PDU suits environments requiring centralized power distribution with monitoring, such as colocation facilities, server rooms, and telecom installations. Its 5 kW capacity handles moderate to high power loads, making it a fit for racks with mixed IT equipment.
Data Center Server Racks
Ideal for powering servers, storage arrays, and networking gear in enterprise data centers, where high outlet density and reliable 208V power are critical for uptime.
- Supports blade servers and switches
- Fits standard 19-inch racks
- Manages power for dense configurations
Network Closets and IDF Rooms
Deploy in intermediate distribution frames or network closets to distribute power to switches, routers, and other networking equipment, leveraging its monitored features for remote oversight.
- Monitors voltage for network stability
- Vertical mounting saves space
- Suitable for single-phase environments
Physical Profile
Designed for vertical mounting in standard 19-inch racks, this PDU has a 0U rack height, meaning it mounts on the rack's vertical rails without consuming rack unit space. Dimensions are 2.05 inches wide, 2.10 inches deep, and 68.90 inches long, providing a slim profile that fits neatly alongside equipment. The vertical orientation optimizes airflow and cable routing in rack enclosures.
- Width
- 2.05" (51.99 mm)
- Depth
- 2.10" (53.34 mm)
- Height
- 0U
- Length
- 68.90" (1750.01 mm)
Highlights
- 36 outlets: 30 IEC C13 and 6 IEC C19 for versatile device connectivity
- Monitored PDU with RJ-45 network interface for remote voltage monitoring
- 208V AC input and output voltage, single-phase operation
- 5 kW (5 VA) power rating with 30A input current
- NEMA L6-30P plug for secure high-power connections
- Vertical rack-mountable design with 0U rack height
- RoHS compliant and environmentally friendly
- 3-year limited warranty for reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P36G18M-RD1C |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MSPO |
| Product Name | SmartZone G5 Intelligent 36-Outlets PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13,6 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 5 VA |
| Power Rating (Watt) | 5 kW |
| Input Current | 30 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.05" (51.99 mm) |
| Depth | 2.10" (53.34 mm) |
| Length | 68.90" (1750.01 mm) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this PDU?
This Panduit PDU has a power rating of 5 kW (5 VA), with an input current of 30A. It operates at 208V AC input and output voltage, making it suitable for distributing power to multiple rack-mounted devices in data center environments.
How many outlets does this PDU have and what types?
The PDU features 36 total outlets: 30 IEC 60320 C13 outlets for standard IT equipment like servers and switches, and 6 IEC 60320 C19 outlets for high-power devices. This mix supports a range of power requirements in a single unit.
What does 'monitored' mean for this PDU?
Monitored indicates this PDU includes remote monitoring capabilities via an RJ-45 network interface. It allows IT staff to track single-phase voltage levels remotely, helping with power management, capacity planning, and early issue detection without physical access.
How is this PDU installed in a rack?
This PDU is designed for vertical mounting on standard 19-inch rack rails, with a 0U rack height that doesn't consume rack unit space. It mounts vertically alongside equipment, optimizing space and airflow. Dimensions are 2.05" wide, 2.10" deep, and 68.90" long.
What plug type does this PDU use?
The PDU uses a NEMA L6-30P plug, which is a locking connector rated for 30A at 208V AC. This plug type ensures a secure, high-power connection suitable for data center and server room applications.
Is this PDU environmentally compliant?
Yes, this PDU is environmentally friendly and complies with the Restriction of Hazardous Substances (RoHS) directive. It also comes with a 3-year limited warranty, supporting its durability and responsible manufacturing.
What power capacity is listed for this UPS?
The listed power specification is 5 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
