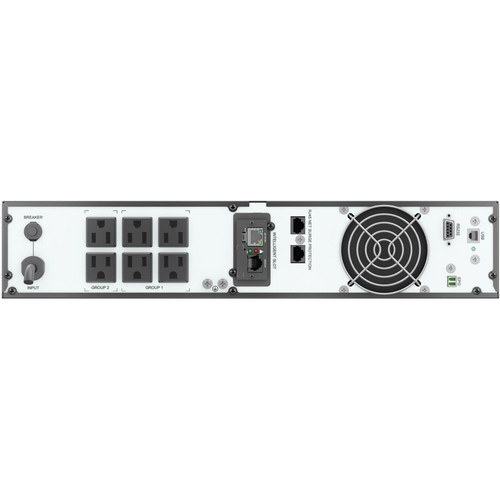

Panduit U01N11L SmartZone 1000VA Line-Interactive UPS - 900W - 2U Rack/Tower - 6 Outlets - Pure Sine Wave - 4-Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SmartZone UPS delivers 1 kVA (900 watts) of active power with an output unity power factor, maximizing usable energy for connected IT loads. The electrical design includes a 6-millisecond transfer time, overload protection, and dataline protection via RJ-45, safeguarding both power and data connections against disturbances.
Management and monitoring are facilitated through a colorful LCD display with four buttons and LED indicators, offering at-a-glance status. Connectivity options include serial, network (RJ-45), USB (HID compliant), and an emergency power off (EPO) port for integrated safety controls. The included SmartZone Cloud Ready software enables remote monitoring and management for distributed deployments.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The U01N11L stands out with its rack/tower convertible design featuring a rotatable LCD, allowing seamless integration into both rack-mounted and standalone tower configurations. Its compact 2U footprint and rail-mountable construction optimize space in crowded server cabinets without sacrificing capacity or functionality.
Intelligent Battery Management
Advanced algorithms and temperature compensation extend battery lifespan to 10 years, while hot-swappable and user-replaceable batteries support maintenance without system shutdown.
- 10-year design life
- Hot-swappable
- LiFePO4 chemistry
High Efficiency & Green Design
Achieving high efficiency reduces energy waste and operational costs. The unit complies with ENERGY STAR 2.0, RoHS, and REACH environmental standards, supporting sustainable IT infrastructure.
- ENERGY STAR 2.0
- RoHS/REACH compliant
- Reduced THD
Deployment / Use Cases
This UPS is purpose-built for environments requiring dependable backup power with flexible installation options. Its 1000VA capacity and six NEMA 5-15R outlets make it ideal for protecting a mix of servers, networking gear, storage devices, and edge computing nodes.
In data center applications, the 2U rack-mountable form factor and rail kit compatibility allow for clean, organized deployments in standard server racks. For smaller server rooms or network closets, the tower configuration provides a stable, standalone solution without dedicated rack space.
Edge Computing & Remote Sites
The wide input voltage range (75-146V AC) and robust construction ensure reliable operation in locations with unstable grid power, protecting critical infrastructure at the edge.
- Wide voltage input
- Compact design
- Remote management
Enterprise IT Equipment
Safeguard servers, switches, routers, and workstations with clean, regulated power. The pure sine wave output prevents compatibility issues with active PFC power supplies common in modern IT hardware.
- 6 outlets
- Pure sine wave
- AVR protection
Physical Profile
The UPS features a sleek black enclosure measuring 3.41" H x 17.32" W x 18.11" D (86.5 x 440 x 460 mm), engineered for a standard 2U rack space. Its compact depth and rail-mountable design facilitate installation in shallow or deep server cabinets. The unit weighs 14.2 kg, providing a stable, vibration-resistant platform for both rack and tower use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.41" (86.50 mm), 17.32" (440 mm), 18.11" (460 mm), 14.20 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.32" (440 mm)
- Depth
- 18.11" (460 mm)
- Height
- 3.41" (86.50 mm)
- Weight
- 14.20 kg
What's in the Box
The package includes the SmartZone U01N11L 1000VA Rack/Tower UPS unit, an intelligent network management card for enhanced monitoring, and access to SmartZone Cloud Ready software for remote management and configuration.
Highlights
- 1000VA/900W line-interactive UPS with pure sine wave output for sensitive IT equipment
- 2U rack/tower convertible design with rotatable LCD display for flexible deployment
- Lithium-Ion (LiFePO4) battery with 10-year life and 4-hour recharge time
- Six NEMA 5-15R outlets provide ample connectivity for servers and networking gear
- Wide input voltage range (75-146V AC) with AVR for stable operation in fluctuating grids
- Includes serial, network, USB, and EPO ports for comprehensive management and safety
- SmartZone Cloud Ready software enables remote monitoring and control
- ENERGY STAR 2.0, RoHS, and REACH compliant for energy-efficient, environmentally friendly operation
- Hot-swappable, user-replaceable batteries support maintenance without downtime
- 5-year warranty covering both the UPS unit and battery for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U01N11L |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U01N11L |
| Product Name | SmartZone U01N11L 1000VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Data Center,IT Equipment,Enterprise,Computer,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 25.6 V DC |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Backup/Run Time With External Battery Cabinet (Full Load) | 9 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 22 Minute |
| Battery Life | 10 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 95 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 18.11" (460 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower,Compact,Rail Mountable |
| Weight (Approximate) | 14.20 kg |
| Miscellaneous | |
| Package Contents | SmartZone U01N11L 1000VA Rack/Tower UPS Intelligent Network Management Card |
| Software Included | SmartZone Cloud Ready |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 Years (UPS & Battery) |
User Manual
FAQ
What is the power capacity of this Panduit UPS?
The Panduit SmartZone U01N11L provides 1000VA (1 kVA) of apparent power and 900 watts of real power. This capacity is suitable for backing up a mix of IT equipment such as servers, networking switches, and storage devices in small to medium deployments.
Can this UPS be used in both rack and tower configurations?
Yes, this UPS features a rack/tower convertible design. It occupies 2U of rack space and includes mounting hardware for standard server racks. The colorful LCD display rotates for optimal viewing in either orientation, and the compact form factor also works well as a standalone tower unit.
What type of battery does this UPS use, and how long does it last?
This UPS utilizes a Lithium-Ion (LiFePO4) battery with a design life of 10 years. The battery is hot-swappable and user-replaceable, allowing for maintenance without powering down connected equipment. A typical full recharge takes approximately 4 hours.
How many devices can I connect to this UPS?
The UPS includes six NEMA 5-15R outlets, allowing you to connect multiple pieces of IT equipment. Each outlet delivers clean, regulated power with pure sine wave output, ensuring compatibility with active PFC power supplies found in modern servers and networking hardware.
What management and monitoring features are available?
Management features include a colorful LCD display with four buttons for local control, plus serial, network (RJ-45), and USB ports for remote monitoring. The included SmartZone Cloud Ready software enables centralized management, and an EPO (Emergency Power Off) port allows for integrated safety shutdowns.
What environmental certifications does this UPS hold?
This UPS is ENERGY STAR 2.0 certified for energy efficiency, reducing operational costs and environmental impact. It also complies with RoHS (Restriction of Hazardous Substances) and REACH regulations, ensuring it meets strict environmental and safety standards for IT equipment.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
