Panduit U01S11V SmartZone 1000VA/1kW Double Conversion Online UPS - 2U Rack/Tower - 6 Outlets - 120V Input - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS maintains continuous power conditioning through its fully digital control system. It accepts a wide input voltage range from 55V to 150V AC, with automatic voltage regulation (AVR) correcting under and over-voltage conditions without switching to battery. The output delivers a regulated 100-125V AC pure sine wave at 60Hz, providing clean power that minimizes risk to modern switching power supplies and active PFC loads.
The unit achieves high efficiency up to 96.5%, reducing operational costs and heat output. Its intelligent battery management employs temperature-compensated charging algorithms to optimize battery life and performance. For monitoring and control, it includes a serial port, USB HID port, network RJ-45 port, and an EPO (Emergency Power Off) interface, enabling integration with existing management systems.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartZone U01S11V combines robust power protection with operational flexibility, making it a strategic choice for IT infrastructure. Its online double conversion design ensures zero transfer time and complete isolation from grid anomalies, providing the highest level of power quality for critical loads.
Flexible Deployment

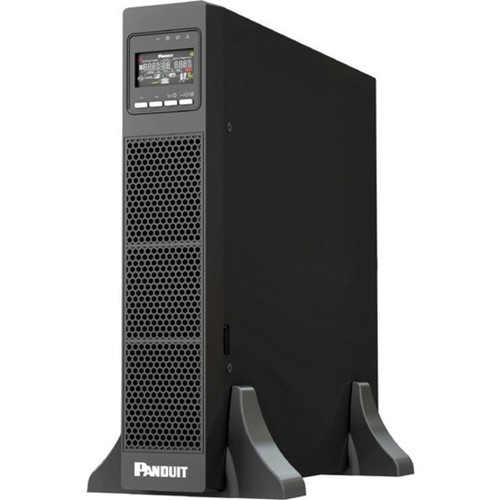

Convertible rack/tower design with rotatable LCD allows installation in server racks or as a standalone tower, adapting to space constraints and monitoring needs.
- 2U rack height
- Rail mountable
- Rotatable display
Expandable Runtime
Supports connection of up to four external battery packs, enabling extended backup duration for longer outages or higher load demands.
- Hot-swappable batteries
- External pack support
- Scalable runtime
Advanced Management
Comprehensive connectivity includes network, USB, and serial ports for remote monitoring, configuration, and integration with power management software.
- Network management
- USB HID
- EPO port
Deployment / Use Cases
This UPS is purpose-built for environments where power continuity is non-negotiable. Its 1kVA capacity and pure sine wave output make it ideal for protecting rack-mounted servers, network switches, storage arrays, and telecommunications equipment in data centers, server rooms, and network closets.
The unit's wide input voltage range and robust design suit edge computing locations and branch offices where power quality may be inconsistent. It also serves well in industrial settings or laboratories housing sensitive analytical instruments that require clean, stable power. The convertible form factor allows IT teams to standardize on a single model for both rack and tower deployments, simplifying procurement and sparing.
Physical Profile

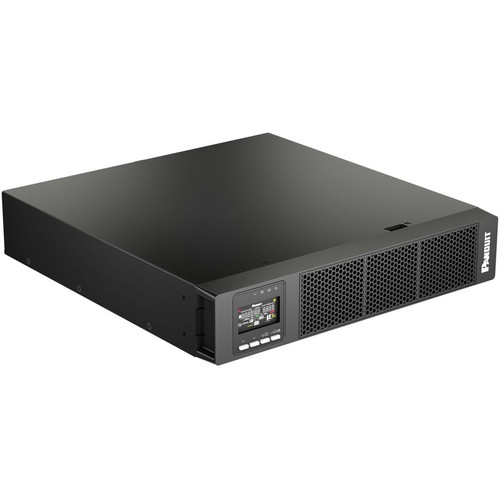

The UPS features a compact 2U rack-mount footprint measuring 3.41" high, 17.32" wide, and 12.80" deep, optimized for standard 19-inch server racks. Its all-black finish blends seamlessly with enterprise hardware. Weighing approximately 36.6 pounds, it is manageable for installation while providing substantial battery capacity. The design includes integrated mounting hardware for rail or shelf installation, and the front-panel LCD can be rotated for readability in either rack or tower orientation.
- Width
- 17.32" (440 mm)
- Depth
- 12.80" (325 mm)
- Height
- 3.41" (86.50 mm)
- Weight
- 36.60 lb (16600 g)
Highlights
- 1000VA/1kW double conversion online UPS with pure sine wave output
- 2U rack/tower convertible design with rotatable colorful LCD display
- Six NEMA 5-15R outlets for connecting multiple devices
- Wide input voltage range (55-150V AC) with automatic voltage regulation
- Hot-swappable, valve-regulated lead-acid batteries with 5-year life
- Supports up to four external battery packs for extended runtime
- High efficiency up to 96.5% reduces energy costs and heat output
- Network, USB, serial, and EPO ports for comprehensive management
- ENERGY STAR 2.0 certified and compliant with RoHS/REACH
- 5-year limited warranty with 3 years on UPS and 2 years on internal battery
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U01S11V |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U01S11V |
| Product Name | SmartZone U01S11V 1000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Data Center,IT Equipment,Enterprise,Computer,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 55 V AC - 150 V AC,100 V AC - 125 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,115 V AC,125 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 36 V DC |
| Number of Batteries | 3 |
| Battery Characteristics | Valve-regulated, Maintenance-free, Hot-swappable |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time With External Battery Cabinet (Full Load) | 6 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 19.10 Minute |
| Battery Life | 5 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 400 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 12.80" (325 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower,Rail Mountable |
| Weight (Approximate) | 36.60 lb (16600 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 3 Years for UPS 2 Years for Internal Battery and EBP |
User Manual
FAQ
What is the power capacity of this UPS?
The Panduit SmartZone U01S11V provides 1000VA (1 kVA) and 1000 watts of power capacity. This rating supports IT equipment loads such as servers, networking gear, and storage devices, delivering clean, regulated power through its double conversion online topology.
Can this UPS be installed in a server rack?
Yes, it is designed for both rack and tower deployment. The unit occupies 2U of rack space and is rail mountable. Its front-panel LCD display rotates for easy viewing whether mounted in a rack or used as a standalone tower.
How many outlets does it have and what type?
It includes six NEMA 5-15R outlets, providing ample connectivity for multiple devices. The input plug is a standard NEMA 5-15P, making it compatible with common North American 120V circuits.
What is the battery recharge time?
The typical battery recharge time is 6 hours. The UPS features intelligent battery management with temperature-compensated charging to optimize battery health and ensure reliable readiness for the next power event.
Does it support external battery expansion?
Yes, the UPS can connect to up to four external battery packs. This expandability allows you to significantly extend backup runtime to meet longer outage requirements or support higher load demands.
What management interfaces are included?
It offers multiple management options: a network RJ-45 port for SNMP/web card integration, a USB HID port for direct computer communication, a serial port for legacy systems, and an EPO (Emergency Power Off) port for safety shutdowns.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
