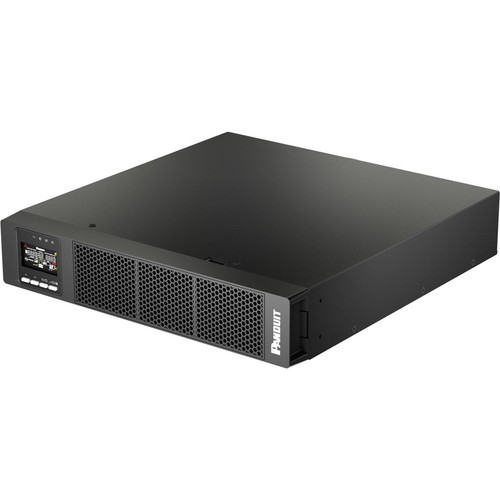

Panduit U02S11L SmartZone 1500VA/1350W Line-Interactive UPS - 2U Rack/Tower - 6 Outlets - AVR - Pure Sine Wave - 4-Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS delivers 1.50 kVA (1.35 kW) of capacity with a wide input voltage range of 75-146 V AC, handling significant grid fluctuations. Output voltage is adjustable across five settings (100-125 V AC) to match load requirements. The transfer time of 6 ms ensures seamless transition during power events, maintaining uptime for connected devices.
The unit incorporates a 48 V DC lithium-ion (LiFePO4) battery system, which offers a 10-year design life and supports hot-swappable, user-replaceable batteries. Intelligent battery management uses temperature-compensated charging algorithms to optimize performance and longevity. Typical recharge to 90% capacity is achieved within 4 hours.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone U02S11L combines high efficiency, intelligent management, and flexible installation to deliver a superior power protection solution. Its design prioritizes operational reliability, ease of maintenance, and environmental compliance for modern IT infrastructure.
High Efficiency Operation
Achieves up to 97% efficiency in line-interactive mode, reducing energy waste and operating costs. ENERGY STAR 2.0 certification confirms its environmentally conscious design.
- Reduces electricity costs
- Lowers thermal output
- ENERGY STAR 2.0 certified
Comprehensive Protection
Provides six NEMA 5-15R outlets, surge protection, and RJ-45 dataline protection to safeguard both power and data connections. The EPO (Emergency Power Off) port allows for rapid shutdown during emergencies.
- 6 protected outlets
- Surge and dataline protection
- EPO safety function
Advanced Battery Management
Lithium-ion (LiFePO4) batteries with a 10-year design life and hot-swappable functionality minimize maintenance downtime. The system includes temperature compensation and optimal charging curves.
- 10-year battery life
- Hot-swappable design
- Intelligent charging
Deployment / Use Cases
This UPS is suited for environments where power quality and uptime are critical. Its rack/tower convertible design and compact footprint make it ideal for space-constrained installations without sacrificing performance.
In data center and server room applications, the unit protects rack-mounted servers, network switches, and storage arrays. For edge computing and remote office locations, its wide input voltage range handles unstable grid power, while the pure sine wave output supports sensitive networking equipment. Enterprise IT deployments benefit from the serial, network, and USB management ports for integration with monitoring software.
Data Center & Server Room
Provides backup power for critical servers and networking gear in rack-mount configurations. The 2U height optimizes rack space utilization.
Edge Computing & Remote Sites
Handles voltage fluctuations common in remote locations, ensuring reliable operation for IoT devices, branch office equipment, and telecommunications infrastructure.
Physical Profile
The UPS features a black chassis with dimensions of 3.41" H x 17.32" W x 18.11" D (86.5 x 440 x 460 mm), fitting a standard 2U rack space. Its compact, rail-mountable design simplifies installation in server racks, while the tower configuration offers standalone flexibility. Weighing 17.10 kg, the unit is manageable for one-person deployment. The operating temperature range extends to 104°F (40°C), with sound emission rated at 55 dB for quiet operation in office environments.
- Width
- 17.32" (440 mm)
- Depth
- 18.11" (460 mm)
- Height
- 3.41" (86.50 mm)
- Weight
- 17.10 kg
Highlights
- 1500VA/1350W line-interactive UPS with AVR for stable power output
- Rack/tower convertible 2U design with rail-mount capability
- 6 x NEMA 5-15R outlets with surge and dataline protection
- Pure sine wave output compatible with sensitive electronics
- Lithium-ion (LiFePO4) battery with 10-year design life and hot-swappable functionality
- Colorful LCD display with four buttons and LED indicators for intuitive monitoring
- Management via serial, network (RJ-45), USB, and EPO ports
- High efficiency up to 97%, ENERGY STAR 2.0 certified
- Wide input voltage range (75-146 V AC) for unstable grid conditions
- 5-year warranty covering both UPS and battery
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U02S11L |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U02S11L |
| Product Name | SmartZone U02S11L 1500VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Data Center,IT Equipment,Enterprise,Computer,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 48 V DC |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Backup/Run Time With External Battery Cabinet (Full Load) | 7.50 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 19 Minute |
| Battery Life | 10 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 142 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 18.11" (460 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower,Compact,Rail Mountable |
| Weight (Approximate) | 17.10 kg |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 Years (UPS & Battery) |
User Manual
FAQ
What is the power capacity of the Panduit SmartZone U02S11L UPS?
This UPS has a load capacity of 1.50 kVA (1500 VA) and 1.35 kW (1350 watts). It is a line-interactive model designed to protect critical IT equipment like servers, networking gear, and storage systems from power disturbances and outages.
Can this UPS be installed in both rack and tower configurations?
Yes, the SmartZone U02S11L is a rack/tower convertible unit. It occupies 2U of rack space and includes rail-mount hardware for standard server racks. Alternatively, it can be deployed as a standalone tower, offering flexibility for various IT environments including data centers, server rooms, and edge computing sites.
How many outlets does this UPS provide and what type are they?
The UPS features six NEMA 5-15R outlets, all protected against surges and overloads. These standard North American outlets are suitable for plugging in servers, switches, monitors, and other IT equipment. The unit also includes an RJ-45 port for dataline protection to safeguard network connections.
What type of battery does this UPS use and how long does it last?
It uses a lithium-ion (LiFePO4) battery system with a 48 V DC configuration. The battery has a design life of 10 years and is hot-swappable, allowing for replacement without powering down connected equipment. Typical recharge time to 90% capacity is 4 hours.
What management and monitoring options are available?
The UPS includes a colorful LCD display with four buttons and LED indicators for local status monitoring and control. For remote management, it offers a serial port, network (RJ-45) port, and a USB (HID compliant) port for integration with power management software. An EPO (Emergency Power Off) port is also provided for safety shutdowns.
Is this UPS energy efficient and environmentally compliant?
Yes, it achieves up to 97% efficiency in line-interactive mode, reducing energy consumption and heat output. It is ENERGY STAR 2.0 certified and complies with RoHS and REACH environmental standards, making it a green choice for sustainable IT operations.
What power capacity is listed for this UPS?
The listed power specification is 1.50 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
