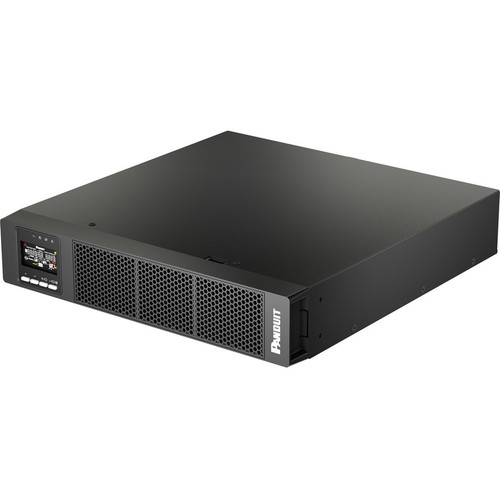

Panduit U02S11V SmartZone 2000VA/2kW Double Conversion Online UPS - 2U Rack/Tower - 6 Outlets - Pure Sine Wave - 120V AC Input
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This online double conversion UPS maintains consistent power quality by continuously converting incoming AC to DC and back to AC, isolating connected equipment from grid disturbances. The fully digital control system ensures stable output with minimal ripple, while the wide input voltage range of 55-150 VAC handles significant voltage fluctuations without switching to battery.
The unit achieves high efficiency up to 96.5%, reducing energy waste and operational costs. Input power factor correction minimizes total harmonic distortion, and output unity power factor maximizes usable power for IT loads. Intelligent Battery Management employs temperature-compensated charging algorithms to optimize battery health and extend service life.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartZone U02S11V combines robust power protection with operational flexibility and intelligent management. Its rack/tower convertible design with rail-mount capability simplifies integration into data centers, server rooms, or edge locations, while the hot-swappable, maintenance-free batteries support uninterrupted uptime during maintenance.
Expandable Runtime
Connect up to four external battery packs to significantly extend backup duration, providing scalable runtime for extended outages or higher load demands.
- Supports external battery expansion
- Hot-swappable battery design
- Scalable backup capacity
Comprehensive Protection
Beyond battery backup, the UPS includes dataline protection via RJ-45, overload protection, and surge suppression to safeguard both power and data connections.
- RJ-45 dataline protection
- Overload protection
- Automatic Voltage Regulation (AVR)
Deployment / Use Cases
This UPS is ideal for protecting critical IT infrastructure where power quality and uptime are non-negotiable. Its 2kVA capacity and pure sine wave output make it suitable for servers, storage arrays, network switches, and other sensitive electronics in small to medium server rooms.
The rack/tower flexibility allows deployment in standard 19-inch racks for consolidated data center environments or as a standalone tower in network closets or edge computing sites. Applications include data centers, enterprise IT equipment, computer systems, and edge computing nodes requiring reliable backup during grid instability or outages.
Data Center Rack Deployment
Install in a standard 19-inch rack using included rails, conserving space while providing centralized power protection for rack-mounted servers and networking gear.
Edge & Remote Site Protection
Deploy as a tower unit in network closets or remote locations, offering robust backup for edge computing equipment with easy front-panel monitoring via the colorful LCD.
Physical Profile
The UPS features a compact 2U rack-height design measuring 3.41" (86.50 mm) in height, 17.32" (440 mm) in width, and 18.11" (460 mm) in depth, with a weight of approximately 44.09 lb (20000 g). Its black finish blends seamlessly with standard rack equipment, and the rail-mountable form factor ensures secure installation in rack enclosures. The rotatable LCD display provides clear status indicators and controls regardless of mounting orientation.
- Width
- 17.32" (440 mm)
- Depth
- 18.11" (460 mm)
- Height
- 3.41" (86.50 mm)
- Weight
- 44.09 lb (20000 g)
Highlights
- 2000VA/2kW double conversion online UPS with pure sine wave output
- 2U rack/tower convertible design with rail-mount capability
- Six NEMA 5-20R outlets for connecting multiple IT devices
- Wide input voltage range (55-150 VAC) handles grid fluctuations
- High efficiency up to 96.5% reduces energy costs
- Hot-swappable, maintenance-free VRLA batteries with 5-year life
- Expandable with up to four external battery packs for extended runtime
- Colorful LCD with four buttons and LED indicators for easy monitoring
- Includes serial, network (RJ-45), EPO, and USB (HID) ports for management
- ENERGY STAR 2.0 certified and compliant with RoHS and REACH
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U02S11V |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U02S11V |
| Product Name | SmartZone U02S11V 2000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 6 x NEMA 5-20R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Data Center,IT Equipment,Enterprise,Computer,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 2 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 55 V AC - 150 V AC,100 V AC - 125 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,115 V AC,125 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 48 V DC |
| Number of Batteries | 4 |
| Battery Characteristics | Valve-regulated, Maintenance-free, Hot-swappable |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time With External Battery Cabinet (Full Load) | 4.28 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 13.50 Minute |
| Battery Life | 5 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 534 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 18.11" (460 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower,Rail Mountable |
| Weight (Approximate) | 44.09 lb (20000 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 3 Years for UPS 2 Years for Internal Battery and EBP |
User Manual
FAQ
What is the power capacity of the Panduit SmartZone U02S11V UPS?
The UPS has a load capacity of 2000VA (2 kVA) and 2000 watts (2 kW), making it suitable for protecting servers, networking equipment, and other critical IT loads in small to medium deployments.
Can this UPS be installed in both rack and tower configurations?
Yes, the SmartZone U02S11V is designed as a rack/tower convertible unit. It supports 2U rack-mount installation with included rails or can be used as a standalone tower, featuring a rotatable colorful LCD for easy viewing in either orientation.
How many outlets does the UPS provide and what type are they?
It includes six NEMA 5-20R outlets, allowing you to connect multiple devices such as servers, switches, and storage units. The input plug is a NEMA 5-20P, compatible with standard 120V AC circuits.
What is the typical battery recharge time for this UPS?
The typical battery recharge time is 6 hours. The unit uses four valve-regulated, maintenance-free, hot-swappable sealed lead-acid (VRLA) batteries with a 5-year battery life and intelligent management to optimize charging.
Does this UPS support external battery expansion for longer runtime?
Yes, the UPS can connect to a maximum of four external battery packs, significantly extending the backup running time to meet demands for prolonged outages or higher load scenarios.
What management and monitoring interfaces are available on the UPS?
The UPS includes a serial port, network (RJ-45) port, EPO (Emergency Power Off) port, and a USB (HID compliant) port for integration with management software. The front panel features a colorful LCD with four buttons and LED indicators for local status monitoring.
What power capacity is listed for this UPS?
The listed power specification is 2 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
