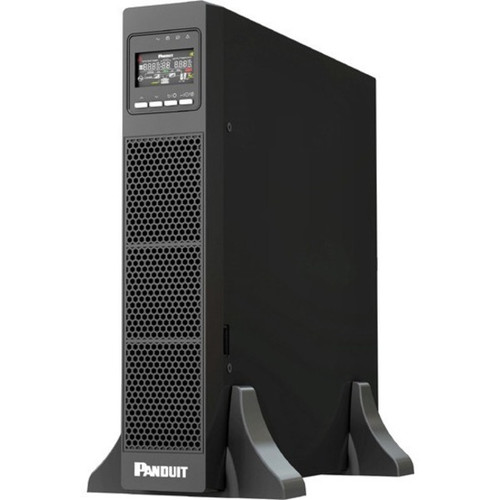

Panduit U03N11L SmartZone 3000VA Line-Interactive UPS - 2U Rack/Tower/Compact - 120V AC - AVR - Pure Sine Wave - 3 kVA / 2. 7 kW
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates on a 120 V AC single-phase input with a wide voltage range of 75-146 V AC, providing robust protection against brownouts and overvoltage conditions. Output is regulated to a pure sine wave across 100-125 V AC, compatible with active PFC power supplies in servers, storage, and networking gear.
The unit includes comprehensive protection features: RJ-45 dataline protection, overload protection, and a 6 ms transfer time for seamless battery backup during outages. Its DC system operates at 76.8 V DC using a long-life Lithium-Ion (LiFePO4) battery that is hot-swappable and replaceable, backed by a 10-year battery life expectancy. Management interfaces include serial, network (RJ-45), EPO, and USB (HID compliant) ports for integration with monitoring systems.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartZone U03N11L combines industrial-grade power protection with user-centric design. Its rotatable LCD with four buttons and LED indicators offers intuitive local control, while the EPO (Emergency Power Off) function allows rapid shutdown during emergencies. The wide input voltage range ensures reliable operation in areas with unstable grid power, making it suitable for severe fluctuation conditions.
High Efficiency & Energy Savings
Achieves up to 97% efficiency in line-interactive mode, reducing energy waste and operating costs. Output unity power factor delivers more active power to IT loads, while input power factor correction minimizes total harmonic distortion (THD).
- ENERGY STAR 2.0 certified
- RoHS and REACH compliant
- Green design reduces environmental impact
Intelligent Battery Management
Advanced algorithms with temperature compensation optimize charging curves to extend battery lifespan. The hot-swappable, replaceable Lithium-Ion (LiFePO4) battery supports 10-year life and 4-hour typical recharge time.
- 10-year battery life
- Hot-swappable design
- 4-hour recharge
Deployment / Use Cases
This UPS is engineered for applications requiring dependable power quality and runtime. It supports external battery cabinets to extend backup duration, with runtime of 9 minutes at full load and 22 minutes at half load when using an external cabinet. Typical use cases include enterprise server rooms, network closets, edge computing sites, and any environment where IT equipment must remain operational during short-term outages.
The unit’s environmental tolerance—operating up to 104°F (40°C) and 9842.52 ft elevation—ensures reliability in challenging conditions. Sound emission is limited to 55 dB, and thermal dissipation is 334 BTU/h, making it suitable for noise- and heat-sensitive installations.
Data Center & Server Room Backup
Protect rack-mounted servers, storage arrays, and network switches from power interruptions, surges, and voltage fluctuations. The 2U form factor fits standard server racks, and rail mounting simplifies installation in dense environments.
Edge Computing & IT Equipment
Provide clean, regulated power for remote IT equipment, telecommunications gear, and industrial control systems. The compact/tower option supports standalone deployment where rack space is limited.
Physical Profile
The UPS features a black chassis with dimensions of 3.41" (86.50 mm) height, 17.32" (440 mm) width, and 25.20" (640 mm) depth, occupying 2U of rack space. Its weight of approximately 31 kg includes the internal Lithium-Ion battery. The form factor supports rack, tower, or compact placement, with included rails for secure rack mounting. The rotatable LCD display adjusts for readability in any orientation, enhancing usability in tight spaces.
- Width
- 17.32" (440 mm)
- Depth
- 25.20" (640 mm)
- Height
- 3.41" (86.50 mm)
- Weight
- 31 kg
What's in the Box
The package includes the SmartZone U03N11L 3000VA Rack/Tower/Compact UPS unit, an intelligent network management card pre-installed for remote monitoring, and SmartZone Cloud Ready software for cloud-based management. All necessary components for rack or tower deployment are provided.
Highlights
- 3000VA / 2.7 kW line-interactive UPS with AVR and pure sine wave output
- 2U rack/tower/compact form factor with rail-mount capability
- Lithium-Ion (LiFePO4) battery with 10-year life and hot-swappable design
- Wide input voltage range (75-146 V AC) for unstable grid conditions
- Rotatable colorful LCD display with four buttons and LED indicators
- Network (RJ-45), USB, serial, and EPO ports for management
- ENERGY STAR 2.0 certified with up to 97% efficiency
- 5-year warranty covering both UPS and battery
- Includes intelligent network management card and cloud-ready software
- Supports external battery cabinets for extended runtime
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U03N11L |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U03N11L |
| Product Name | SmartZone U03N11L 3000VA Rack/Tower/Compact UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |

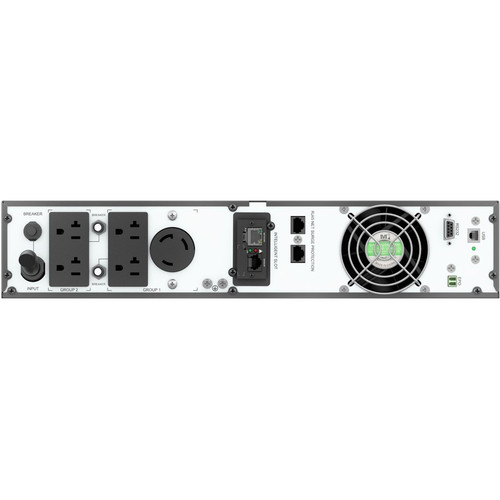

| Receptacle Type | NEMA L5-30R,NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-30R,2 x NEMA 5-20R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Data Center,IT Equipment,Enterprise,Computer,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 76.8 V DC |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Backup/Run Time With External Battery Cabinet (Full Load) | 9 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 22 Minute |
| Battery Life | 10 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 334 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 25.20" (640 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower/Compact,Rail Mountable |
| Weight (Approximate) | 31 kg |
| Miscellaneous | |
| Package Contents | SmartZone U03N11L 3000VA Rack/Tower/Compact UPS Intelligent Network Management Card |
| Software Included | SmartZone Cloud Ready |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 Years (UPS & Battery) |
User Manual
FAQ
What is the power capacity of the Panduit SmartZone U03N11L UPS?
The UPS provides 3000VA (3 kVA) and 2700 watts (2.7 kW) of power capacity. This rating supports IT equipment loads such as servers, network switches, and storage devices within its output limits, ensuring reliable backup during power interruptions.
What type of battery does this UPS use, and how long does it last?
It uses a Lithium-Ion (LiFePO4) battery with a 10-year expected life under normal conditions. The battery is hot-swappable and replaceable, allowing for maintenance without downtime. Typical recharge time after a full discharge is 4 hours.
Can this UPS be installed in a server rack?
Yes, it is designed for 2U rack mounting with included rails, and also supports tower or compact standalone placement. The form factor is explicitly rack/tower/convertible, making it versatile for data centers, server rooms, or edge locations.
What input voltage does the UPS require, and what output does it provide?
Input voltage is 120 V AC with a wide range of 75-146 V AC for brownout and overvoltage protection. Output is a regulated pure sine wave between 100-125 V AC at 60 Hz, compatible with active PFC power supplies in modern IT equipment.
What management and monitoring features are included?
The unit includes a colorful LCD display with buttons for local control, plus serial, network (RJ-45), USB (HID compliant), and EPO ports. An intelligent network management card is pre-installed, and SmartZone Cloud Ready software enables remote monitoring and management via cloud platforms.
What is the warranty coverage for this UPS?
Panduit provides a 5-year limited warranty that covers both the UPS unit and its Lithium-Ion battery. This comprehensive warranty ensures long-term reliability and support for critical power protection applications.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
