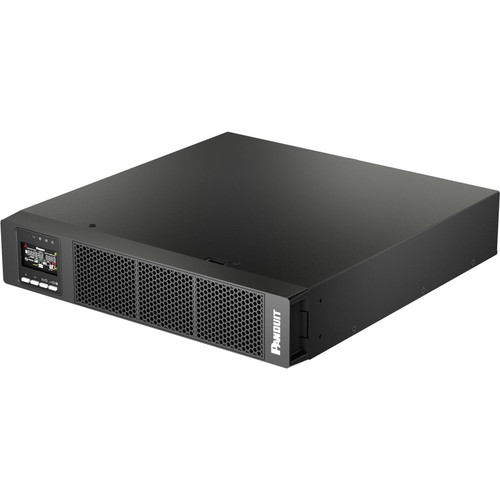

Panduit U03S11L SmartZone 3000VA Line-Interactive UPS - 2U Rack/Tower/Compact - 120V AC - Pure Sine Wave - 4-Hour Recharge
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS delivers 3 kVA (2.70 kW) of power capacity with 120V AC input and a wide input voltage range of 75-146V AC. Output voltage adjusts across 100-125V AC to maintain stable power delivery, while 60Hz input and output frequencies ensure compatibility with standard North American equipment.

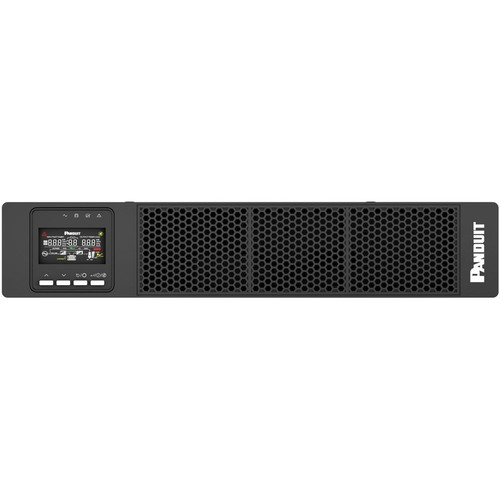

The unit features a 76.8V DC lithium-ion (LiFePO4) battery system that supports hot-swappable and replaceable battery modules. Transfer time is 6ms with overload protection and dataline protection via RJ-45. The colorful LCD with four buttons and LED indicators provides comprehensive status monitoring and control.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SmartZone U03S11L combines high-efficiency power protection with intelligent management features for enterprise environments. Its flexible form factor and advanced battery technology deliver reliable performance across diverse deployment scenarios.
Intelligent Battery Management
Advanced algorithms with temperature compensation optimize charging curves to extend battery life to 10 years while supporting hot-swappable replacement.
- 10-year battery life
- Hot-swappable design
- 4-hour typical recharge
Flexible Deployment Options

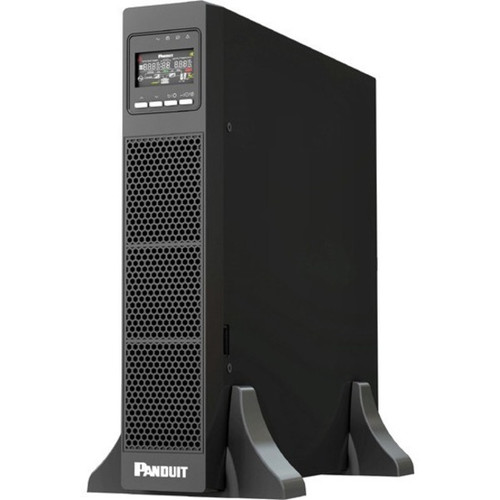

Convertible rack/tower/compact design with rotatable LCD display adapts to server rooms, network closets, or edge locations.
- 2U rack height
- Rail mountable
- 31 kg weight
Comprehensive Protection
Automatic voltage regulation, pure sine wave output, and dataline protection safeguard connected equipment from power disturbances.
- AVR technology
- Pure sine wave
- RJ-45 dataline protection
Deployment / Use Cases
This 3000VA UPS is engineered for critical IT infrastructure requiring reliable backup power. Its combination of power capacity, management features, and flexible form factor makes it suitable for protecting servers, networking equipment, and edge computing devices.
In data center environments, the 2U rack-mountable design integrates seamlessly into standard server cabinets while providing sufficient runtime for graceful shutdowns. For enterprise server rooms, the tower configuration offers standalone protection for equipment racks. Edge computing locations benefit from the compact form factor and wide input voltage range that accommodates fluctuating power conditions.
Data Center Protection
Provides backup power for server racks with 2U space efficiency, EPO port for emergency shutdown, and network management capabilities.
Edge Computing Support
Delivers reliable power in remote locations with wide 75-146V AC input voltage range and compact deployment options.
Physical Profile
The black chassis measures 3.41" (86.50 mm) in height, 17.32" (440 mm) in width, and 25.20" (640 mm) in depth, occupying 2U of rack space. The 31 kg weight provides stability in both rack and tower configurations, while rail mounting hardware supports secure installation in standard server cabinets.
- Width
- 17.32" (440 mm)
- Depth
- 25.20" (640 mm)
- Height
- 3.41" (86.50 mm)
- Weight
- 31 kg
Highlights
- 3000VA (2.70 kW) line-interactive UPS with AVR and pure sine wave output
- Flexible 2U rack/tower/compact form factor with rail mounting capability
- Lithium-ion (LiFePO4) battery with 10-year life and 4-hour typical recharge
- Wide input voltage range (75-146V AC) for fluctuating power conditions
- Colorful LCD display with four buttons and LED status indicators
- Network (RJ-45), USB, serial, and EPO ports for comprehensive management
- Hot-swappable and replaceable battery design for minimal downtime
- ENERGY STAR 2.0 certified with RoHS and REACH environmental compliance
- 5-year warranty covering both UPS unit and battery components
- Supports data center, enterprise, and edge computing applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U03S11L |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U03S11L |
| Product Name | SmartZone U03S11L 3000VA Rack/Tower/Compact UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |

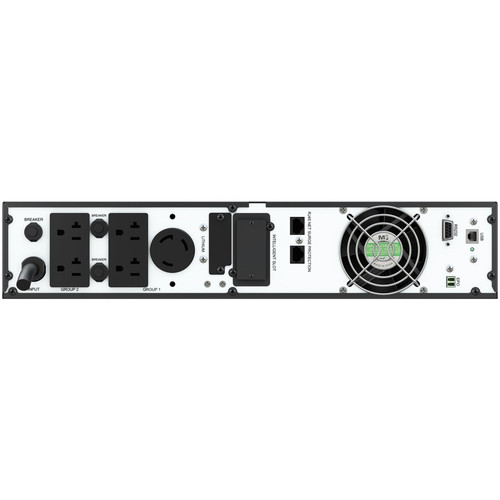

| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30R,NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-30R,2 x NEMA 5-20R |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Data Center,IT Equipment,Enterprise,Computer,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage | 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 76.8 V DC |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Backup/Run Time With External Battery Cabinet (Full Load) | 9 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 22 Minute |
| Battery Life | 10 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 334 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.41" (86.50 mm) |
| Width | 17.32" (440 mm) |
| Depth | 25.20" (640 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower/Compact,Rail Mountable |
| Weight (Approximate) | 31 kg |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 Years (UPS & Battery) |
User Manual
FAQ
What is the power capacity of this Panduit UPS?
The Panduit SmartZone U03S11L provides 3000VA (3 kVA) of apparent power capacity, which translates to 2700 watts of real power. This capacity supports typical server racks, networking equipment, and edge computing devices requiring reliable backup power protection.
What type of battery does this UPS use and how long does it last?
This UPS utilizes lithium-ion (LiFePO4) battery chemistry with an expected service life of 10 years. The batteries are hot-swappable and replaceable, allowing for maintenance without system downtime. Typical recharge time after a discharge event is approximately 4 hours.
Can this UPS be installed in a server rack?
Yes, the U03S11L is designed for flexible deployment including 2U rack mounting with rail mounting hardware. It also functions as a tower or compact unit, making it suitable for data centers, server rooms, and edge locations where space optimization is important.
What input voltage does this UPS require?
The UPS operates on standard 120V AC input with a wide input voltage range of 75-146V AC. This range accommodates power fluctuations common in various electrical environments while maintaining stable output voltage between 100-125V AC for connected equipment.
What management interfaces are available on this UPS?
Management interfaces include network (RJ-45), USB (HID compliant), serial, and EPO (Emergency Power Off) ports. The colorful LCD display with four buttons and LED indicators provides local monitoring and control, while network connectivity enables remote management capabilities.
What is the warranty coverage for this UPS?
Panduit provides a 5-year limited warranty covering both the UPS unit and battery components. This comprehensive warranty reflects the product's reliability and supports long-term deployment in business-critical environments where uninterrupted power protection is essential.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
