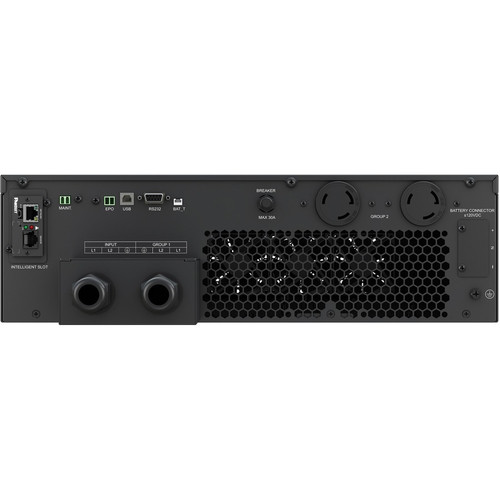

Panduit U06N11V SmartZone 6000VA/6kW Double Conversion Online UPS - 2U Rack/Tower - Rail Mountable - AVR - 6 Hour Recharge - 120/230V AC Input
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates on a single-phase system with a wide input voltage range of 110-285V AC, accommodating fluctuating grid conditions. It outputs 208/240V AC at 60Hz with a pure sine wave, compatible with modern IT loads. The unit includes comprehensive protection features such as RJ-45 dataline protection, overload protection, and a 600 J surge energy rating.
The battery subsystem comprises 20 valve-regulated, maintenance-free, hot-swappable sealed lead-acid (VRLA) batteries, each 12V with 9000 mAh capacity. Intelligent Battery Management employs a three-stage charging method with temperature compensation to optimize battery life. Connectivity options include network (RJ-45), USB HID-compliant, serial, and EPO ports for integration into management systems.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartZone U06N11V stands out with its rack/tower convertible design, allowing installation flexibility in diverse environments. Its online double conversion technology provides isolation from input power anomalies, ensuring consistent output quality. The high efficiency of up to 98% reduces energy waste and operational costs, while the output unity power factor maximizes active power delivery to connected IT equipment.
Expandable Runtime
Supports up to five external battery packs, enabling extended backup times to meet specific runtime requirements without replacing the core unit.
- Scalable battery expansion
- Customizable runtime
- Hot-swappable batteries
Advanced Management
Includes SmartZone Cloud Ready software and an intelligent network management card for remote monitoring, configuration, and proactive maintenance.
- Cloud-ready software
- Network management card
- Remote monitoring
Deployment / Use Cases
Ideal for data centers, server rooms, and edge computing sites, this UPS safeguards critical IT equipment against power outages, surges, and fluctuations. Its 2U form factor and rail-mountable design make it suitable for standard server racks, while the tower configuration offers standalone deployment in smaller offices or network closets.
The unit's wide input voltage range and robust construction support operation in environments with unstable power grids. Applications include protecting servers, storage arrays, networking gear, and telecommunications equipment, ensuring business continuity and minimizing downtime risks.
Data Center Protection
Provides reliable backup for rack-mounted servers and switches, with management features integrating into existing DCIM tools.
Edge Computing Support
Suitable for remote or harsh environments due to its wide voltage tolerance and durable design, protecting IoT and edge devices.
Physical Profile
The UPS features a black chassis with dimensions of 5.16" (131 mm) height, 17.32" (440 mm) width, and 26.22" (666 mm) depth, occupying 2U of rack space. Its rail-mountable design simplifies installation in standard 19-inch racks, and the convertible form factor allows easy transition between rack and tower modes. The compact footprint optimizes space utilization in crowded data centers while maintaining accessibility for maintenance.
- Width
- 17.32" (440 mm)
- Depth
- 26.22" (666 mm)
- Height
- 5.16" (131 mm)
What's in the Box
The package includes the SmartZone U06N11V 6000VA Rack/Tower UPS unit, an intelligent network management card, and SmartZone Cloud Ready software. All necessary components for initial setup and management are provided.
Highlights
- 6000VA/6kW Double Conversion Online UPS with pure sine wave output
- 2U rack/tower convertible design with rail-mountable chassis
- Automatic voltage regulation (AVR) and 0 ns transfer time
- Wide input voltage range: 110-285V AC for unstable grid conditions
- Up to 98% efficiency, reducing energy costs and heat output
- Expandable with up to five external battery packs for extended runtime
- Hot-swappable, maintenance-free VRLA batteries with 5-year life
- Colorful LCD touchscreen with four buttons for intuitive control
- Network, USB, serial, and EPO ports for comprehensive management
- ENERGY STAR 2.0 certified and RoHS/REACH compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U06N11V |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U06N11V |
| Product Name | SmartZone U06N11V 6000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Receptacle Type | NEMA L6-30R,Hard Wire 3-wire (2PH + G) |
| Receptacle Detail | 2 x NEMA L6-30 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Data Center,IT Equipment,Computer,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 110 V AC - 285 V AC,176 V AC - 264 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 600 J |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with four buttons and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 240 V DC |
| Number of Batteries | 20 |
| Battery Characteristics | Valve-regulated, Maintenance-free, Hot-swappable |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time With External Battery Cabinet (Full Load) | 9.70 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 25.30 Minute |
| Battery Life | 5 Year |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 55 dB |
| Thermal Dissipation | 1423 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 5.16" (131 mm) |
| Width | 17.32" (440 mm) |
| Depth | 26.22" (666 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower,Rail Mountable |
| Miscellaneous | |
| Package Contents | SmartZone U06N11V 6000VA Rack/Tower UPS Intelligent Network Management Card |
| Software Included | SmartZone Cloud Ready |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years for UPS & EBP 2 Years for Battery |
User Manual
FAQ
What is the power capacity of the Panduit SmartZone U06N11V UPS?
The UPS has a load capacity of 6 kVA (6000VA) and 6 kW, making it suitable for protecting medium to large IT loads such as servers, storage systems, and networking equipment in data center or edge computing environments.
Can this UPS be installed in both rack and tower configurations?
Yes, the SmartZone U06N11V is designed as a rack/tower convertible unit. It occupies 2U of rack space and includes rail-mountable hardware for standard 19-inch racks, but can also be deployed as a standalone tower for flexibility in various installation scenarios.
How long does it take to recharge the batteries after a power outage?
The typical battery recharge time is 6 hours. This allows the UPS to restore full backup capacity efficiently after a discharge, supported by its intelligent three-stage charging system that optimizes battery health and longevity.
What management and connectivity options are available?
The UPS includes a network (RJ-45) port, USB HID-compliant port, serial port, and EPO port. It comes with an intelligent network management card and SmartZone Cloud Ready software for remote monitoring, configuration, and integration into power management systems.
Is the battery system hot-swappable and expandable?
Yes, the batteries are hot-swappable, allowing replacement without shutting down the UPS. The system supports connection of up to five external battery packs to extend runtime, providing scalability for growing backup needs or longer outage protection.
What warranties are provided with this UPS?
The UPS includes a 3-year limited warranty for the unit and external battery packs (EBP), with a 2-year warranty for the batteries. This coverage ensures reliable support for critical power protection applications.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
