Panduit U10N11V SmartZone 10000VA/10kW Double Conversion Online UPS - Rack/Tower/Rail 6U - AVR - 120/230V AC Input - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS provides complete isolation from raw utility power by continuously converting AC input to DC and then back to a clean AC output. The topology ensures output voltage and frequency stability regardless of input conditions, with automatic voltage regulation (AVR) correcting for brownouts and overvoltages without switching to battery.
The unit supports a wide input voltage range from 110V AC to 285V AC, accommodating severe grid fluctuations. It delivers a pure sine wave output at 208V AC or 240V AC, compatible with active PFC power supplies found in modern servers and networking gear. The system includes comprehensive protection with 600 J surge energy rating, overload protection, and a 0 ns transfer time for seamless backup.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SmartZone U10N11V combines high power capacity with intelligent features designed for efficiency, manageability, and extended runtime. Its online double conversion technology provides the highest level of power conditioning, while the modular design supports scalable battery expansion for growing backup requirements.
High Efficiency Operation
Achieves up to 98% efficiency, reducing energy waste and operational electricity costs. The Smart ECO mode further optimizes power usage for online double conversion models.
- Up to 98% efficiency
- Smart ECO mode
- Reduced thermal dissipation
Advanced Battery Management
Incorporates intelligent battery management with a three-stage charging algorithm and temperature compensation to prolong battery life. Batteries are hot-swappable, valve-regulated, and maintenance-free.
- Three-stage charging
- Temperature-compensated
- Hot-swappable batteries
Expandable Runtime
Supports connection of up to five external battery packs, significantly extending backup runtime to meet extended outage requirements or support higher load capacities.
- Five external packs
- Extended runtime
- Scalable capacity
Deployment / Use Cases
This 10 kVA UPS is suited for protecting medium-density server racks, network equipment clusters, and critical edge computing nodes where power quality and availability are non-negotiable. Its 6U rackmount footprint fits standard server cabinets, while the tower configuration offers flexibility for locations without rack infrastructure.
Typical applications include securing IT equipment in data centers, server rooms, and telecommunications facilities. The unit's wide input voltage range and robust design also make it applicable for industrial environments and locations with unstable power grids, ensuring continuous operation for computer systems, storage arrays, and networking hardware.
Data Center Rack Deployment
Install as a 6U rackmount unit within a server cabinet to provide dedicated power protection for a rack of servers, switches, and storage devices, with clean sine wave output for sensitive electronics.
Edge Computing & Remote Sites
Deploy in tower format at remote or branch offices, industrial sites, or telecommunications closets where space is constrained and power quality may be poor, ensuring uptime for critical network and computing infrastructure.
Physical Profile

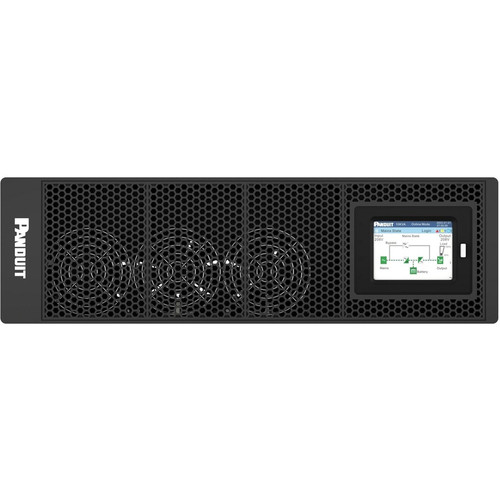

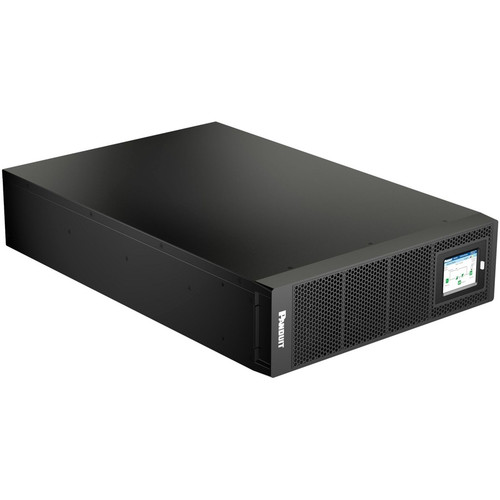

The UPS features a black chassis with a rotatable colorful touchscreen LCD panel for intuitive status monitoring and control. Its compact dimensions of 5.16" height, 17.32" width, and 26.22" depth allow it to fit standard 19-inch rack enclosures as a 6U unit. The approximate weight is 191.80 lb, reflecting its robust internal components and battery bank. The design includes integrated handles and mounting hardware for secure rack installation or stable tower placement.
- Width
- 17.32" (440 mm)
- Depth
- 26.22" (666 mm)
- Height
- 6U
- Weight
- 191.80 lb (87000 g)
Highlights
- 10000VA/10kW double conversion online UPS with pure sine wave output
- Rack/tower/rail convertible form factor with 6U rack height
- Wide input voltage range 110-285V AC for unstable power environments
- Zero transfer time and automatic voltage regulation (AVR)
- Hot-swappable, maintenance-free batteries with intelligent management
- Expandable with up to five external battery packs for extended runtime
- Colorful LCD touchscreen with cold start button and LED indicators
- High efficiency up to 98% with Smart ECO mode for energy savings
- Includes serial, USB HID, and EPO ports for monitoring and control
- ENERGY STAR 2.0 certified and compliant with RoHS and REACH
Specifications
| Specifications | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U10N11V |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U10N11V |
| Product Name | SmartZone U10N11V 10000VA Rack/Tower/Rail UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Receptacle Type | NEMA L6-30R |
| Receptacle Detail | 2 x NEMA L6-30R |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| Phase | Single Phase |
| Application/Usage | Computer,IT Equipment,Data Center,Edge Computing |
| Power Description | |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 110 V AC - 285 V AC,185 V AC - 264 V AC |
| Output Voltage | 208 V AC,240 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 600 J |
| Management | |
| Alarm | Yes |
| Controls/Indicators | |
| Status Indicators | Colorful LCD with cold start button and LED indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 240 V DC |
| Number of Batteries | 20 |
| Battery Characteristics | Valve-regulated/Maintenance-free/Hot-swappable |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 12.90 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Sound Emission | 58 dB |
| Thermal Dissipation | 1985 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower/Rail |
| Rack Height | 6U |
| Height | 5.16" (131 mm) |
| Width | 17.32" (440 mm) |
| Depth | 26.22" (666 mm) |
| Weight (Approximate) | 191.80 lb (87000 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years for UPS & EBP 2 Years for Battery |
User Manual
FAQ
What is the power capacity of the Panduit SmartZone U10N11V UPS?
The UPS has a load capacity of 10 kVA (10,000 VA) and 10 kW. This rating indicates it can support critical IT equipment drawing up to 10,000 volt-amps or 10,000 watts, making it suitable for protecting medium-density server racks, network gear, and edge computing infrastructure.
What type of UPS topology does this model use?
This unit employs a double conversion online topology. It continuously converts incoming AC power to DC and then back to a clean, regulated AC output. This provides complete isolation from utility power anomalies, ensuring zero transfer time to battery and delivering a stable pure sine wave to connected equipment.
What are the backup runtimes at full and half load?
At full load (10 kW), the UPS provides approximately 4.5 minutes of backup runtime. At half load (5 kW), the runtime extends to about 12.9 minutes. These runtimes are based on the internal battery bank; connecting external battery packs can significantly extend these durations.
Can this UPS be installed in a server rack?
Yes, it is designed for versatile deployment. It supports rackmount installation as a 6U unit in a standard 19-inch server cabinet, tower placement on the floor or a shelf, and rail mounting. The rotatable LCD panel allows for easy viewing in either orientation.
What input voltages does the UPS accept?
The unit accepts input voltages of 120V AC and 230V AC, with a wide operating range from 110V AC to 285V AC. This broad range allows it to function reliably in areas with significant voltage fluctuations or unstable power grids without frequently switching to battery.
What management and monitoring interfaces are included?
The UPS includes a serial port, a USB port compliant with HID (Human Interface Device) standards for direct connection to a server, and an EPO (Emergency Power Off) port. These interfaces enable remote monitoring, configuration, and integration with network management systems for centralized power oversight.
What power capacity is listed for this UPS?
The listed power specification is 10 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
