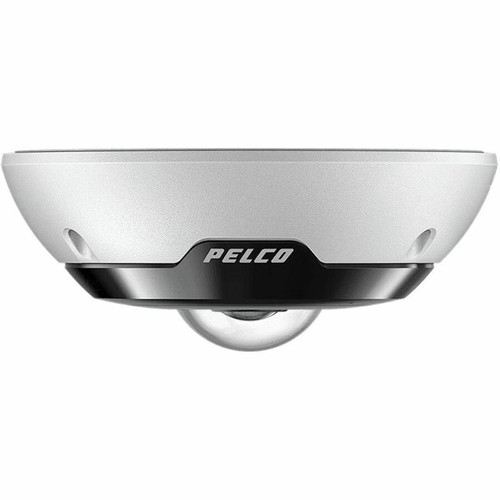

Pelco IMF122-1ES 12MP Network Fisheye Camera - 360° View - Infrared Night Vision 39. 37 ft - H. 265/H. 264 - IK10/IP67 - PoE+
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a 1/2.3" CMOS sensor with fixed f/2.0 aperture lens system, supporting both color and monochrome imaging modes. The camera processes video through H.265, H.264, and Motion JPEG compression formats, with Pelco Smart Compression technologies optimizing bandwidth and storage efficiency.
Network connectivity is established through Fast Ethernet with comprehensive protocol support including ONVIF Profiles S, G, and T for seamless integration with third-party video management systems. The camera supports local storage via microSD card and features built-in microphone for optional audio capture.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The IMF122-1ES combines high-resolution imaging with robust physical protection and flexible deployment options. The camera's 360° fisheye view eliminates blind spots that traditional cameras create, providing complete area coverage from ceiling or wall mounting positions.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Analytics Integration, Enterprise-Grade Security.
Advanced Analytics Integration
Pelco Smart Analytics enables expanded object detection and classification capabilities, supporting intelligent video monitoring applications without requiring external processing hardware.
- Object detection
- Classification algorithms
- Reduced false alarms
Enterprise-Grade Security
Multiple security layers protect video streams and camera access, including HTTPS encryption, password protection, and support for SNMP v3 management protocols.
- HTTPS encryption
- Password protection
- SNMP v3 support
Deployment / Use Cases
This fisheye camera is ideal for retail environments, warehouses, lobbies, and other commercial spaces where comprehensive area monitoring is required without multiple camera installations. The 360° coverage makes it particularly effective for overhead mounting in rooms up to 800 square feet.
The IK10 vandal resistance and IP67 waterproof ratings allow deployment in high-traffic public areas, industrial settings, and environments subject to physical impact or moisture exposure. The camera maintains operation in extreme temperatures from -40°F to 140°F, supporting both climate-controlled and unconditioned spaces.
Retail Surveillance
Monitor entire sales floors, checkout areas, and stock rooms with a single camera installation, reducing equipment costs while maintaining complete visual coverage.
Industrial Security
Withstand physical impacts and environmental challenges in manufacturing facilities, warehouses, and loading docks while providing panoramic monitoring of large open areas.
Physical Profile
The compact fisheye design measures 6.02" × 6.02" × 2.40" (153 × 153 × 61 mm) and weighs approximately 1.48 pounds. The camera supports surface, ceiling, and wall mounting configurations with included hardware, facilitating flexible installation in various architectural environments.
The type 4X enclosure provides additional protection against dust and water ingress, while the IK10 rating ensures resistance to deliberate impacts up to 20 joules of energy. The streamlined profile minimizes visual intrusion while maintaining robust physical protection.
- Width
- 6.02" (153 mm)
- Height
- 2.40" (61 mm)
- Weight
- 1.48 lb (670 g)
- Length
- 1.6 mm (0.06")
Highlights
- 12-megapixel resolution for detailed 360° surveillance coverage
- Infrared night vision effective up to 39.37 feet (12 meters)
- IK10 impact rating and IP67/IP66 waterproof protection
- H.265 and H.264 encoding with Pelco Smart Compression
- PoE, PoE+, and DC power options for flexible installation
- ONVIF Profiles S, G, and T compliant for system integration
- Built-in microphone supports optional audio capture
- MicroSD card slot for local storage backup
- Operates in extreme temperatures from -40°F to 140°F
- Five-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | IMF122-1ES |
| Brand Name | Pelco |
| Product Series | IMF |
| Product Model | IMF122-1ES |
| Product Name | IMF Series Pelco Fisheye Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 39.37 ft (12 m) |
| Night Vision Type | Infrared |
| Camera Iris | Fixed |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.3" |
| Color Supported | Color,Monochrome |
| Field of View | 360° |
| Effective Camera Resolution | 12 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG |
| Maximum Video Resolution | 3008 x 3008 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.6 mm (0.06") |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/8000 Second |
| Longest Shutter Speed | 1/6 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | ONVIF,IPv6,IPv4,HTTP,HTTPS,SOAP,DNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,ZeroConf,ARP,RTP/UDP,SNMP v3,RTP/RTSP/TCP,HSTS,RTP/UDP Multicast,RTP/RTSP/HTTP/TCP,RTP/RTSP/HTTPS/TCP,SNMP v2c |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 26 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE,PoE+ |
| Physical Characteristics | |
| Mount Type | Surface Mount,Ceiling Mount,Wall Mount |
| Form Factor | Fisheye |
| Durability | Water Resistant,Vandal Resistant |
| Height | 2.40" (61 mm) |
| Width | 6.02" (153 mm) |
| Length | 6.02" (153 mm) |
| Weight (Approximate) | 1.48 lb (670 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Video Management System,White Balance,Back Light Compensation (BLC),Motion Detection,SD Card Local Storage,Password Protection,HTTPS Encryption,Multi-view Stream |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67,IP66 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the coverage area of this fisheye camera?
The Pelco IMF122-1ES provides complete 360° panoramic coverage from its installation point, eliminating blind spots that traditional fixed cameras create. This makes it ideal for monitoring medium-sized rooms up to approximately 800 square feet when ceiling-mounted at standard heights.
How does the night vision perform in complete darkness?
The camera features integrated infrared illuminators that provide clear monochrome imaging up to 39.37 feet (12 meters) in total darkness. The adaptive infrared technology automatically adjusts illumination intensity based on scene conditions, while the Day/Night functionality switches between color and monochrome modes for optimal image quality.
What video compression formats does this camera support?
The IMF122-1ES supports H.265, H.264, and Motion JPEG compression formats. H.265 provides approximately 50% better compression efficiency than H.264, reducing bandwidth and storage requirements while maintaining video quality. Pelco Smart Compression technologies further optimize storage utilization without compromising forensic detail.
Can this camera withstand vandalism and weather exposure?
Yes, the camera carries an IK10 impact protection rating, meaning it can withstand deliberate impacts up to 20 joules of energy. The IP67 and IP66 ingress protection ratings ensure complete dust protection and resistance to temporary immersion in water up to 1 meter deep for 30 minutes, making it suitable for both indoor and protected outdoor applications.
What power options are available for installation?
The camera supports three power methods: 12V DC power, standard PoE (802.3af), and PoE+ (802.3at) for installations up to 100 meters from the switch. The maximum power consumption is 26 watts, with PoE+ providing sufficient power for all camera functions including infrared illumination and heater operation in cold environments.
How does this camera integrate with video management systems?
The IMF122-1ES is ONVIF Profiles S, G, and T compliant, ensuring compatibility with most third-party video management systems. The camera supports comprehensive network protocols including RTSP, HTTP/HTTPS, and SNMP v2c/v3 for seamless integration into existing security infrastructure. Pelco's Video Management System provides additional advanced features when used with compatible recorders.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
