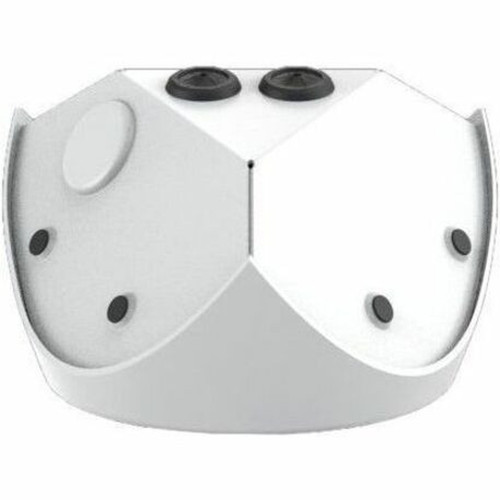

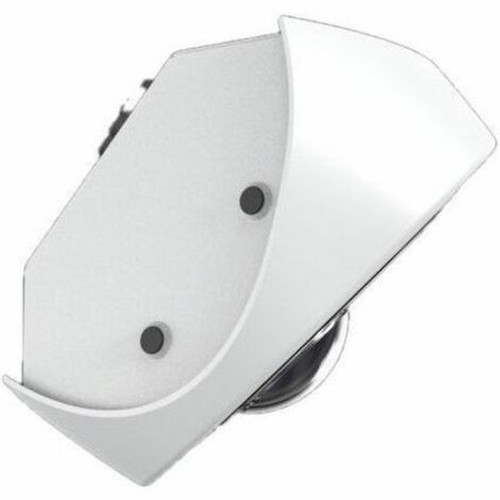

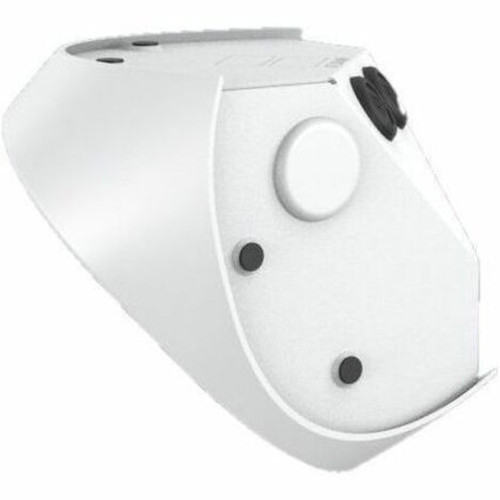

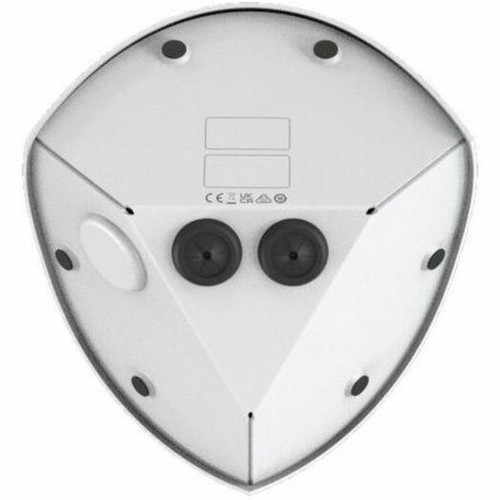

Pelco IBD532-1 Sarix 3 Series 5MP Indoor/Outdoor Dome Network Camera - Corner Mount - Silver - 49. 21 ft IR Night Vision - IP66/67 - Vandal Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera employs advanced imaging technology to produce sharp, detailed video suitable for security and surveillance operations. The 5-megapixel CMOS sensor captures high-resolution imagery, with video encoded in H.264, H.265, and Motion JPEG formats for efficient storage and streaming. The camera's exposure control ranges from 1/8196 second to 1/7 second, allowing it to handle challenging lighting scenarios from bright daylight to low-light environments.
Network communication is managed through a comprehensive suite of protocols including IPv6, IPv4, HTTP, HTTPS, RTSP, and SNMP, enabling seamless integration into existing security infrastructures. Remote management capabilities allow administrators to configure and monitor the camera from a central location. Storage is supported via memory card, providing flexible recording options alongside network video recorder (NVR) systems.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Pelco Sarix IBD532-1 combines high-resolution imaging with rugged construction to deliver reliable performance in diverse surveillance environments. Its infrared night vision extends to 49.21 feet (15 meters), ensuring continuous monitoring around the clock. The camera's IK10+ impact resistance and IP66/IP67 ingress protection ratings make it resistant to vandalism, dust, and water ingress, suitable for both indoor and outdoor installations.
Enhanced Image Quality
Features like automatic white balance, back light compensation, and wide dynamic range optimize video clarity in varying light conditions, reducing the need for manual adjustments.
- Day/Night operation
- Multi-view stream support
- Built-in microphone with audio compression
Durable Construction
The vandal-resistant dome housing and robust environmental ratings ensure long-term reliability in challenging installations, from retail spaces to industrial facilities.
- Silver finish for discreet appearance
- Corner mount design for optimal positioning
- Operating humidity up to 95%
Deployment / Use Cases
This camera is ideal for organizations requiring dependable surveillance in both controlled and harsh environments. Its corner mount design makes it particularly suitable for monitoring intersections in retail stores, office buildings, and warehouses, where wall-ceiling junctions provide optimal viewing angles. The indoor/outdoor rating and wide temperature operating range allow deployment in parking lots, building perimeters, and industrial sites exposed to weather extremes.
The camera's support for Power over Ethernet (PoE) simplifies installation in locations where power outlets are limited, reducing infrastructure costs. Integration with existing network video management systems is straightforward thanks to standard protocols, making it a versatile choice for expanding or upgrading security networks. Applications include loss prevention, access control monitoring, perimeter security, and general surveillance in commercial, educational, and municipal settings.
Retail & Commercial Security
Monitor high-traffic areas, entrances, and cash handling locations with clear 5MP video, utilizing motion detection to focus on relevant activity.
Industrial & Outdoor Monitoring
Withstand temperature fluctuations and environmental challenges while providing consistent video quality for perimeter protection and asset monitoring.
Physical Profile
The camera features a compact dome form factor measuring 4.76 inches in height and 6.42 inches in both width and length (121 mm x 163 mm x 163 mm). Its silver finish blends with modern architectural elements while providing a professional appearance. The corner mount bracket allows flexible positioning to maximize coverage area, and the durable construction supports reliable performance in installations subject to physical stress or environmental exposure.
- Width
- 6.42" (163 mm)
- Height
- 4.76" (121 mm)
- Weight
- 7.08 lb (3210 g)
- Length
- 2.3 mm (0.09")
Highlights
- 5-megapixel resolution for detailed surveillance video
- Infrared night vision effective up to 49.21 feet (15 meters)
- IP66/IP67 rated for dust and water resistance
- Vandal-resistant IK10+ construction
- Supports Power over Ethernet (PoE) for simplified installation
- Wide operating temperature range: -40°F to 131°F (-40°C to 55°C)
- Corner mount design for optimal viewing angles
- Multiple video formats: H.264, H.265, Motion JPEG
- Built-in microphone with audio compression
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | IBD532-1 |
| Brand Name | Pelco |
| Product Line | Sarix |
| Product Series | 3 |
| Product Model | IBD532-1 |
| Product Name | Sarix Corner Mount Camera 3 Series |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 49.21 ft (15 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color,Monochrome |
| Field of View | 135° 133° 95° 74° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.3 mm (0.09") |
| Lens Included | Yes |
| Maximum Aperture | f/2.2 |
| Exposure | |
| Shortest Shutter Speed | 1/8196 Second |
| Longest Shutter Speed | 1/7 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv6,IPv4,HTTP,HTTPS,SOAP,DNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP v2,ICMP,DHCP,ZeroConf,ARP,RTP/UDP,Multicast,RTP/RTSP/RTCP,SNMP (v1/v2c/v3) |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | AC,DC,PoE |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver |
| Mount Type | Corner Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Water Resistant |
| Height | 4.76" (121 mm) |
| Width | 6.42" (163 mm) |
| Length | 6.42" (163 mm) |
| Weight (Approximate) | 7.08 lb (3210 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Motion Detection,Day/Night,White Balance,Automatic White Balance,Back Light Compensation (BLC),Wide Dynamic Range,3D Noise Reduction,Multi-view Stream,Built-in Microphone,Audio Compression |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10+ |
| Ingress Protection Rating | IP66,IP67 |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution of this Pelco network camera?
The Pelco Sarix IBD532-1 delivers 5-megapixel resolution with a maximum video resolution of 2592 x 1944 pixels. This high resolution provides clear, detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage, supporting effective security monitoring in both indoor and outdoor environments.
How far does the night vision reach on this camera?
The camera features infrared night vision that effectively illuminates and captures video up to 49.21 feet (15 meters) in complete darkness. This extended range ensures continuous monitoring during nighttime hours, making it suitable for perimeter security, parking lots, and other low-light areas where visibility is essential for safety and surveillance.
Is this camera suitable for outdoor installation?
Yes, the Pelco IBD532-1 is rated for both indoor and outdoor use. It carries IP66 and IP67 ingress protection ratings, making it dust-tight and resistant to water ingress from powerful jets or temporary immersion. Combined with its wide operating temperature range of -40°F to 131°F (-40°C to 55°C), it can withstand harsh environmental conditions commonly encountered in outdoor surveillance applications.
What mounting options does this camera support?
This camera is designed specifically for corner mounting, allowing installation at wall-ceiling junctions to maximize coverage area and reduce blind spots. The included mounting hardware and bracket facilitate secure attachment, making it ideal for monitoring intersections in retail spaces, hallways, warehouses, and other areas where corner placement provides optimal viewing angles.
Does this camera support Power over Ethernet (PoE)?
Yes, the Pelco Sarix IBD532-1 supports Power over Ethernet as one of its power source options, alongside traditional AC and DC power. PoE simplifies installation by allowing both data and power to be delivered over a single Ethernet cable, reducing cabling complexity and enabling deployment in locations where power outlets may be limited or difficult to access.
What video compression formats does this camera use?
The camera supports H.264, H.265, and Motion JPEG video compression formats. H.265 offers efficient compression for reduced bandwidth and storage requirements while maintaining high video quality, making it ideal for network transmission and long-term recording. Motion JPEG provides individual frame capture for detailed analysis, giving flexibility in how video is stored and accessed within surveillance systems.
