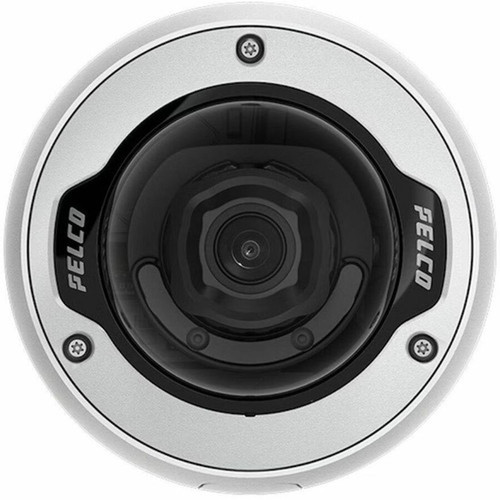

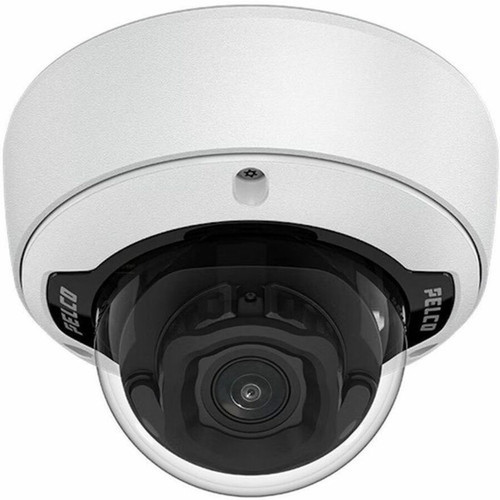

Pelco SRXP4-2V10-EMD-IR Sarix Professional 2MP Outdoor Dome Network Camera - Full HD 1080p - 131 ft IR Night Vision - Varifocal Lens - IP67 - IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera records video in H.264, H.265, and Motion JPEG formats, providing flexibility for bandwidth management and storage efficiency. It features a wide dynamic range and backlight compensation to maintain detail in high-contrast scenes, alongside motion detection and multi-view streaming capabilities for enhanced monitoring control.
Connectivity is handled through Fast Ethernet with support for a comprehensive suite of protocols including ONVIF, IPv6, RTSP, and SNMP v2c/v3, ensuring compatibility with most video management systems. Local storage is available via memory card, while the built-in USB port offers additional expansion options. The camera consumes a maximum of 13 watts and accepts both 12V DC and Power over Ethernet (PoE) inputs for simplified installation.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SRXP4-2V10-EMD-IR combines high-performance imaging with exceptional environmental resilience, making it a reliable choice for outdoor security deployments. Its infrared illumination reaches up to 131 feet, delivering usable footage in complete darkness, while the IP67/IP66 and IK10 ratings guarantee protection against dust, water jets, and vandalism.
Superior Low-Light Performance
Infrared LEDs provide consistent night vision coverage, and the fast f/1.6 aperture maximizes light intake for clearer images in dim conditions.
- Infrared night vision to 131.23 ft (40 m)
- Aperture: f/1.6
- Day/Night auto-switching
Rugged Outdoor Design
Built to withstand harsh weather and physical impacts, this camera operates reliably from -40°F to 140°F and resists water, dust, and deliberate tampering.
- IP67/IP66 waterproof/dustproof
- IK10 impact resistance
- Extended temperature range
Flexible Installation & Power
Ceiling-mount dome form factor and dual power options (PoE or 12V DC) allow for streamlined deployment in new or existing security infrastructures.
- Ceiling mount
- PoE and DC power support
- Varifocal lens for adjustable coverage
Deployment / Use Cases
This camera is purpose-built for perimeter security, parking lots, building entrances, and other outdoor areas requiring 24/7 surveillance. Its robust construction and wide operating temperature range make it suitable for unheated warehouses, loading docks, and facilities in extreme climates.
The varifocal lens and adjustable field of view enable precise coverage of specific zones such as gates, driveways, or storage compounds. Integration with ONVIF-compliant VMS platforms allows seamless incorporation into larger security networks, while local SD card storage provides a backup recording option in case of network interruptions.
Commercial Perimeter Monitoring
Deploy along fence lines or building exteriors to deter trespassing and document incidents with clear 1080p footage, day or night.
Industrial Site Security
Withstand vibration, moisture, and temperature swings in manufacturing plants or logistics yards while delivering reliable video feeds to central monitoring stations.
Highlights
- 2-megapixel CMOS sensor delivers Full HD 1080p video at 60 fps
- Infrared night vision effective up to 131.23 feet (40 meters)
- Varifocal lens with 3.1x optical zoom and adjustable field of view
- IP67/IP66 and IK10 ratings for water, dust, and impact resistance
- Operates in temperatures from -40°F to 140°F (-40°C to 60°C)
- Supports Power over Ethernet (PoE) and 12V DC power inputs
- ONVIF compliant for easy integration with video management systems
- Includes wide dynamic range, motion detection, and day/night functionality
- 5-year limited warranty for long-term reliability assurance
- RoHS compliant and environmentally friendly construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRXP4-2V10-EMD-IR |
| Brand Name | Pelco |
| Product Line | Sarix Professional |
| Product Series | 4 |
| Product Model | SRXP4-2V10-EMD-IR |
| Product Name | Sarix Professional 4 SRXP4-2V10-EMD-IR Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Camera Iris | P-iris |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color,Monochrome |
| Field of View | Horizontal 101° - 31°, Vertical 53° - 17° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.4 mm (0.13") |
| Maximum Focal Length | 10.5 mm (0.41") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 3.1x |
| Exposure | |
| Shortest Shutter Speed | 1/30000 Second |
| Longest Shutter Speed | 1/7.5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | ONVIF,IPv6,IPv4,HTTP,HTTPS,SOAP,DNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,ZeroConf,ARP,RTP/UDP,SNMP v3,RTP/RTSP/TCP,HSTS,RTP/UDP Multicast,RTP/RTSP/HTTP/TCP,RTP/RTSP/HTTPS/TCP,SNMP v2c |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 13 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Ceiling Mount |
| Form Factor | Dome |
| Durability | Impact Resistant,Water Resistant,Vandal Resistant |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Video Management System,White Balance,Back Light Compensation (BLC),Motion Detection,SD Card Local Storage,Password Protection,HTTPS Encryption,Multi-view Stream |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67,IP66 |
| Country of Origin | North America |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum video resolution of this Pelco camera?
The Pelco SRXP4-2V10-EMD-IR records at a maximum resolution of 1920 x 1080 pixels (Full HD 1080p) at 60 frames per second. This ensures detailed, smooth video suitable for identifying faces, license plates, and other critical details in security footage.
How far does the night vision reach?
The camera's infrared night vision is effective up to 131.23 feet (40 meters) in total darkness. It automatically switches to monochrome mode with IR illumination when light levels drop, providing consistent surveillance around the clock.
Is this camera suitable for outdoor use?
Yes, this is an outdoor-rated camera with an IP67/IP66 ingress protection rating, meaning it is dust-tight and can withstand powerful water jets. It also has an IK10 impact resistance rating and operates in temperatures from -40°F to 140°F, making it durable for harsh environments.
What power options are available?
The camera supports both 12V DC power and Power over Ethernet (PoE). PoE allows you to deliver power and data over a single Ethernet cable, simplifying installation and reducing wiring clutter in security deployments.
Does the camera include a lens?
Yes, a varifocal lens is included with a focal length range of 3.4 mm to 10.5 mm, providing a 3.1x optical zoom. This allows you to adjust the field of view from a wide 101° horizontal angle down to a narrower 31° for focused coverage of specific areas.
What video management systems is this camera compatible with?
The camera is ONVIF compliant and supports protocols like RTSP, HTTP, and SNMP, ensuring broad compatibility with most professional video management software. It also includes features such as motion detection and multi-view streaming for integration into comprehensive security networks.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
