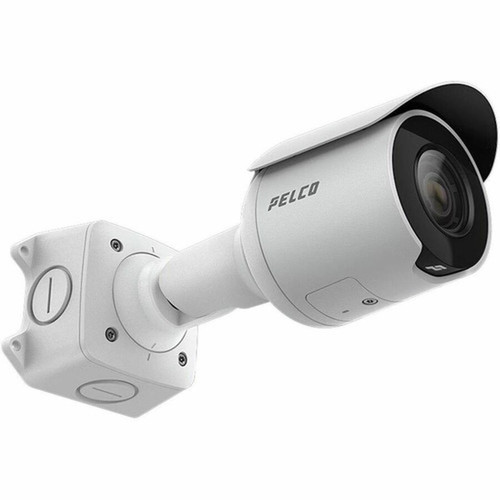

Pelco SRXP4-5V40-EBT-IR Sarix Professional 5MP 2K Bullet Network Camera - 262. 47 ft IR Night Vision - Varifocal Lens - IP66/IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/2.8" CMOS sensor that delivers 5-megapixel resolution with support for color and monochrome imaging. The imaging system includes 3D digital noise reduction, anti-flicker technology, and wide dynamic range to maintain image quality in challenging lighting conditions.
Network connectivity is provided through Fast Ethernet with support for IPv4, IPv6, HTTP, HTTPS, RTSP, and multiple other protocols. The camera supports both Power over Ethernet (PoE) and 12V DC power inputs, offering flexible deployment options. Local storage is available through memory card support, while remote management capabilities enable centralized monitoring and configuration.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The camera's environmental durability makes it suitable for harsh outdoor installations, with operating temperatures from -40°F to 140°F (-40°C to 60°C) and 95% maximum humidity tolerance. The IK10 impact rating provides protection against deliberate vandalism attempts.
Extended Night Vision Coverage
Infrared illumination reaches 262.47 feet (80 meters), providing reliable surveillance in complete darkness. The camera automatically switches between color and monochrome modes based on lighting conditions.
- 262.47 ft (80 m) infrared range
- Automatic day/night switching
- Color and monochrome support
Advanced Analytics Capabilities
Built-in video content analytics include human detection and vehicle detection algorithms that can trigger alerts based on specific object types, reducing false alarms and focusing attention on relevant events.
- Human detection
- Vehicle detection
- Privacy masking zones
Deployment / Use Cases
This camera supports both PoE and DC power, allowing installation in locations where only one power option is available. The bullet form factor provides a visible deterrent while the adjustable mounting bracket enables precise positioning for optimal coverage angles.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Perimeter Security Monitoring
The 262.47-foot night vision range and varifocal lens make this camera ideal for monitoring property boundaries, parking lots, and outdoor storage areas where long-distance observation is required.
- Long-range infrared coverage
- Weatherproof construction
- Flexible lens adjustment
Critical Infrastructure Protection
Industrial facilities, utility sites, and transportation hubs benefit from the camera's extreme temperature tolerance, impact resistance, and advanced analytics for monitoring restricted access areas.
- -40°F to 140°F operation
- IK10 vandal resistance
- Advanced motion analytics
Highlights
- 5-megapixel resolution with 2592 x 1944 maximum video output
- 262.47-foot (80-meter) infrared night vision range
- Varifocal lens with 4.8-40.8mm focal length and 8.5x optical zoom
- IP66/IP67 weatherproof rating and IK10 impact resistance
- Power over Ethernet (PoE) and 12V DC dual power options
- H.264, H.265, and Motion JPEG video compression formats
- Human and vehicle detection analytics with privacy masking
- Wide operating temperature range: -40°F to 140°F (-40°C to 60°C)
- Fast Ethernet connectivity with comprehensive protocol support
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRXP4-5V40-EBT-IR |
| Brand Name | Pelco |
| Product Line | Sarix Professional |
| Product Series | 4 |
| Product Model | SRXP4-5V40-EBT-IR |
| Product Name | Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 2K |
| Night Vision | Yes |
| Night Vision Distance | 262.47 ft (80 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color,Monochrome |
| Field of View | 57° - 7°/44° - 5° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.8 mm (0.19") |
| Maximum Focal Length | 40.8 mm (1.61") |
| Lens Included | Yes |
| Maximum Aperture | f/1.7 |
| Optical Zoom | 8.5x |
| Exposure | |
| Shortest Shutter Speed | 1/30000 Second |
| Longest Shutter Speed | 1/7.5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv6,IPv4,HTTP,HTTPS,SOAP,DNS,RTSP,RTP,UDP,IGMP,DHCP,ZeroConf |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Form Factor | Bullet |
| Durability | Weather Resistant,Impact Resistant,Vandal Resistant |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Video Content Analytics,3D Digital Noise Reduction,Anti-flicker,HTTPS Encryption,Human Detection,Vehicle Detection,White Balance,Privacy Masking,Day/Night |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum resolution of this Pelco network camera?
This Pelco Sarix Professional camera delivers 5-megapixel resolution with a maximum video output of 2592 x 1944 pixels at 30 frames per second. It supports 2K recording formats and utilizes H.264, H.265, and Motion JPEG compression for efficient bandwidth usage while maintaining image quality.
How far does the night vision reach on this camera?
The infrared night vision system provides clear surveillance up to 262.47 feet (80 meters) in complete darkness. The camera automatically switches between color and monochrome modes based on available light, ensuring optimal image quality day and night with infrared illumination for low-light conditions.
What weatherproof ratings does this camera have?
This camera features IP66 and IP67 ingress protection ratings, making it dust-tight and protected against powerful water jets and temporary immersion. Combined with IK10 impact resistance, these ratings ensure reliable operation in harsh outdoor environments and provide protection against vandalism attempts.
What power options are available for this network camera?
The camera supports both Power over Ethernet (PoE) and 12V DC power inputs, offering flexible installation options. PoE simplifies deployment by carrying both data and power over a single Ethernet cable, while the 12V DC option provides compatibility with existing power systems in locations without PoE infrastructure.
Does this camera include video analytics capabilities?
Yes, the camera features built-in video content analytics including human detection and vehicle detection algorithms. These analytics can trigger alerts based on specific object types, reducing false alarms from irrelevant motion. Additional features include privacy masking, wide dynamic range, and 3D digital noise reduction for enhanced image quality.
What is the warranty period for this Pelco surveillance camera?
This Pelco Sarix Professional camera comes with a 5-year limited warranty, providing long-term assurance of product reliability and manufacturer support. The camera also complies with RoHS environmental standards and is designed for durable performance in demanding surveillance applications.
