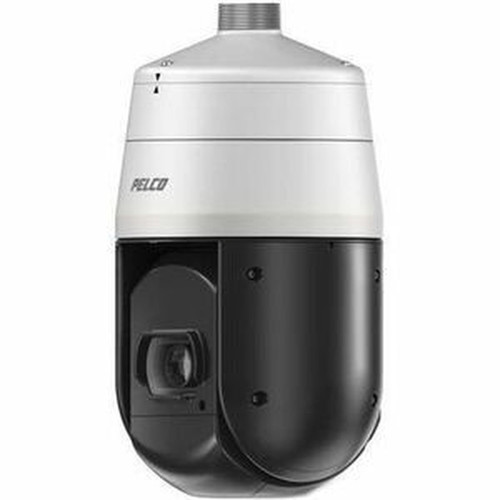

Pelco S7820L-PW Spectra Enhanced 8MP 4K Network Camera - Indoor/Outdoor Dome - White - 656 ft IR - 20x Zoom
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Pelco camera records in 4K resolution using H.264, H.265, and MJPEG video formats, balancing high quality with efficient bandwidth usage. The varifocal lens offers a focal length range from 6.4 mm to 127.2 mm, with an aperture from f/1.5 to f/3.4, allowing precise light control and focus adjustment. Auto iris, gain control, and white balance ensure consistent image quality under varying lighting conditions.
Network connectivity is handled via a wired Gigabit Ethernet port with support for TCP/IP, UDP/IP, RTSP, SNMP v2c/v3, HTTP, HTTPS, and other standard protocols, enabling seamless integration into existing security infrastructures. Remote management capabilities allow administrators to configure and monitor the camera from a central location. Storage options include local memory card support for flexible recording.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The S7820L-PW combines high-resolution imaging with robust construction and intelligent features to address critical surveillance needs. Its 8MP sensor and 4K output provide exceptional detail for identifying faces, license plates, and other fine elements, while the 60 fps frame rate ensures smooth motion capture without blur.
Superior Low-Light Performance
Built-in infrared illuminators deliver clear monochrome video up to 656 feet in total darkness, supported by a wide f/1.5 aperture for enhanced light gathering.
- 656 ft infrared night vision
- Auto gain control
- Back light compensation
Environmental Resilience
Rated IP67/IP66 for dust and water resistance and IK10 for vandal resistance, this camera operates reliably from -51°C to 60°C and up to 100% humidity.
- IP67/IP66 ingress protection
- IK10 impact rating
- Corrosion resistant
Advanced Surveillance Features
PTZ functionality, motion detection, privacy masking, and motion tracking enable proactive monitoring and reduce false alarms in dynamic environments.
- PTZ control
- Motion tracking
- Privacy masking zones
Deployment / Use Cases
The Pelco Spectra Enhanced S7820L-PW is ideal for perimeter security, parking lots, industrial facilities, and retail environments where high-resolution monitoring and environmental durability are paramount. Its 20x optical zoom allows operators to zoom in on distant objects without sacrificing image quality, making it suitable for long-range observation points.
In outdoor settings, the camera's IP67/IP66 and IK10 ratings protect against rain, dust, and physical tampering, ensuring continuous operation in harsh weather. For indoor applications like warehouses or lobbies, its wide dynamic range and auto white balance handle challenging lighting contrasts from windows or bright lights. The PoE support simplifies installation by delivering power and data over a single Ethernet cable, reducing wiring complexity.
Perimeter and Entry Monitoring
Deploy at gates, fences, or building entrances to capture clear 4K footage of individuals and vehicles, with night vision ensuring 24/7 visibility.
Large Area Surveillance
Use the 20x zoom and pan/tilt capabilities to monitor expansive areas like parking lots or yards from a single camera position, reducing infrastructure costs.
Highlights
- 8-megapixel 4K resolution for detailed surveillance footage
- 656 ft infrared night vision for 24/7 monitoring in darkness
- 20x optical zoom varifocal lens for flexible field of view
- IP67/IP66 and IK10 ratings for outdoor and vandal-resistant use
- PoE support simplifies installation with single-cable power and data
- 60 fps frame rate ensures smooth video capture of fast motion
- Wide dynamic range handles challenging lighting conditions
- PTZ, motion tracking, and privacy masking for intelligent monitoring
- Operates in temperatures from -51°C to 60°C and up to 100% humidity
- Gigabit Ethernet with comprehensive protocol support for network integration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Motorola Solutions, Inc. |
| Manufacturer Part Number | S7820L-PW |
| Brand Name | Pelco |
| Product Line | Spectra Enhanced |
| Product Series | 7 |
| Product Model | S7820L-PW |
| Product Name | Spectra Enhanced 7 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 656.17 ft (200 m) |
| Night Vision Type | Infrared |
| Camera Iris | Auto |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | 59.8° - 3.19° tele |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.264M,H.265M |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 6.4 mm (0.25") |
| Maximum Focal Length | 127.2 mm (5.01") |
| Lens Included | Yes |
| Minimum Aperture | f/3.4 |
| Maximum Aperture | f/1.5 |
| Optical Zoom | 20x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | TCP/IP,UDP/IP,UPnP,DNS,DHCP,RTP,RTSP,NTP,IPv4,IPv6,SNMP v2c,SNMP v3,QoS,HTTP,HTTPS,SSH,TLS,SMTP,FTP,NTCIP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 71 W |
| Input Voltage | 24 V AC,48 V DC |
| Power Source Type | AC,DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Pendant Mount |
| Form Factor | Dome |
| Durability | Water Resistant,Vandal Resistant,Dust Resistant,Corrosion Resistant |
| Environmental Conditions | |
| Minimum Operating Temperature | -59.8°F (-51°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | PTZ,Built-in Infrared Illuminator,Wide Dynamic Range,Auto Gain Control,Automatic White Balance,Back Light Compensation (BLC),Motion Tracking,Motion Detection,Privacy Masking |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67,IP66 |
User Manual
FAQ
What is the maximum video resolution of the Pelco S7820L-PW camera?
The Pelco S7820L-PW captures video at a maximum resolution of 3840 x 2160 pixels, which is 4K Ultra HD. This high resolution provides exceptional detail for identifying faces, license plates, and other fine elements in surveillance footage, enhancing both real-time monitoring and forensic review capabilities.
How far does the night vision reach on this camera?
This camera features built-in infrared illuminators that provide night vision up to 656.17 feet (200 meters). The infrared technology ensures clear monochrome video in total darkness, allowing for reliable 24/7 surveillance in outdoor or low-light environments without additional lighting.
Does the camera support Power over Ethernet (PoE)?
Yes, the Pelco S7820L-PW supports Power over Ethernet (PoE) alongside 24 V AC and 48 V DC power inputs. PoE allows you to deliver both power and data over a single Ethernet cable, simplifying installation and reducing wiring costs in network surveillance setups.
What environmental ratings does this camera have for outdoor use?
The camera is rated IP67 and IP66 for ingress protection against dust and water, making it suitable for outdoor use in rain or dusty conditions. It also has an IK10 impact protection rating for vandal resistance and can operate in temperatures from -51°C to 60°C and up to 100% humidity.
What type of lens does the S7820L-PW include?
It includes a varifocal lens with a 20x optical zoom, offering a focal length range from 6.4 mm to 127.2 mm. This allows you to adjust the field of view from a wide 59.8° to a tight 3.19° telephoto perspective, providing flexibility for different surveillance distances and angles.
Can this camera be used for both indoor and outdoor surveillance?
Yes, the Pelco S7820L-PW is designed for indoor/outdoor use. Its durable dome housing, environmental ratings, and wide operating temperature range make it suitable for installations in both controlled indoor spaces and harsh outdoor environments, ensuring consistent performance across various settings.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
