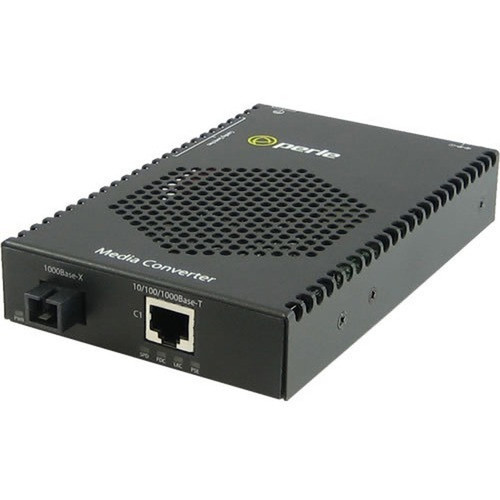

Perle 05081264 10/100/1000 PoE Media Converter - 1 RJ-45 & 1 SC Port - 1000Base-BX - Gigabit Ethernet - Rail/Rack Mount - Model S-1110PP-M1SC05U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Technically, this media converter operates with a dual-wavelength fiber optic system at 1310 nm and 1550 nm, optimized for multi-mode fiber cables. It supports a maximum transmission distance of 0.55 km (0.34 miles), making it suitable for connecting network devices across buildings or large facilities without signal degradation.
The device features a single RJ-45 port for copper connectivity and a single SC port for fiber, with no management port, USB, or DVI interfaces, focusing purely on core conversion tasks. Its Ethernet technology is Gigabit Ethernet, ensuring high-speed data transfer rates that match modern network demands.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter excels in extending network reach and enhancing connectivity flexibility. Its key advantages include robust distance coverage, seamless integration, and reliable performance in diverse environments.
Extended Distance Coverage
Supports optical fiber cable to span longer distances up to 0.55 km, providing excellent data transmission rates between networks and devices without the limitations of copper cabling.
- 0.55 km maximum distance
- Multi-mode fiber support
- 1310 nm and 1550 nm wavelengths
Flexible Deployment
The rail-mountable and rack-mountable form factor offers convenient installation in server racks, network closets, or industrial settings, with a compact design that saves space.
- Rail and rack mountable
- Compact footprint
- Easy integration
High-Speed Conversion
With 1000Base-BX technology, it delivers up to 1000 Mbps data transfer rates over twisted pair cable, ensuring efficient network performance for bandwidth-intensive applications.
- 1000 Mbps throughput
- 1000Base-BX and 10/100/1000Base-T support
- Gigabit Ethernet compatibility
Deployment / Use Cases
This media converter is ideal for scenarios where network extension or media conversion is required. It attaches multiple devices together or expands the number of devices connected to an existing network by using its two transceiver ports, making it a versatile tool for network expansion.
Common use cases include connecting remote offices via fiber optic links, integrating fiber backbones into copper-based LANs, and deploying PoE devices in areas with limited power outlets. Its environmentally friendly design and robust construction suit it for both indoor and controlled outdoor environments.
Network Expansion
Use to extend network segments across buildings or campuses, leveraging fiber optic cables for longer distances and reduced interference compared to copper.
- Building-to-building links
- Campus network extensions
- Fiber backbone integration
PoE Device Connectivity
Deploy in environments where PoE devices need to be connected over fiber, such as security cameras or wireless access points in remote locations.
- Remote PoE device support
- Simplified power delivery
- Enhanced network reach
Physical Profile
The converter has a compact and lightweight design, measuring 1" (25.40 mm) in height, 3.70" (93.98 mm) in width, and 5.90" (149.86 mm) in depth, with an approximate weight of 15.87 oz (450 g). Its rail-mountable and rack-mountable form factor allows for secure installation in standard network racks or on rails, optimizing space utilization in crowded IT environments. The sturdy construction ensures durability during deployment and operation.
- Width
- 3.70" (93.98 mm)
- Depth
- 5.90" (149.86 mm)
- Height
- 1" (25.40 mm)
- Weight
- 15.87 oz (450 g)
- Length
- 1310 nm,1550 nm
What's in the Box
The package includes all necessary components for immediate deployment and setup.
Highlights
- Converts between twisted pair and multi-mode fiber optic cables.
- Supports 1000Base-BX and 10/100/1000Base-T network technologies.
- Maximum distance of 0.55 km (0.34 miles) for extended network reach.
- Rail-mountable and rack-mountable for flexible installation.
- PoE capability simplifies power delivery over Ethernet.
- Dual-wavelength fiber optic support at 1310 nm and 1550 nm.
- Compact design with dimensions of 1" H x 3.70" W x 5.90" D.
- Lifetime warranty and manufactured in Canada.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05081264 |
| Brand Name | Perle |
| Product Model | S-1110PP-M1SC05U |
| Product Name | 10/100/1000 PoE Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX,10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable |
| Height | 1" (25.40 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 5.90" (149.86 mm) |
| Weight (Approximate) | 15.87 oz (450 g) |
| Miscellaneous | |
| Package Contents | 10/100/1000 PoE Media Converter Universal AC/DC Adapter Power Strain Relief Strap |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of cables does this media converter support?
This media converter supports both twisted pair copper cables and multi-mode optical fiber cables. It converts signals between these media types, allowing you to connect standard Ethernet devices over fiber for longer distances up to 0.55 km.
What is the maximum distance this converter can support?
The maximum distance supported is 0.55 km (0.34 miles) when using multi-mode fiber optic cables. This extended range makes it suitable for connecting network segments across buildings or large facilities without signal loss.
Does this media converter support Power over Ethernet (PoE)?
Yes, this media converter supports PoE, allowing it to receive power over the Ethernet connection. This feature simplifies deployment by reducing the need for separate power sources, especially in remote or hard-to-reach locations.
What are the mounting options for this device?
The device is both rail-mountable and rack-mountable, providing flexible installation options. You can easily integrate it into standard server racks or mount it on rails in network closets, ensuring a secure and space-efficient setup.
What network speeds does this converter support?
It supports Gigabit Ethernet speeds with network technologies including 1000Base-BX and 10/100/1000Base-T. This allows for data transfer rates up to 1000 Mbps, ensuring high-performance connectivity for modern network applications.
What is included in the package with this media converter?
The package includes the 10/100/1000 PoE Media Converter unit, a universal AC/DC adapter for power, and a power strain relief strap. These components provide everything needed for immediate deployment and reliable operation.
