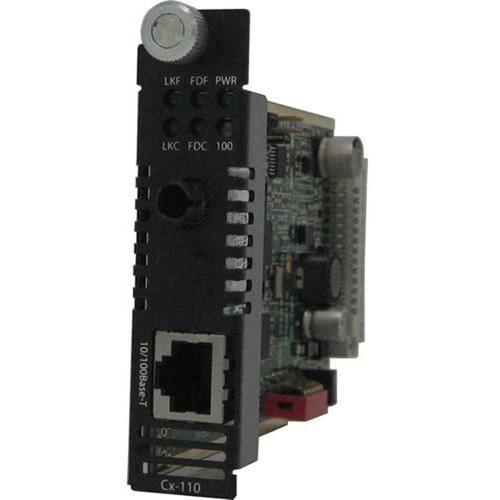

Perle 05042840 Managed 10/100 Media Converter Module - 1x RJ-45 & 1x ST Ports - Multi-mode Fiber - 1310/1550 nm - 2 km Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Fast Ethernet speeds with support for both 10Base-T and 100Base-T network technologies on the copper side, and 100Base-BX-D on the fiber side. The module accepts multiple multimode fiber core/cladding specifications including 62.5/125 µm, 50/125 µm, 85/125 µm, and 100/140 µm, providing flexibility for various fiber installations.
The converter transmits optical signals at both 1310 nm and 1550 nm wavelengths, offering compatibility with standard multimode fiber equipment. With an internal form factor, the module integrates directly into compatible Perle chassis or similar managed networking equipment.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter extends network reach beyond copper limitations while maintaining Fast Ethernet performance. The dual-wavelength support at 1310 nm and 1550 nm ensures compatibility with standard multimode fiber infrastructure, while the ST connector interface provides secure fiber connections for stable data transmission.
Distance Extension
Supports fiber runs up to 2 kilometers, significantly extending network reach compared to traditional copper cabling limitations.
- 2 km maximum distance
- Minimal signal loss over fiber
- Greater than copper reach
Media Flexibility
Converts between twisted pair copper and multiple multimode fiber specifications for versatile deployment in mixed-media networks.
- RJ-45 to ST conversion
- Multiple fiber core sizes
- Dual wavelength support
Deployment / Use Cases
This managed media converter module is ideal for extending Fast Ethernet networks beyond the 100-meter limitation of copper cabling. The internal form factor makes it suitable for installation in managed networking equipment racks or chassis where space optimization is important.
Common deployment scenarios include connecting copper-based network segments to fiber backbone infrastructure, extending network reach between buildings or across large facilities, and integrating fiber optic cabling into existing copper network environments. The converter maintains Fast Ethernet performance while leveraging the distance and interference resistance benefits of fiber optic transmission.
Physical Profile
The converter features an internal form factor designed for installation within compatible networking chassis or equipment. With an approximate weight of 5.29 ounces (150 grams), the module adds minimal weight to host equipment while providing essential media conversion functionality. The compact design optimizes rack space utilization in managed network deployments.
- Weight
- 5.29 oz (150 g)
- Length
- 1310 nm,1550 nm
Highlights
- Converts Fast Ethernet between RJ-45 copper and ST multimode fiber ports
- Supports distances up to 2 kilometers for extended network reach
- Operates at 1310 nm and 1550 nm wavelengths for multimode compatibility
- Internal form factor for integration into managed networking equipment
- Supports multiple multimode fiber specifications (62.5/125 µm to 100/140 µm)
- Provides 10/100Base-T to 100Base-BX-D media conversion
- Managed module design for centralized network control
- Manufactured in Canada with lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05042840 |
| Brand Name | Perle |
| Product Model | CM-110-M1ST2D |
| Product Name | 10/100 Media Converter Module Managed |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm,85/125 µm,100/140 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,100Base-BX-D |
| Physical Characteristics | |
| Form Factor | Internal |
| Weight (Approximate) | 5.29 oz (150 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of connections does this media converter support?
This converter supports one RJ-45 port for twisted pair copper Ethernet connections and one ST port for multimode fiber optic connections. It converts between these two media types while maintaining Fast Ethernet performance up to 100 Mbps.
What is the maximum distance supported by this fiber converter?
The converter supports fiber optic transmission distances up to 2 kilometers (1.24 miles) when using compatible multimode fiber cabling. This significantly extends network reach beyond the 100-meter limitation of traditional copper Ethernet cabling.
What fiber wavelengths does this converter support?
This media converter operates at both 1310 nm and 1550 nm wavelengths, providing compatibility with standard multimode fiber equipment. The dual-wavelength support ensures flexibility for various fiber optic network installations and configurations.
What types of multimode fiber are compatible with this converter?
The converter supports multiple multimode fiber core/cladding specifications including 62.5/125 µm, 50/125 µm, 85/125 µm, and 100/140 µm. This compatibility range allows integration with various existing fiber infrastructure and cable types.
What is the form factor of this media converter?
This converter features an internal form factor designed for installation within compatible networking chassis or managed equipment. The internal design optimizes rack space utilization while providing essential media conversion functionality within larger network systems.
What network speeds does this converter support?
The converter supports Fast Ethernet speeds up to 100 Mbps, with compatibility for both 10Base-T and 100Base-T network technologies on the copper side, and 100Base-BX-D on the fiber side. This maintains consistent Fast Ethernet performance across the media conversion.
