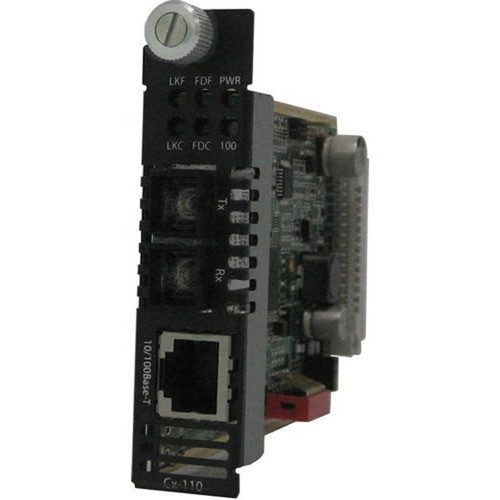

Perle 05042830 CM-110-S1ST20D Managed 10/100 Media Converter Module - 1 x RJ-45 to 1 x ST Single-mode Fiber - 20 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter integrates Fast Ethernet technology, delivering data transfer rates up to 100 Mbps over optical fiber. It supports both 10/100Base-T for copper connections and 100Base-BX-D for fiber, ensuring compatibility with existing network infrastructures. The device features two ports: one RJ-45 port for twisted pair connections and one ST port for single-mode fiber, enabling seamless conversion between media types.
The internal form factor allows for straightforward installation within compatible chassis or enclosures, minimizing energy consumption and physical footprint. Environmentally friendly construction and a lifetime warranty from Perle underscore its reliability for continuous operation in demanding networking scenarios.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter excels in extending network reach without compromising signal quality, leveraging single-mode fiber to overcome the distance limitations inherent to copper cabling. Its managed capabilities provide oversight for stable link management, though it lacks a dedicated management port, focusing instead on core conversion reliability.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include 20 km Distance Support, Single-mode Fiber, Fast Ethernet 100 Mbps, Internal Installation.
Deployment / Use Cases
Deploy this media converter in scenarios where network segments need to span beyond the effective range of copper Ethernet, such as connecting buildings across a campus, linking remote industrial equipment, or integrating fiber backbones into existing copper-based networks. Its internal design makes it ideal for integration into rack-mounted systems or enclosed networking environments.
Common applications include extending LANs over long distances in educational institutions, manufacturing plants, or corporate offices, where maintaining data integrity and minimizing latency are critical. The converter also supports attaching multiple devices or expanding device connections by bridging copper and fiber segments efficiently.
Physical Profile
The converter has an internal form factor, designed for installation within compatible networking hardware rather than as a standalone unit. It weighs approximately 5.29 ounces (150 grams), contributing to a lightweight and compact profile that fits seamlessly into chassis slots without adding significant bulk or power demands.
- Weight
- 5.29 oz (150 g)
- Length
- 1310 nm,1550 nm
Highlights
- Converts Fast Ethernet between RJ-45 copper and single-mode ST fiber ports.
- Supports distances up to 20 km (12.43 miles) over optical fiber.
- Operates at 1310 nm and 1550 nm wavelengths with 9/125 µm fiber.
- Delivers data transfer rates up to 100 Mbps via 10/100Base-T technology.
- Internal form factor for easy installation in compatible enclosures.
- Environmentally friendly design with a lifetime warranty.
- Manufactured in Canada for quality assurance.
- Minimal signal loss and durable performance in extended network links.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05042830 |
| Brand Name | Perle |
| Product Model | CM-110-S1ST20D |
| Product Name | 10/100 Media Converter Module Managed |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,100Base-BX-D |
| Physical Characteristics | |
| Form Factor | Internal |
| Weight (Approximate) | 5.29 oz (150 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
It converts Fast Ethernet signals between a standard RJ-45 copper port and a single-mode ST fiber optic port, allowing network extension over longer distances up to 20 km where copper cabalone is insufficient.
What type of fiber does it support?
The converter supports single-mode fiber optic cable with a core/cladding specification of 9/125 µm, operating at wavelengths of 1310 nm and 1550 nm for optimal performance in long-distance applications.
What is the maximum data transfer rate?
It supports Fast Ethernet technology with data transfer rates up to 100 Mbps, compatible with both 10/100Base-T for copper connections and 100Base-BX-D for fiber, ensuring efficient network throughput.
How is this converter installed?
It has an internal form factor, meaning it is designed to be installed inside a compatible chassis or enclosure, requiring minimal energy and effort for integration into existing networking hardware.
What is the warranty for this product?
Perle provides a lifetime limited warranty for this media converter, covering defects in materials and workmanship to ensure long-term reliability in networking environments.
Can it be used to expand network connections?
Yes, by converting between copper and fiber, it allows you to attach multiple devices or extend the number of devices connected to your network, bridging segments that would otherwise be limited by distance.
