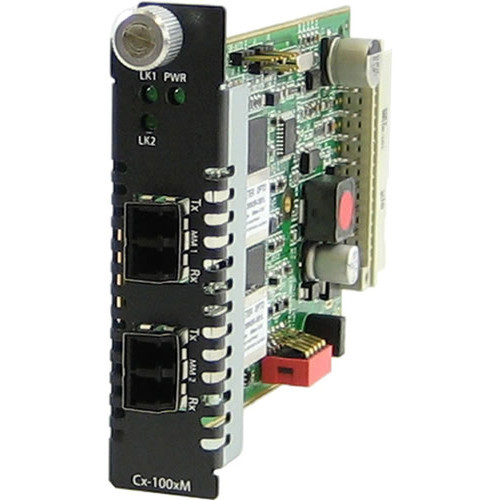

Perle 05061480 C-1000MM-M2LC2 Gigabit Ethernet Fiber-to-Fiber Media Converter Module - 2 LC Duplex Ports - Multi-mode - 2 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Technically, the C-1000MM-M2LC2 supports optical fiber media with multi-mode compatibility, accommodating fiber optic cable core/cladding specifications of 62.5/125 µm and 50/125 µm. It provides two LC ports configured for duplex operation, ensuring full-duplex data transmission for efficient network performance.
The module does not include management ports, DVI, or USB interfaces, focusing solely on fiber conversion tasks. Its internal design integrates seamlessly into existing systems, and with a weight of approximately 149.7 grams, it adds minimal bulk. Environmental certifications include REACH, RoHS, and WEEE compliance, reflecting a commitment to sustainable manufacturing practices.
Key Product Advantages
This media converter excels in extending network reach and enhancing connectivity through fiber optic technology. It enables high-speed data transmission over distances up to 2 kilometers, overcoming limitations of copper-based Ethernet.
Distance Extension
Supports multi-mode fiber up to 2 km, ideal for connecting remote network segments or devices across buildings.
- Extends network beyond copper limits
- Reduces signal degradation over distance
High-Speed Performance
Utilizes 1000Base-SX and 1000Base-LX technologies for Gigabit Ethernet speeds, ensuring fast and reliable data transfer.
- Up to 1000 Mbps throughput
- Full-duplex operation for efficiency
Easy Integration
Internal form factor allows straightforward installation into compatible networking hardware, minimizing setup complexity.
- Lightweight at 149.7 g
- No external power required for basic operation
Deployment / Use Cases
Deploy the Perle C-1000MM-M2LC2 in scenarios where extending network connectivity over fiber is essential. It is commonly used in enterprise networks, data centers, and industrial settings to bridge gaps between network devices or segments.
Typical use cases include connecting switches or routers across different floors or buildings, integrating fiber backbone links into existing copper networks, and expanding device connectivity in environments with electromagnetic interference. The module's multi-mode support and 2 km range make it suitable for medium-distance applications, such as campus networks or manufacturing facilities requiring robust data transmission.
Physical Profile
The C-1000MM-M2LC2 features an internal form factor designed for integration into networking equipment. With an approximate weight of 149.7 grams, it is lightweight and adds minimal physical overhead. The module's compact design supports easy installation in racks or enclosures, and its environmental compliance with REACH, RoHS, and WEEE standards ensures it meets regulatory requirements for electronic devices.
- Weight
- 149.7 g
Highlights
- Gigabit Ethernet fiber-to-fiber media converter module for network extension
- Two LC duplex ports support multi-mode fiber up to 2 km distance
- 1000Base-SX and 1000Base-LX technologies enable up to 1000 Mbps data transfer
- Internal form factor for convenient installation in compatible equipment
- Supports fiber optic cable core/cladding specs: 62.5/125 µm and 50/125 µm
- Environmentally friendly with REACH, RoHS, and WEEE compliance
- Made in Canada with a lifetime limited warranty
- Lightweight design at approximately 149.7 grams
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05061480 |
| Brand Name | Perle |
| Product Model | C-1000MM-M2LC2 |
| Product Name | C-1000MM-M2LC2 - Gigabit Ethernet Fiber to Fiber Media Converter Module |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of LC Ports | 2 |
| LC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm |
| Network & Communication | |
| Network Technology | 1000Base-SX,1000Base-LX |
| Physical Characteristics | |
| Form Factor | Internal |
| Weight (Approximate) | 149.7 g |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber does the Perle C-1000MM-M2LC2 support?
The C-1000MM-M2LC2 supports multi-mode optical fiber, compatible with cable core/cladding specifications of 62.5/125 µm and 50/125 µm. It is designed for use with standard multi-mode fiber optic cables, enabling data transmission over distances up to 2 kilometers without signal degradation common in copper-based connections.
What is the maximum data transfer rate of this media converter?
This media converter supports Gigabit Ethernet speeds with data transfer rates up to 1000 Mbps. It utilizes 1000Base-SX and 1000Base-LX network technologies, providing full-duplex operation for efficient and high-performance network connectivity over fiber optic links.
How many ports does the C-1000MM-M2LC2 have, and what type are they?
The module features two LC ports configured for duplex operation. These ports are specifically designed for fiber optic connections, allowing the converter to interface with multi-mode fiber cables. There are no additional management, DVI, or USB ports, focusing the device on core fiber conversion tasks.
What is the form factor of this media converter?
The C-1000MM-M2LC2 has an internal form factor, meaning it is designed to be installed inside compatible networking equipment such as switches or enclosures. This internal design facilitates easy integration into existing systems without requiring external mounting or additional space.
