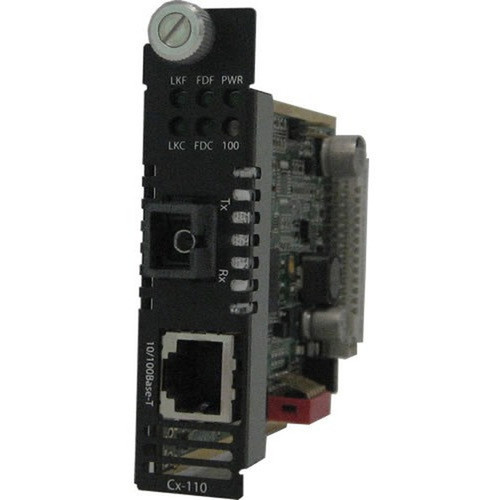

Perle 05042910 CM-110-M1SC2U - 10/100 Fast Ethernet Media & Rate Converter Managed Module - 1 x RJ-45 - 1 x SC Ports - 1310/1550 nm - 2 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This converter operates with Fast Ethernet technology, specifically supporting 10/100Base-TX over twisted pair and 100Base-BX over fiber optic. It accommodates multi-mode fiber with wavelengths of 1310 nm and 1550 nm, allowing flexibility in fiber optic deployments. The maximum supported distance is 2 kilometers (1.24 miles), making it suitable for extending network segments beyond the typical limits of copper cabling.
The internal form factor is designed for integration into compatible networking equipment, requiring minimal installation effort and energy consumption. With a weight of approximately 5.29 ounces (150 grams), it is a lightweight addition that does not add significant bulk to network infrastructure.
Key Product Advantages
The CM-110-M1SC2U offers distinct advantages for network expansion and media conversion tasks. Its managed capabilities provide enhanced visibility and control over network traffic, while the conversion between copper and fiber enables cost-effective extension of existing infrastructure without replacing entire cabling systems.
Extended Reach
Supports distances up to 2 km, overcoming the limitations of twisted pair cabling for longer network runs.
- Fiber optic noise immunity
- Secure data transmission over distance
Media Flexibility
Converts between twisted pair and multi-mode fiber optic, accommodating diverse cabling environments.
- SC connector compatibility
- Dual wavelength support
Efficient Integration
Internal form factor and lightweight design ensure easy installation into existing networking hardware.
- Low energy consumption
- Minimal physical footprint
Deployment / Use Cases
This media converter is ideal for scenarios where network segments need to be extended beyond the reach of standard copper Ethernet cabling. Common deployments include connecting buildings within a campus, linking remote offices over fiber backbones, or integrating fiber optic segments into predominantly copper-based networks for enhanced performance and security.
In industrial environments, it can bridge equipment in harsh conditions where fiber's immunity to electromagnetic interference is critical. The managed functionality allows for monitoring and troubleshooting in these extended network setups, ensuring reliable connectivity for business-critical applications.
Physical Profile
The CM-110-M1SC2U features an internal form factor, designed to be installed within compatible networking devices rather than as a standalone unit. This design minimizes external clutter and integrates seamlessly into existing rack or cabinet setups. The approximate weight of 5.29 ounces (150 grams) ensures it adds negligible load, while its construction supports reliable operation in standard networking environments.
- Weight
- 5.29 oz (150 g)
- Length
- 1310 nm,1550 nm
Highlights
- Converts 10/100Base-TX Fast Ethernet between twisted pair and multi-mode fiber optic.
- Supports distances up to 2 km (1.24 miles) for extended network reach.
- Features 1 RJ-45 port and 1 SC port for flexible media connectivity.
- Operates with wavelengths of 1310 nm and 1550 nm on multi-mode fiber.
- Managed module provides network oversight and control capabilities.
- Internal form factor for easy integration into networking equipment.
- Lightweight design at approximately 5.29 oz (150 g).
- Environmentally friendly and manufactured in Canada.
- Backed by a lifetime limited warranty for long-term reliability.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05042910 |
| Brand Name | Perle |
| Product Model | CM-110-M1SC2U |
| Product Name | CM-110-M1SC2U - 10/100 Fast Ethernet Media and Rate Converter Managed Module |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-BX |
| Physical Characteristics | |
| Form Factor | Internal |
| Weight (Approximate) | 5.29 oz (150 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter convert between?
The Perle CM-110-M1SC2U converts 10/100Base-TX Fast Ethernet signals between twisted pair copper cabling (via an RJ-45 port) and multi-mode fiber optic cabling (via an SC port). This allows network segments using different media types to communicate seamlessly, extending the reach of Ethernet networks beyond the limitations of copper alone.
What is the maximum distance supported by this converter?
This converter supports a maximum distance of 2 kilometers (1.24 miles) when using fiber optic cabling. This extended reach is ideal for connecting network devices across buildings, campuses, or remote locations where traditional copper Ethernet cables would be insufficient due to distance constraints or environmental interference.
What types of fiber optic cable are compatible?
The converter is compatible with multi-mode fiber optic cables and supports wavelengths of 1310 nm and 1550 nm. It uses SC connectors for the fiber interface, ensuring reliable connections in standard multi-mode fiber deployments commonly used in enterprise and industrial networking environments.
Is this a managed or unmanaged converter?
The CM-110-M1SC2U is a managed media converter module. This means it provides network administrators with oversight and control capabilities for monitoring and managing the conversion process. However, it does not include a dedicated management port, so management functions are integrated into its operational design for streamlined network integration.
What is the form factor and how is it installed?
This converter has an internal form factor, designed to be installed inside compatible networking equipment rather than as a standalone external device. Installation requires minimal energy and effort, typically involving slotting it into a designated module bay within a switch, router, or other networking hardware, making it a compact and integrated solution.
What warranty does this product come with?
The Perle CM-110-M1SC2U comes with a lifetime limited warranty. This warranty provides long-term assurance of reliability and support, reflecting the product's durability and suitability for critical network infrastructure where continuous operation is essential.
