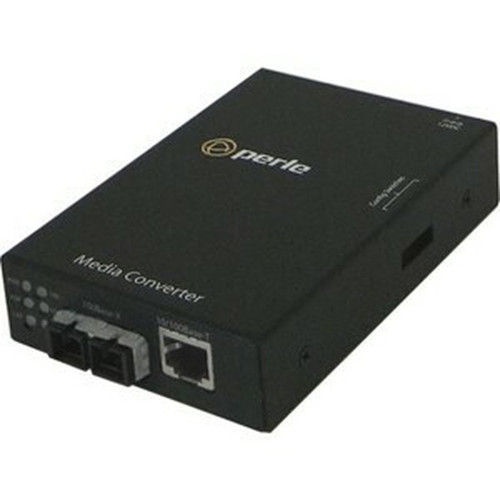

Perle 05050284 S-100-S1SC20D Fast Ethernet Media Converter - RJ-45 to SC Fiber - 10/100Base-TX/BX - 20 km - Rail/Rack/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Fast Ethernet speeds, supporting both 10 Mbps and 100 Mbps data rates over twisted pair copper via the RJ-45 port. The SC fiber port handles 100Base-BX signaling, enabling long-distance fiber optic transmission up to 20 km, which is ideal for connecting network segments across buildings or campuses.
The device features auto-negotiation and auto-MDI/MDIX on the copper side, simplifying installation by automatically detecting and adjusting to network configurations. It requires external power via the included US power cord, ensuring stable operation without relying on PoE from connected equipment.
Key Product Advantages
The Perle S-100-S1SC20D offers reliable media conversion with extended reach and versatile mounting, making it a practical solution for network expansion and fiber integration.
Extended Network Reach
Converts copper Ethernet to fiber optic, supporting distances up to 20 km to connect remote locations without signal degradation.
- Eliminates copper distance limitations
- Maintains data integrity over fiber
Flexible Installation Options
Supports rail, rack, wall, and external mounting, allowing deployment in various environments from data centers to industrial sites.
- Adapts to space constraints
- Simplifies integration into existing infrastructure
Simplified Connectivity
Auto-negotiation and auto-MDI/MDIX features reduce configuration effort, while the compact design minimizes footprint in crowded network setups.
- Plug-and-play operation
- Low-profile form factor
Deployment / Use Cases
This media converter is ideal for scenarios where network segments need to transition between copper and fiber optic cabling. Common applications include extending LAN connections between buildings, integrating fiber backbones into existing copper networks, or upgrading legacy infrastructure to support longer distances.
In enterprise environments, it can be deployed in wiring closets or data centers to connect fiber runs to copper-based switches or routers. For industrial or outdoor installations, its rugged design and mounting flexibility make it suitable for harsh conditions where media conversion is required to bridge different cable types.
Campus Network Extension
Connect buildings across a campus using fiber optic cabling for distances up to 20 km, leveraging existing copper infrastructure at each endpoint.
Fiber Backbone Integration
Integrate fiber optic backbones into copper-based network equipment, enabling high-speed data transmission over longer distances without replacing entire systems.
Physical Profile
The converter measures 1.02 inches in height, 3.15 inches in width, and 4.72 inches in depth (26 x 80 x 120 mm), with a lightweight construction of approximately 300 grams. Its external, wall-mountable, rail-mountable, and rack-mountable form factors provide installation versatility, allowing it to be mounted on DIN rails, standard racks, or flat surfaces as needed. The compact design ensures minimal space usage while maintaining accessibility for cable connections and power input.
- Width
- 3.15" (80 mm)
- Depth
- 4.72" (120 mm)
- Height
- 1.02" (26 mm)
- Weight
- 300 g
What's in the Box
The package includes the S-100-S1SC20D Fast Ethernet Stand-Alone Media Converter and a US power cord, providing all necessary components for immediate deployment.
Highlights
- Converts RJ-45 copper to SC fiber optic connections for extended network reach
- Supports 10/100Base-TX and 100Base-BX network technologies up to 100 Mbps
- Maximum distance of 20 km over fiber optic cabling
- Rail-mountable, rack-mountable, external, and wall-mountable form factor
- Compact dimensions: 1.02" H x 3.15" W x 4.72" D (26 x 80 x 120 mm)
- Lightweight design at approximately 300 grams
- Includes US power cord for easy setup
- Environmentally friendly construction
- Manufactured in Canada
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05050284 |
| Brand Name | Perle |
| Product Model | S-100-S1SC20D |
| Product Name | S-100-S1SC20D Fast Ethernet Stand-Alone Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Network & Communication | |
| Network Technology | 10/100Base-TX,100Base-BX |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,External,Wall Mountable |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
| Weight (Approximate) | 300 g |
| Miscellaneous | |
| Package Contents | S-100-S1SC20D Fast Ethernet Stand-Alone Media Converter US Power Cord |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle S-100-S1SC20D converts Fast Ethernet signals between an RJ-45 copper port and an SC fiber optic port. It allows network segments using twisted pair cabling to connect to fiber optic runs, extending the maximum distance up to 20 km while maintaining data integrity across different media types.
What network speeds and standards does it support?
This converter supports 10/100Base-TX on the copper side and 100Base-BX on the fiber side, providing data transfer rates up to 100 Mbps. It handles both 10 Mbps and 100 Mbps Ethernet speeds, with auto-negotiation to adapt to connected equipment, making it compatible with standard Fast Ethernet networks.
How far can it transmit data over fiber?
The media converter supports a maximum distance of 20 kilometers over single-mode fiber optic cabling using the SC connector. This extended reach is ideal for connecting network segments across buildings or campuses where copper cabling would be insufficient due to distance limitations.
What mounting options are available?
The converter offers multiple mounting options: it can be installed on DIN rails, standard racks, walls, or used as an external standalone unit. This flexibility allows deployment in various environments, from data centers and server rooms to industrial settings where space and installation methods vary.
