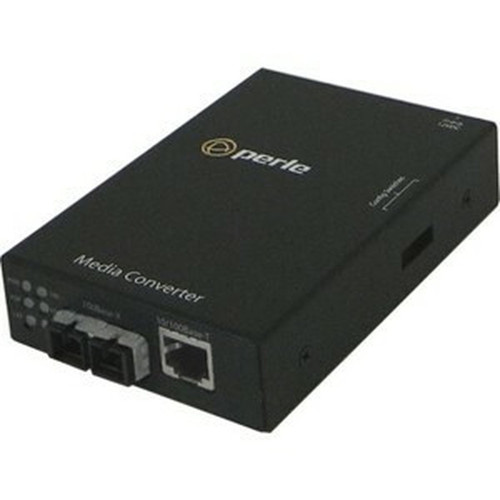

Perle 05050294 S-100-S1SC40U Fast Ethernet Media Converter - RJ-45 to SC Fiber - 10/100Base-TX/BX - 40 km Distance - Rail/Wall/Rack Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Fast Ethernet speeds, delivering up to 100 Mbps data transfer rates across both copper and fiber interfaces. The RJ-45 port supports 10/100Base-TX standards over Category 5 or better cabling, while the SC port handles 100Base-BX over single-mode fiber, ensuring compatibility with common network equipment.
Built for continuous operation, the converter features auto-negotiation and auto-MDI/MDIX on the copper side, simplifying installation and reducing cable management overhead. The SC connector uses standard LC/SC duplex fiber cabling, and the device supports full-duplex operation for efficient bidirectional data flow.
Key Product Advantages
The S-100-S1SC40U excels in extending network reach without sacrificing performance or reliability. Its robust design and flexible mounting options make it suitable for both temporary setups and permanent installations in demanding conditions.
Extended Distance Coverage
Supports fiber runs up to 40 km, ideal for connecting remote buildings, campuses, or industrial sites where copper limitations apply.
- Eliminates copper distance restrictions
- Maintains signal integrity over long hauls
Versatile Mounting
Rail-mountable, wall-mountable, and rack-mountable form factors allow installation in server racks, control panels, or wall surfaces.
- Fits standard 19-inch racks
- Saves space in crowded environments
Plug-and-Play Operation
Requires no configuration or management software, reducing deployment time and technical overhead for network administrators.
- Auto-detects network speed
- No driver installation needed
Deployment / Use Cases
This media converter is particularly effective in scenarios where fiber optic cabling is necessary to overcome distance, interference, or security challenges inherent in copper networks. It serves as a cost-effective bridge between legacy copper infrastructure and modern fiber backbones.
Common applications include extending network connections between separate buildings in a campus, linking remote surveillance cameras or IoT devices back to a central switch, and integrating fiber-optic segments into industrial automation systems where EMI resistance is critical.
Campus Network Extension
Connect administrative buildings to data centers across large properties using existing fiber runs, ensuring high-speed access without signal degradation.
Industrial Networking
Deploy in manufacturing or utility environments where electrical noise interferes with copper, leveraging fiber's immunity to EMI for stable communications.
Physical Profile
The converter measures 3.15" wide by 4.72" deep by 1.02" high (80 x 120 x 26 mm), with a lightweight 300 g construction that facilitates easy handling and mounting. Its compact external design includes ventilation for passive cooling, supporting reliable operation in enclosed spaces. The finish is durable and suitable for both indoor and protected outdoor installations.
- Width
- 3.15" (80 mm)
- Depth
- 4.72" (120 mm)
- Height
- 1.02" (26 mm)
- Weight
- 300 g
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Converts RJ-45 copper to SC fiber for extended network reach
- Supports 40 km distance over single-mode fiber
- 10/100Base-TX and 100Base-BX network technology compatibility
- Rail-mountable, wall-mountable, and rack-mountable form factor
- Plug-and-play operation with auto-negotiation
- Lifetime warranty for long-term reliability
- Environmentally friendly design
- Made in Canada
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05050294 |
| Brand Name | Perle |
| Product Model | S-100-S1SC40U |
| Product Name | S-100-S1SC40U Fast Ethernet Stand-Alone Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 40 km |
| Network & Communication | |
| Network Technology | 10/100Base-TX,100Base-BX |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Wall Mountable,External,Rack-mountable |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
| Weight (Approximate) | 300 g |
| Miscellaneous | |
| Package Contents | S-100-S1SC40U Fast Ethernet Stand-Alone Media Converter US Power Cord |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of network connections does this media converter support?
The Perle S-100-S1SC40U supports Fast Ethernet connections, specifically 10/100Base-TX over copper RJ-45 and 100Base-BX over single-mode SC fiber. This allows it to bridge standard Category 5 or better twisted-pair cabling with fiber optic runs, accommodating common network equipment without requiring protocol changes.
How far can this converter extend my network using fiber?
This media converter supports distances up to 40 kilometers over single-mode fiber when using the SC port. This extended reach is ideal for connecting remote locations, such as separate buildings or industrial sites, where copper cabling would be impractical due to signal loss or interference limitations.
What mounting options are available for installation?
The converter offers multiple mounting options: it is rail-mountable for industrial control panels, wall-mountable using standard hardware, and rack-mountable for 19-inch server racks. Its compact external design also allows for standalone placement on desks or shelves, providing flexibility for various deployment environments.
Does this converter require any configuration or software?
No, the S-100-S1SC40U operates as a plug-and-play device with no configuration or management software needed. It features auto-negotiation on the RJ-45 port to detect network speed and auto-MDI/MDIX to eliminate crossover cable concerns, making installation straightforward for network administrators.
