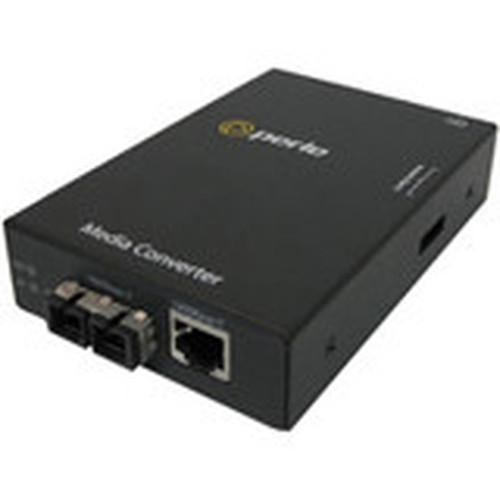

Perle 05050254 S-100-S2SC40 Fast Ethernet Media Converter - RJ-45 to SC Fiber - 10/100Base-TX - 100Base-EX - 40 km Reach
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with 10/100Base-TX on the copper side and 100Base-EX on the fiber side, ensuring seamless integration into existing Fast Ethernet infrastructures. The SC duplex port uses standard fiber optic cabling, while the RJ-45 port connects to twisted-pair Ethernet cables.
The device supports a maximum distance of 40 kilometers over single-mode fiber, making it suitable for long-haul connections. It is powered via an included US power cord and features a compact, rugged design for stable operation in various mounting scenarios.
Key Product Advantages
The S-100-S2SC40 media converter provides a cost-effective solution for extending network coverage without upgrading entire infrastructure. Its external form factor simplifies installation and maintenance, reducing downtime and hardware costs.
Flexible Mounting Options
Designed for rack, wall, or rail mounting, this converter adapts to space-constrained environments, from data centers to remote cabinets.
- Rack-mountable for standard enclosures
- Wall-mountable for office or industrial walls
- Rail-mountable for DIN rail systems
Long-Distance Connectivity
With support for 40 km over fiber, it enables reliable connections between distant network segments, ideal for campus networks or remote sites.
- Extends copper networks over fiber
- Reduces signal degradation over long runs
- Compatible with single-mode fiber optics
Deployment / Use Cases
This media converter is ideal for scenarios where network extension beyond copper limitations is required. It connects Ethernet devices over fiber to overcome distance and interference challenges.
Common applications include linking buildings in a campus network, integrating remote offices into a central LAN, or connecting industrial equipment in harsh environments where fiber's immunity to EMI is advantageous. The external design allows for quick deployment without modifying existing switches or routers.
Campus Network Extension
Connect multiple buildings over long distances using fiber backbone, maintaining Fast Ethernet speeds across sites.
Industrial Networking
Deploy in manufacturing or utility settings where fiber optic cabling resists electromagnetic interference from heavy machinery.
Physical Profile
The converter measures 1.02 inches in height, 3.15 inches in width, and 4.72 inches in depth (26 x 80 x 120 mm), with a lightweight design at approximately 300 grams. Its compact footprint suits tight spaces, and the sturdy construction ensures durability in mounted installations. The external housing facilitates easy access for maintenance or reconfiguration.
- Width
- 3.15" (80 mm)
- Depth
- 4.72" (120 mm)
- Height
- 1.02" (26 mm)
- Weight
- 300 g
What's in the Box
The package includes the S-100-S2SC40 Fast Ethernet Stand-Alone Media Converter and a US power cord, providing everything needed for immediate deployment.
Highlights
- Converts RJ-45 copper to SC fiber for network extension
- Supports 10/100Base-TX and 100Base-EX up to 40 km distance
- External stand-alone design for easy installation
- Flexible mounting: rack, wall, or rail options
- Includes US power cord for quick setup
- Lifetime limited warranty for long-term reliability
- Environmentally friendly manufacturing
- Made in Canada for quality assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05050254 |
| Brand Name | Perle |
| Product Model | S-100-S2SC40 |
| Product Name | S-100-S2SC40 Fast Ethernet Stand-Alone Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Maximum Distance Supported | 40 km |
| Network & Communication | |
| Network Technology | 10/100Base-TX,100Base-EX |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Wall Mountable,External,Rail-mountable |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
| Weight (Approximate) | 300 g |
| Miscellaneous | |
| Package Contents | S-100-S2SC40 Fast Ethernet Stand-Alone Media Converter US Power Cord |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle S-100-S2SC40 converts Fast Ethernet signals from an RJ-45 copper port to a duplex SC fiber port, allowing network extension over fiber optic cable. It bridges 10/100Base-TX copper networks to 100Base-EX fiber, supporting distances up to 40 kilometers for reliable long-haul connectivity.
What types of fiber does it support?
This converter uses a duplex SC port, which is compatible with standard single-mode fiber optic cabling. It is designed for 100Base-EX operation over single-mode fiber, enabling long-distance transmission up to 40 km without signal repeaters.
How is this converter powered and installed?
It is powered by an included US power cord and operates as an external stand-alone unit. Installation is straightforward with no internal hardware required; it can be mounted on a rack, wall, or rail using its versatile form factor, making it suitable for various deployment environments.
What is the warranty coverage for this product?
Perle provides a lifetime limited warranty for the S-100-S2SC40 media converter, ensuring long-term support and reliability. This warranty covers defects in materials and workmanship, offering peace of mind for critical network deployments.
