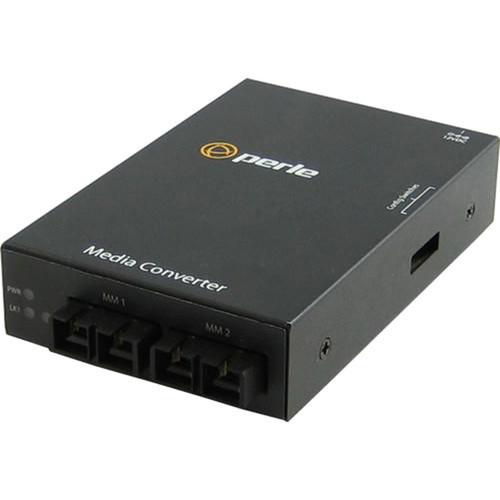

Perle 05060474 S-1000MM-M2SC2 Gigabit Ethernet Fiber to Fiber Media Converter - 2 x SC Ports - Multi-mode - 1000Base-SX - 2 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter utilizes optical fiber technology to convert Gigabit Ethernet signals between fiber optic cables, supporting multi-mode fiber with core/cladding specifications of 62.5/125 µm and 50/125 µm. It features two SC duplex ports for seamless fiber connectivity, ensuring full-duplex communication without data loss. The converter is engineered for 1000Base-SX and 1000Base-LX standards, providing compatibility with common Gigabit Ethernet infrastructure.
With a maximum supported distance of 2 km, it extends network reach beyond typical copper limitations, making it suitable for campus, industrial, or office environments where long-distance fiber runs are necessary. The device has a compact physical profile with dimensions of 1" height, 3.10" width, and 4.70" depth, and it weighs approximately 299.4 grams for easy handling and installation.
Key Product Advantages
The Perle S-1000MM-M2SC2 offers several advantages for network professionals seeking reliable fiber conversion. Its support for multi-mode fiber with SC ports ensures compatibility with existing fiber infrastructure, while the 2 km distance capability extends network coverage effectively. The converter's versatile mounting options allow for flexible installation in diverse settings, from data centers to remote offices.
High-Speed Performance
Delivers Gigabit Ethernet speeds up to 1000 Mbps using 1000Base-SX technology, ensuring fast and efficient data transfer over fiber optic cables.
- Supports 1000Base-SX and 1000Base-LX
- Full-duplex communication
- Low latency for real-time applications
Easy Deployment
Features a plug-and-play design with no management required, making it simple to install and integrate into existing networks without complex configuration.
- Stand-alone operation
- Universal DC adapter included
- Multiple mounting options
Deployment / Use Cases
This media converter is ideal for extending Gigabit Ethernet networks over fiber optic cabling in scenarios where copper Ethernet cannot reach. Common use cases include connecting buildings across a campus, linking network switches in industrial environments, or integrating fiber backbones in office networks. Its 2 km distance support makes it suitable for medium-range applications where signal integrity over longer runs is critical.
In data centers, the converter can be rack-mounted to save space and maintain organized cabling. For smaller setups, its desktop form factor allows for quick deployment on work surfaces. The device is also useful in educational institutions, healthcare facilities, and retail locations where reliable network extension over fiber is needed to support VoIP, surveillance, or data services.
Campus Network Extension
Connect multiple buildings within a campus using fiber optic runs, leveraging the 2 km distance to maintain high-speed connectivity without signal degradation.
Industrial Networking
Deploy in manufacturing or warehouse environments where fiber optic cables are preferred for immunity to electromagnetic interference, ensuring stable network performance.
Physical Profile
The Perle S-1000MM-M2SC2 has a compact and lightweight design, measuring 1" in height, 3.10" in width, and 4.70" in depth, with an approximate weight of 299.4 grams. Its small footprint allows for discreet placement on desktops or integration into rack systems. The converter supports multiple mounting options, including desktop, rail, wall, and rack mounting, providing flexibility for various installation environments. The durable construction ensures reliable operation in standard office or industrial conditions.
- Width
- 3.10" (78.74 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 299.4 g
What's in the Box
The package includes the Perle S-1000MM-M2SC2 Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter and a universal DC adapter, providing everything needed for immediate deployment.
Highlights
- Converts Gigabit Ethernet to fiber optic with 2 SC duplex ports
- Supports multi-mode fiber for distances up to 2 kilometers
- Uses 1000Base-SX technology for data rates up to 1000 Mbps
- Plug-and-play operation with no management port required
- Versatile form factor: desktop, rail, wall, or rack mountable
- Includes universal DC adapter for flexible power options
- Environmentally compliant with REACH, RoHS, and WEEE standards
- Made in Canada with a lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05060474 |
| Brand Name | Perle |
| Product Model | S-1000MM-M2SC2 |
| Product Name | S-1000MM-M2SC2 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of SC Ports | 2 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm |
| Network & Communication | |
| Network Technology | 1000Base-SX,1000Base-LX |
| Physical Characteristics | |
| Form Factor | Desktop,Rail-mountable,Wall Mountable,Rack-mountable |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 299.4 g |
| Miscellaneous | |
| Package Contents | S-1000MM-M2SC2 - Gigabit Ethernet Fiber to Fiber Stand-Alone Media Converter Universal DC Adapter |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber does this media converter support?
The Perle S-1000MM-M2SC2 supports multi-mode optical fiber with core/cladding specifications of 62.5/125 µm and 50/125 µm. It is designed for use with SC duplex connectors, making it compatible with standard multi-mode fiber optic cables commonly used in network installations.
What is the maximum distance this converter can support?
This media converter supports a maximum distance of 2 kilometers over multi-mode fiber. This extended reach allows for reliable network connections between buildings or across large facilities without the signal degradation often associated with longer copper cable runs.
What network technologies are compatible with this converter?
The converter is compatible with 1000Base-SX and 1000Base-LX Gigabit Ethernet technologies. These standards enable data transfer rates up to 1000 Mbps over fiber optic cables, ensuring high-speed performance for network expansion and backbone connections.
How is this media converter powered?
The Perle S-1000MM-M2SC2 is powered by a universal DC adapter included in the package. This adapter provides flexible power options for various regions and installation scenarios, supporting the converter's stand-alone operation without requiring additional power infrastructure.
Can this converter be mounted in a rack?
Yes, this media converter is rack-mountable, along with desktop, rail, and wall mounting options. Its compact dimensions of 1" x 3.10" x 4.70" make it suitable for integration into standard rack systems, saving space in data centers or network closets.
What is included in the warranty for this product?
The Perle S-1000MM-M2SC2 comes with a lifetime limited warranty, providing long-term assurance of quality and reliability. This warranty covers defects in materials and workmanship, backed by Perle's commitment to durable networking solutions.
