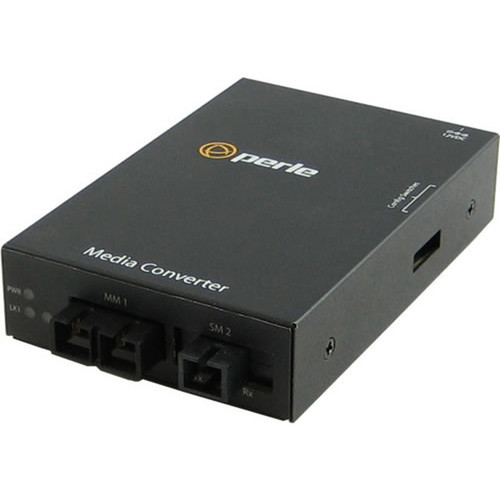

Perle 05060154 S-100MM-S1SC20U Media Converter - 1 x SC Duplex Port - 100Base-FX/BX - 20 km - Rail/Rack/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at 100 Mbps full-duplex, converting electrical signals from standard RJ45 Ethernet ports to optical signals for SC duplex fiber connections. It supports both 100Base-FX (multimode) and 100Base-BX (bidirectional single-mode) standards, providing compatibility with diverse fiber network architectures.
The unit achieves a maximum transmission distance of 20 kilometers (12.43 miles), extending network reach beyond the 100-meter limitation of Cat5/Cat6 copper cabling. It accepts fiber cables with core/cladding diameters of 9/125 µm, 50/125 µm, 62.5/125 µm, 85/125 µm, and 100/140 µm, covering most common multimode and single-mode installations.
Key Product Advantages
The S-100MM-S1SC20U delivers reliable fiber conversion with deployment flexibility that suits constrained spaces and harsh environments. Its rugged construction and broad compatibility make it a practical choice for extending network segments without replacing existing copper infrastructure.
Extended Reach
Transmit data up to 20 km over fiber, eliminating distance limitations of copper cabling for remote devices or between buildings.
- 20 km maximum distance
- Fiber immunity to EMI/RFI
- Signal integrity over long runs
Installation Flexibility
Mount directly on DIN rails, standard 19" racks, or wall surfaces using included hardware, adapting to telecom closets, industrial panels, or network cabinets.
- Rail-mountable design
- Rack ears included
- Wall-mount capability
Broad Compatibility
Works with multiple fiber types and core sizes, supporting both multimode and single-mode deployments across legacy and modern fiber plants.
- 5 cable specifications
- 100Base-FX and BX modes
- Universal power input
Deployment / Use Cases
This media converter is ideal for extending Ethernet networks over fiber in scenarios where copper distance limits, electromagnetic interference, or environmental factors pose challenges. It serves as a cost-effective solution for connecting remote network segments without requiring complete fiber overhaul.
Common applications include linking separate buildings on a campus, connecting industrial PLCs and sensors in manufacturing facilities, extending network drops in warehouses, and providing fiber uplinks for security cameras or access points in outdoor installations. The rail-mount capability makes it particularly useful in control panels and telecommunications enclosures where space is optimized for DIN rail components.
Industrial Networking
Deploy in manufacturing plants to connect machinery and sensors over fiber, avoiding electrical noise from motors and variable frequency drives.
Building-to-Building Links
Connect network segments between separate structures using existing fiber runs, maintaining high bandwidth over 20 km distances.
Physical Profile
The converter measures 1.02 inches in height, 3.15 inches in width, and 4.72 inches in depth (26 × 80 × 120 mm), with a weight of approximately 299.4 grams. Its compact footprint allows installation in tight spaces, while the metal housing provides durability and heat dissipation for continuous operation. The front panel includes status LEDs for power, link, and activity monitoring, and the universal AC/DC adapter supports 100-240V input for global deployment.
- Width
- 3.15" (80 mm)
- Depth
- 4.72" (120 mm)
- Height
- 1.02" (26 mm)
- Weight
- 299.4 g
What's in the Box
The package includes the S-100MM-S1SC20U media converter and a universal AC/DC power adapter with interchangeable plugs for regional compatibility. Mounting hardware for rail, rack, and wall installations is provided.
Highlights
- Converts 100Base-TX copper to 100Base-FX/BX fiber optic signals
- Supports transmission distances up to 20 kilometers (12.43 miles)
- Accepts multiple fiber cable types: 9/125 µm to 100/140 µm core/cladding
- Rail-mountable, rack-mountable, and wall-mountable form factor
- Compact dimensions: 1.02" H × 3.15" W × 4.72" D (26 × 80 × 120 mm)
- Includes universal AC/DC power adapter with global voltage support
- Industrial-grade construction for reliable operation in harsh environments
- Lifetime limited warranty from Perle Systems
- Manufactured in Canada with environmentally friendly materials
- Status LEDs for power, link, and activity monitoring
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05060154 |
| Brand Name | Perle |
| Product Model | S-100MM-S1SC20U |
| Product Name | S-100MM-S1SC20U Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm,85/125 µm,50/125 µm,62.5/125 µm,100/140 µm |
| Network & Communication | |
| Network Technology | 100Base-FX,100Base-BX |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
| Weight (Approximate) | 299.4 g |
| Miscellaneous | |
| Package Contents | S-100MM-S1SC20U Media Converter Universal AC/DC Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of fiber cables does this media converter support?
The S-100MM-S1SC20U supports fiber optic cables with core/cladding specifications of 9/125 µm (single-mode), 50/125 µm, 62.5/125 µm, 85/125 µm, and 100/140 µm (multimode). This covers most common multimode and single-mode fiber types used in enterprise and industrial networks, providing flexibility for existing fiber plant integration.
What is the maximum distance this converter can achieve?
This media converter supports a maximum transmission distance of 20 kilometers (approximately 12.43 miles) over fiber optic cable. The actual achievable distance depends on fiber type, connector quality, and signal loss, but the converter is designed to reach the full 20 km with proper single-mode fiber and clean connections.
Can I mount this converter in a standard 19-inch rack?
Yes, the converter is rack-mountable using included mounting ears that attach to the sides of the unit. It occupies 1U of vertical space when installed in a 19-inch rack enclosure, making it suitable for data center, telecom closet, or network cabinet deployments alongside other rack-mounted equipment.
What power input does the included adapter support?
The universal AC/DC power adapter supports input voltages from 100 to 240V AC at 50/60 Hz, with interchangeable plugs for different regional outlets. This allows deployment in North America, Europe, Asia, and other regions without requiring separate power supplies.
