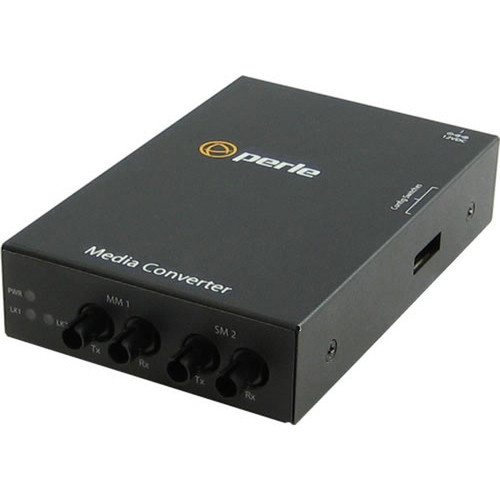

Perle 05060074 S-100MM-S2ST40 Media Converter - 2 x ST Ports - 100Base-FX/EX - 40 km - Rail/Wall/Rack Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on 100Base-FX and 100Base-EX standards, delivering consistent 100 Mbps throughput across fiber optic infrastructure. The dual ST ports support duplex communication, ensuring full-duplex data transmission without bottlenecks.
Compatibility extends across multiple fiber cable types including 9/125 µm single-mode and 62.5/125 µm multimode variants, providing deployment flexibility across diverse network environments. The converter maintains signal integrity across its maximum 40 km range, making it suitable for campus networks, industrial facilities, and long-distance connections.
Key Product Advantages
The S-100MM-S2ST40 delivers reliable fiber extension with deployment flexibility that adapts to various installation scenarios. Its compact footprint and multiple mounting options enable space-efficient placement in constrained environments.
Versatile Mounting System
Install this converter on DIN rails, wall surfaces, or standard rack equipment with included mounting hardware. The multi-position design accommodates diverse infrastructure layouts.
- DIN rail compatible
- Wall mount ready
- Rack mount adaptable
Broad Fiber Compatibility
Support for five different fiber core/cladding specifications ensures compatibility with existing cable plant investments and simplifies integration into mixed-fiber environments.
- Single-mode and multimode support
- 9/125 µm to 100/140 µm range
- Backward compatible with legacy fiber
Deployment / Use Cases
This media converter excels in scenarios requiring fiber optic extension beyond copper Ethernet limitations. Its 40 km reach makes it ideal for connecting buildings across campuses, extending networks to remote equipment locations, or bridging fiber segments in industrial automation systems.
The rugged design and flexible mounting support deployment in manufacturing facilities, utility substations, transportation hubs, and other environments where equipment must withstand vibration, temperature variations, or space constraints. Network administrators can use these converters to modernize legacy fiber infrastructure or extend fiber backbones to new service areas.
Campus Network Extension
Connect administrative buildings, research facilities, or security systems across large properties using existing fiber runs or new installations.
Industrial Connectivity
Deploy in manufacturing plants or utility sites to link control systems, sensors, or monitoring equipment over reliable fiber connections resistant to electromagnetic interference.
Physical Profile
Measuring 3.15 inches wide by 4.72 inches deep by 1.02 inches high, this converter occupies minimal space while delivering full fiber conversion capabilities. The 299.4-gram weight and compact dimensions facilitate installation in tight spaces, while the sturdy construction ensures durability in demanding environments. The unit's design accommodates proper heat dissipation during continuous operation.
- Width
- 3.15" (80 mm)
- Depth
- 4.72" (120 mm)
- Height
- 1.02" (26 mm)
- Weight
- 299.4 g
What's in the Box
Each package includes the complete solution for immediate deployment with all necessary components for power and operation.
Highlights
- Dual ST fiber ports for flexible connectivity
- Supports 100Base-FX and 100Base-EX standards at 100 Mbps
- Maximum transmission distance of 40 kilometers
- Compatible with multiple fiber cable types (9/125 µm to 100/140 µm)
- Rail, wall, and rack mounting options for versatile deployment
- Compact dimensions: 3.15" W × 4.72" D × 1.02" H
- Includes universal AC/DC power adapter
- Lifetime limited warranty for long-term reliability
- Environmentally friendly design and manufacturing
- Manufactured in Canada with quality assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05060074 |
| Brand Name | Perle |
| Product Model | S-100MM-S2ST40 |
| Product Name | S-100MM-S2ST40 Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of ST Ports | 2 |
| ST Port Type | Duplex |
| Media & Performance | |
| Maximum Distance Supported | 40 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm,62.5/125 µm,50/125 µm,100/140 µm,85/125 µm |
| Network & Communication | |
| Network Technology | 100Base-FX,100Base-EX |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Wall Mountable,Rack-mountable |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
| Weight (Approximate) | 299.4 g |
| Miscellaneous | |
| Package Contents | S-100MM-S2ST40 Media Converter Universal AC/DC Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of fiber optic cables does this media converter support?
The Perle S-100MM-S2ST40 supports five different fiber cable specifications: 9/125 µm (single-mode), 62.5/125 µm (multimode), 50/125 µm (multimode), 100/140 µm, and 85/125 µm. This broad compatibility allows integration with both legacy and modern fiber infrastructure, providing flexibility for network upgrades or mixed-environment deployments.
How far can this converter transmit data over fiber?
This media converter supports transmission distances up to 40 kilometers (approximately 24.85 miles) when using appropriate fiber optic cabling. The maximum distance applies to both 100Base-FX and 100Base-EX operation, making it suitable for campus networks, industrial sites, or any application requiring extended reach beyond copper Ethernet limitations.
What mounting options are available for installation?
The converter offers three mounting methods: DIN rail mounting for industrial control panels, wall mounting using standard hardware, and rack mounting for data center or network closet installations. This versatility allows deployment in various environments including manufacturing facilities, equipment rooms, or remote locations where space optimization is important.
What is included in the warranty coverage?
Perle provides a lifetime limited warranty for this media converter, covering defects in materials and workmanship for the product's usable life. This warranty reflects the device's industrial-grade construction and reliability expectations for continuous operation in demanding network environments.
