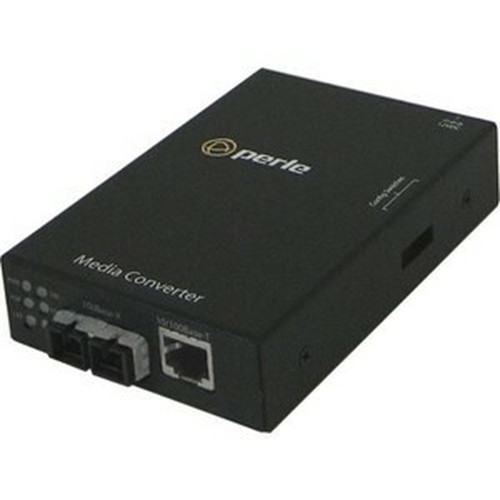

Perle 05050484 S-110-S1SC20D Fast Ethernet Media Converter - 1x RJ-45 to 1x SC Fiber - 10/100Base-TX - 20 km Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The S-110-S1SC20D operates as a transparent media converter, converting electrical signals from twisted-pair copper to optical signals for fiber transmission. It supports both 10Base-T and 100Base-TX Ethernet standards on the copper side and 100Base-BX on the fiber side, ensuring compatibility with existing network equipment.
The converter uses SC connectors for the fiber interface, which are widely used in single-mode fiber installations. It requires external power via the included US power cord and operates within standard environmental conditions for reliable performance in various settings.
Key Product Advantages
This media converter extends network segments beyond the 100-meter limit of copper cabling, enabling cost-effective fiber connectivity for distance-critical applications. Its plug-and-play design requires no configuration, simplifying deployment and reducing setup time.
Distance Extension
Supports fiber runs up to 20 km, ideal for connecting buildings or remote network nodes.
- Eliminates copper distance limitations
- Reduces signal degradation over long runs
Mounting Flexibility
Offers rack, wall, rail, or external placement options to fit various installation environments.
- Saves space in crowded racks
- Adapts to industrial or office layouts
Deployment / Use Cases
The S-110-S1SC20D is commonly used to integrate fiber backbones into existing copper-based networks, such as in campus environments, manufacturing facilities, or surveillance systems where long-distance connectivity is required.
Typical applications include extending network connections between buildings, linking remote switches or routers over fiber, and upgrading network infrastructure to support future fiber expansion without replacing core copper equipment.
Building-to-Building Links
Connect separate facilities over fiber for secure, high-bandwidth data transfer without interference from electrical noise.
Industrial Networking
Deploy in harsh environments where fiber's immunity to EMI and longer distances improve network reliability.
Physical Profile
The converter has a compact footprint measuring 1.02 inches in height, 3.15 inches in width, and 4.72 inches in depth, with a lightweight design of approximately 300 grams. Its external enclosure supports multiple mounting methods, including rack ears for standard 19-inch racks, wall-mounting brackets, rail clips for DIN rails, or standalone placement on a flat surface.
- Width
- 3.15" (80 mm)
- Depth
- 4.72" (120 mm)
- Height
- 1.02" (26 mm)
- Weight
- 300 g
What's in the Box
The package includes the S-110-S1SC20D Fast Ethernet Stand-Alone Media and Rate Converter and a US power cord for immediate deployment.
Highlights
- Converts RJ-45 copper to SC fiber for extended network reach
- Supports distances up to 20 km over single-mode fiber
- 10/100Base-TX and 100Base-BX network technology compatibility
- Plug-and-play operation with no configuration required
- Rack, wall, rail, and external mounting options
- Compact design with dimensions of 1.02" H × 3.15" W × 4.72" D
- Includes US power cord for quick setup
- Lifetime limited warranty for long-term reliability
- Environmentally friendly manufacturing
- Made in Canada
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05050484 |
| Brand Name | Perle |
| Product Model | S-110-S1SC20D |
| Product Name | S-110-S1SC20D Fast Ethernet Stand-Alone Media and Rate Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Network & Communication | |
| Network Technology | 10/100Base-TX,100Base-BX |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Wall Mountable,External,Rail-mountable |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
| Weight (Approximate) | 300 g |
| Miscellaneous | |
| Package Contents | S-110-S1SC20D Fast Ethernet Stand-Alone Media and Rate Converter US Power Cord |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle S-110-S1SC20D converts Fast Ethernet signals from a standard RJ-45 copper port to a single SC fiber optic port, allowing network connections to extend up to 20 kilometers. It bridges copper and fiber segments transparently without requiring configuration.
What is the maximum distance supported?
This converter supports fiber optic cable runs up to 20 kilometers, making it suitable for long-distance network extensions beyond the 100-meter limit of typical copper Ethernet cabling.
What types of mounting options are available?
The converter offers versatile mounting including rack-mountable for standard 19-inch racks, wall-mountable for space-constrained installations, rail-mountable for DIN rails in industrial settings, and external placement for standalone use.
What is included in the package?
The package contains the S-110-S1SC20D Fast Ethernet Stand-Alone Media and Rate Converter and a US power cord, providing everything needed for immediate deployment.
