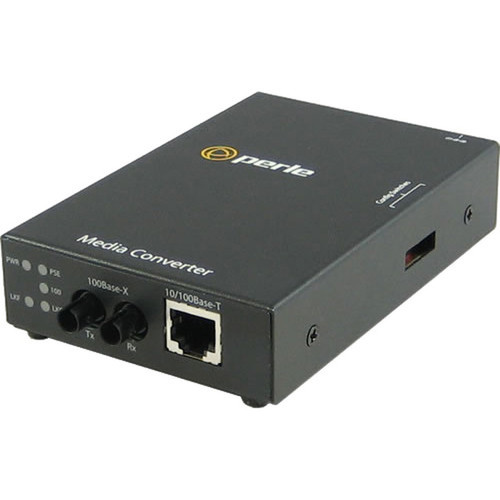

Perle 05090210 S-110P-M2ST2-XT Media Converter - 1x PoE RJ-45 to 1x ST Multi-mode Fiber - 10/100Base-TX/FX - 2 km - Desktop/Rack/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on 10/100Base-TX and 100Base-FX standards, delivering data transfer rates up to 100 Mbps. The PoE RJ-45 port supplies power to connected devices, simplifying cabling and reducing infrastructure costs. The ST port uses multi-mode fiber with a 2 km maximum distance, suitable for medium-range network segments.
The device supports both optical fiber and twisted pair media, ensuring compatibility with existing network components. Its duplex ST connector design maintains bidirectional data flow, while the compact dimensions of 1" H x 3.10" W x 4.70" D (25.40 mm x 78.74 mm x 119.38 mm) allow for space-efficient installations.
This section brings together practical product details such as Total Number of Ports, DVI, USB, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The S-110P-M2ST2-XT media converter provides a cost-effective solution for extending network reach and integrating fiber optic capabilities. Its PoE functionality eliminates the need for separate power supplies at remote endpoints, streamlining deployment and reducing total cost of ownership.
Extended Network Reach
Converts Ethernet to fiber optic signals, enabling reliable data transmission over 2 km distances without signal degradation, ideal for connecting remote offices or equipment.
- 2 km maximum distance
- Multi-mode fiber support
- 62.5/125 µm cable compatibility
Flexible Installation Options
Supports desktop, rack, rail, and wall mounting, allowing integration into diverse environments from server rooms to industrial settings.
- Multiple form factors
- Compact footprint
- 317.5 g lightweight design
Simplified Power Management
The integrated PoE port delivers power over the Ethernet connection, reducing cabling complexity and enabling deployment of powered devices like IP cameras or wireless access points.
- Single-cable power and data
- Reduced infrastructure costs
- Compatible with PoE devices
Deployment / Use Cases
This media converter is ideal for scenarios requiring network extension beyond standard copper cable limits. It effectively bridges gaps between Ethernet-based devices and fiber optic backbones, maintaining data integrity across longer distances.
Common applications include connecting remote IP cameras in surveillance systems, linking network switches in multi-building campuses, and integrating industrial equipment in manufacturing environments. The PoE capability supports powered devices like VoIP phones or wireless access points, while the multi-mode fiber compatibility suits medium-range data center interconnects or office network expansions.
Surveillance & Security
Extend network reach to remote IP cameras over fiber, utilizing PoE to power cameras without separate electrical wiring.
Campus & Office Networks
Connect buildings or floors with fiber backbones, converting signals for Ethernet devices while maintaining high-speed data transfer.
Physical Profile
The media converter features a compact, durable design measuring 1" H x 3.10" W x 4.70" D (25.40 mm x 78.74 mm x 119.38 mm) and weighing approximately 317.5 g. Its small footprint allows for discreet placement in tight spaces, while the multiple mounting options provide installation versatility. The unit includes a power strain relief strap for secure cable management, and its environmentally compliant construction meets REACH, RoHS, and WEEE standards.
- Width
- 3.10" (78.74 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 317.5 g
What's in the Box
The package includes the S-110P-M2ST2-XT media converter and a power strain relief strap, ensuring ready-to-deploy functionality with essential accessories for secure installation.
Highlights
- Converts 10/100Base-TX Ethernet to 100Base-FX multi-mode fiber optic signals
- Features 1 PoE RJ-45 port for power and data over a single cable
- Supports up to 2 km distance with 62.5/125 µm multi-mode fiber
- Compact design with desktop, rack, rail, and wall mounting options
- Provides data transfer rates up to 100 Mbps for network expansion
- Includes power strain relief strap for secure cable management
- Environmentally compliant with REACH, RoHS, and WEEE standards
- Manufactured in Canada with lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05090210 |
| Brand Name | Perle |
| Product Model | S-110P-M2ST2-XT |
| Product Name | S-110P-M2ST2-XT Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| Network & Communication | |
| Network Technology | 10/100Base-TX,100Base-FX |
| Physical Characteristics | |
| Form Factor | Desktop,Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 317.5 g |
| Miscellaneous | |
| Package Contents | S-110P-M2ST2-XT Media Converter Power Strain Relief Strap |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle S-110P-M2ST2-XT media converter bridges Ethernet and fiber optic networks by converting signals between 10/100Base-TX twisted pair and 100Base-FX multi-mode fiber. It enables data transmission over distances up to 2 km, extending network reach beyond standard copper cable limits while maintaining signal integrity.
What types of ports does it have?
This media converter has two ports: one Power over Ethernet (PoE) RJ-45 port that delivers both data and power, and one duplex ST port for multi-mode fiber optic connections. The RJ-45 port supports 10/100Base-TX standards, while the ST port handles 100Base-FX signals.
What is the maximum distance supported?
The device supports a maximum distance of 2 kilometers when using 62.5/125 µm multi-mode fiber optic cable. This extended reach makes it suitable for connecting network segments across buildings or large facilities where copper Ethernet would be insufficient.
Can it be mounted in a rack?
Yes, the media converter supports multiple mounting options including rack-mountable, desktop, rail-mountable, and wall mountable configurations. Its compact dimensions of 1" H x 3.10" W x 4.70" D allow for flexible installation in server racks, on walls, or on desktops as needed.
Does it support Power over Ethernet?
Yes, the RJ-45 port provides Power over Ethernet (PoE) functionality, delivering both data and electrical power over a single cable. This eliminates the need for separate power supplies at remote endpoints, simplifying installation for devices like IP cameras, wireless access points, or VoIP phones.
What type of fiber optic cable is compatible?
The media converter is compatible with multi-mode fiber optic cables with 62.5/125 µm core/cladding specifications. It uses ST connectors in a duplex configuration for bidirectional data transmission, supporting 100Base-FX network technology for reliable fiber optic connectivity.
