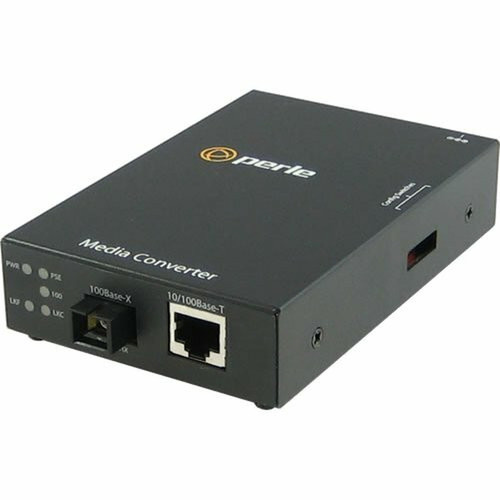

Perle 05090240 S-110P-S1SC20U-XT Media Converter - 1x PoE RJ-45 to Single-mode SC Fiber - 20 km - 10/100Base-TX - 100Base-BX-U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter features one PoE-enabled RJ-45 port and one SC fiber port, supporting single-mode fiber for long-distance connections. It converts between 10/100Base-TX Ethernet over twisted pair and 100Base-BX-U upstream signaling over fiber, maintaining signal integrity across 20 km distances with minimal loss.
The device operates without a management port, offering a plug-and-play setup for straightforward integration. Its compact chassis measures 1 inch in height, 3.10 inches in width, and 4.70 inches in depth, weighing approximately 317.5 grams for easy handling and installation.
This section brings together practical product details such as Total Number of Ports, DVI, USB, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The S-110P-S1SC20U-XT excels in extending network reach with fiber optic reliability while simplifying deployments with integrated PoE. Its robust construction and compliance with environmental standards ensure durability in diverse operating conditions.
Long-Distance Connectivity
Supports up to 20 km over single-mode fiber, ideal for connecting remote sites or extending networks beyond copper limitations.
- Minimal signal loss over fiber
- Suitable for outdoor or industrial runs
Flexible Power Delivery
The PoE RJ-45 port powers compatible devices, reducing cable clutter and installation costs by eliminating separate power supplies.
- Simplifies deployments for IP cameras and APs
- Reduces infrastructure requirements
Versatile Mounting Options
Can be installed on walls, rails, racks, or desktops, adapting to various environments from server rooms to field locations.
- Compact design saves space
- Easy to reposition as needs change
Deployment / Use Cases
This media converter is ideal for extending Ethernet networks over fiber where copper cabling is impractical or distance limits are exceeded. Common applications include connecting buildings across campuses, linking security cameras in remote areas, or integrating industrial equipment in harsh environments.
In PoE scenarios, it powers devices like wireless access points or VoIP phones while transmitting data, streamlining installations in offices or warehouses. Its rugged form factor and environmental compliance make it suitable for both indoor and protected outdoor use.
Campus Network Extension
Connect multiple buildings with fiber backbones, using the converter to interface with existing copper-based network equipment.
Surveillance System Integration
Deploy IP cameras in distant locations, leveraging PoE for power and fiber for reliable video transmission over long distances.
Physical Profile
The converter's slim profile (1" height) and lightweight design facilitate installation in tight spaces, such as network cabinets or wall enclosures. Its dimensions of 3.10" width and 4.70" depth provide a stable base for desktop use, while included mounting hardware supports secure attachment in rack or rail configurations.
- Width
- 3.10" (78.74 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 317.5 g
What's in the Box
The package includes the S-110P-S1SC20U-XT media converter and a power strain relief strap for secure cable management.
Package contents include S-110P-S1SC20U-XT Media Converter Power Strain Relief Strap, S-110P-S1SC20U-XT Media Converter. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Converts Ethernet to single-mode SC fiber with 20 km reach
- Includes one PoE RJ-45 port for powering connected devices
- Supports 10/100Base-TX and 100Base-BX-U networking standards
- Wall, rack, rail, and desktop mountable for flexible installation
- Compact design with dimensions of 1" H × 3.10" W × 4.70" D
- Weighs only 317.5 g for easy handling and deployment
- Compliant with REACH, RoHS, and WEEE environmental standards
- Backed by a lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05090240 |
| Brand Name | Perle |
| Product Model | S-110P-S1SC20U-XT |
| Product Name | S-110P-S1SC20U-XT Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 20 km |
| Network & Communication | |
| Network Technology | 10/100Base-TX,100Base-BX-U |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Rail-mountable,Rack-mountable,Desktop |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 317.5 g |
| Miscellaneous | |
| Package Contents | S-110P-S1SC20U-XT Media Converter Power Strain Relief Strap |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
It converts network signals between twisted pair Ethernet (via an RJ-45 port) and single-mode fiber optic (via an SC port), extending connectivity up to 20 km. The RJ-45 port also supports Power over Ethernet to deliver both data and power to compatible devices.
What types of fiber does it support?
This converter supports single-mode fiber, which is optimized for long-distance transmissions with minimal signal loss. It uses SC connectors for reliable fiber optic connections in network deployments.
How far can it transmit data?
It supports distances up to 20 kilometers over single-mode fiber, making it suitable for connecting remote locations like separate buildings or outdoor installations where copper cabling would be insufficient.
Does it include Power over Ethernet?
Yes, the RJ-45 port provides Power over Ethernet, allowing you to power devices such as IP cameras or wireless access points directly through the network cable, simplifying installations by eliminating separate power sources.
What are the mounting options?
The converter can be mounted on walls, rails, racks, or placed on a desktop. Its compact size and versatile form factor make it easy to install in various environments, from data centers to industrial settings.
What is the warranty coverage?
Perle offers a lifetime limited warranty for this media converter, ensuring long-term reliability and support. The product also complies with environmental standards like REACH, RoHS, and WEEE for sustainable use.
