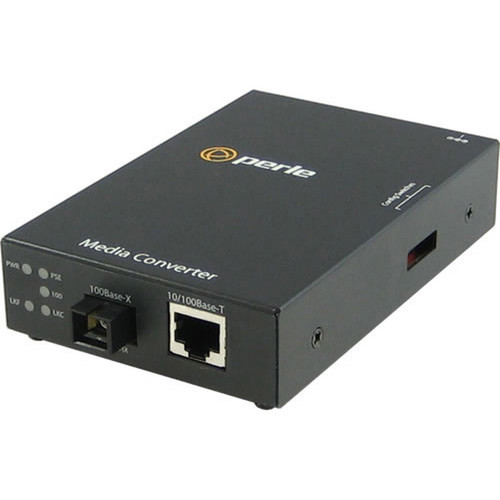

Perle 05084144 S-110P-S1SC40D Media Converter - 1x PoE RJ-45 to SC Fiber - 10/100Base-TX - 100Base-BX-D - 40 km - Rail-mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with 10/100Base-TX technology on the copper side, providing data transfer rates up to 100 Mbps, and 100Base-BX-D technology on the fiber side for bidirectional communication over single-mode fiber. The PoE RJ-45 port supports IEEE 802.3af/at standards, delivering up to 30W of power to compatible devices such as IP cameras, wireless access points, or VoIP phones, eliminating the need for separate power sources at remote locations.
The SC fiber port uses standard SC connectors for easy integration with existing fiber cabling, ensuring low signal loss and high reliability over the 40 km maximum distance. The converter's compact dimensions of 1" height, 3.10" width, and 4.70" depth make it suitable for high-density installations, while its 300 g weight minimizes load on mounting structures.
Key Product Advantages
The Perle S-110P-S1SC40D media converter offers distinct advantages for network expansion and fiber optic integration. Its combination of PoE capability and long-distance fiber support reduces infrastructure costs by consolidating power and data transmission over a single cable, ideal for remote device deployment. The robust construction and versatile mounting options ensure durability in varied environments, from controlled data centers to harsh industrial sites.
PoE Integration
Delivers both data and power through the RJ-45 port, simplifying installation for PoE-enabled devices and reducing cable clutter.
- Supports IEEE 802.3af/at standards
- Eliminates need for local power outlets
Fiber Distance Extension
Enables network segments up to 40 km, far exceeding copper Ethernet limits, with reliable signal integrity over fiber optic cable.
- Uses 100Base-BX-D technology
- SC connector for standard compatibility
Deployment / Use Cases
This media converter is engineered for scenarios requiring extended network reach or fiber optic uplinks. Common deployments include connecting remote buildings in campus networks, linking surveillance cameras in perimeter security systems, and integrating industrial equipment in manufacturing plants where electromagnetic interference affects copper cables. The PoE functionality makes it particularly valuable for powering devices in locations without accessible electrical outlets, such as outdoor Wi-Fi hotspots or ceiling-mounted access points.
In data center environments, the converter can bridge legacy copper switches to fiber backbone networks, facilitating upgrades without replacing entire infrastructure. Its rail-mountable design suits network closets and server racks, while wall mounting options support office or retail installations where space is limited. The environmentally friendly materials and lifetime warranty further ensure long-term reliability and reduced maintenance costs.
Surveillance Systems
Extend network coverage to remote IP cameras with PoE, using fiber to avoid signal degradation over long distances.
Industrial Networking
Connect machinery in factories or warehouses where fiber optic immunity to EMI ensures stable data transmission.
Physical Profile
The converter features a slim, durable chassis measuring 1" x 3.10" x 4.70" (25.40 mm x 78.74 mm x 119.38 mm), designed for efficient use of space in crowded network racks or enclosures. Its 300 g weight allows easy handling and mounting without heavy support structures. The rail-mountable, rack-mountable, and wall-mountable options provide installation flexibility, with included hardware for secure attachment in diverse settings from data centers to outdoor cabinets.
- Width
- 3.10" (78.74 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 300 g
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-box experience.
Highlights
- Converts 10/100Base-TX Ethernet to 100Base-BX-D fiber optic with 40 km range
- Includes 1 PoE RJ-45 port for data and power delivery up to 30W
- Features 1 SC fiber port for standard optical connectivity
- Supports rail, rack, and wall mounting for flexible installation
- Compact dimensions of 1" x 3.10" x 4.70" and 300 g weight
- Environmentally friendly design with Canadian origin
- Lifetime warranty for long-term reliability
- Includes 48V DC adapter and power strain relief strap
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05084144 |
| Brand Name | Perle |
| Product Model | S-110P-S1SC40D |
| Product Name | S-110P-S1SC40D Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of PoE (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 40 km |
| Network & Communication | |
| Network Technology | 10/100Base-TX,100Base-BX-D |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 300 g |
| Miscellaneous | |
| Package Contents | S-110P-S1SC40D Media Converter 48V DC Adapter Power Strain Relief Strap |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
This media converter bridges copper Ethernet and fiber optic networks by converting 10/100Base-TX signals to 100Base-BX-D signals. It allows you to extend network connections up to 40 kilometers using fiber optic cable, while providing one PoE RJ-45 port to deliver both data and power to connected devices like IP cameras or access points.
What types of fiber connectors does it support?
It supports SC fiber connectors, which are standard for single-mode fiber optic cabling. The SC port is designed for reliable, low-loss connections, making it compatible with common fiber infrastructure in enterprise and industrial networks.
How is the media converter powered?
The converter is powered by the included 48V DC adapter, which plugs into a standard electrical outlet. The PoE RJ-45 port can also deliver power to connected devices, but the converter itself requires the DC adapter for operation.
What mounting options are available?
It supports rail-mountable, rack-mountable, and wall-mountable installations. This flexibility allows deployment in data center racks, network closets, or on walls in offices or industrial settings, with hardware included for secure attachment.
