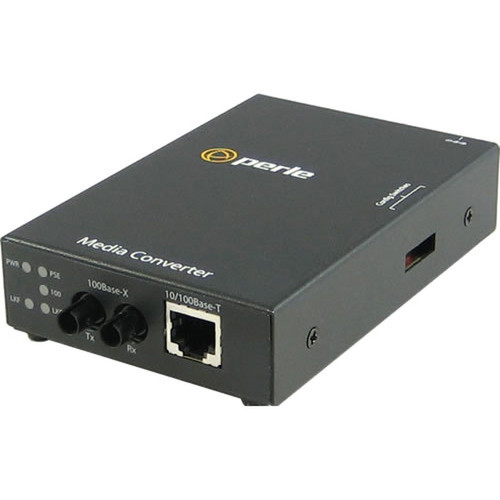

Perle 05084064 S-110P-S2ST40 Media Converter - 1x PoE RJ-45 to 1x ST Fiber - 40 km Reach - Rail/Rack/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on 100Base-EX and 10/100Base-TX network technologies, ensuring compatibility with standard Ethernet equipment and fiber optic cabling. The PoE RJ-45 port delivers both data and power to connected devices, such as IP cameras or wireless access points, eliminating the need for separate power sources and simplifying deployments.
The ST duplex fiber port uses industry-standard ST connectors for reliable fiber optic connections, supporting duplex communication for full-duplex data transmission. With a maximum supported distance of 40 kilometers, it enables long-range network extensions without signal degradation, ideal for connecting remote buildings or expanding network coverage across large facilities.
Key Product Advantages
The S-110P-S2ST40 combines PoE functionality with fiber conversion in a single device, reducing hardware clutter and installation complexity. Its compact design and multiple mounting options allow for flexible placement in space-constrained environments, while the included 48V DC adapter and strain relief strap ensure secure power delivery and cable management.
PoE Integration
Delivers both data and power through the RJ-45 port, supporting PoE-compatible devices without additional power injectors.
- Simplifies wiring
- Reduces power outlet requirements
Fiber Extension
Extends network reach up to 40 kilometers using fiber optic cabling, ideal for long-distance connections with minimal signal loss.
- ST duplex port
- 100Base-EX technology
Deployment / Use Cases
This media converter is well-suited for environments where extending Ethernet networks over fiber is necessary, such as connecting buildings across a campus or integrating fiber backbones into existing copper-based networks. Its PoE capability makes it particularly useful for powering remote devices like security cameras or wireless access points in outdoor or hard-to-reach locations.
Common applications include industrial automation, surveillance systems, and telecommunications infrastructure, where reliable long-distance connectivity and power delivery are critical. The rail, rack, or wall mounting options facilitate installation in server rooms, network cabinets, or on walls, adapting to various spatial constraints and organizational needs.
Campus Networking
Connect multiple buildings over fiber optic cables while providing PoE to endpoint devices, ensuring consistent network performance across large areas.
Surveillance Systems
Power and connect IP cameras over long distances using fiber, enhancing security coverage without compromising on data integrity or power reliability.
Physical Profile
Measuring 1" (25.40 mm) in height, 3.10" (78.74 mm) in width, and 4.70" (119.38 mm) in depth, the S-110P-S2ST40 has a compact footprint that fits easily into tight spaces. Its lightweight design at approximately 300 grams allows for easy handling and installation, while the rail, rack, and wall mounting capabilities provide versatile placement options to suit different networking setups.
- Width
- 3.10" (78.74 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 300 g
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box solution.
Highlights
- Converts 10/100Base-TX Ethernet to 100Base-EX fiber optic signals
- Includes one PoE RJ-45 port for data and power delivery
- Features one ST duplex fiber port for reliable fiber connections
- Supports maximum distance of 40 kilometers (24.85 miles)
- Compact design with rail, rack, and wall mounting options
- Includes 48V DC adapter and power strain relief strap
- Environmentally friendly construction
- Manufactured in Canada with lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05084064 |
| Brand Name | Perle |
| Product Model | S-110P-S2ST40 |
| Product Name | S-110P-S2ST40 Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of PoE (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Media & Performance | |
| Maximum Distance Supported | 40 km |
| Network & Communication | |
| Network Technology | 100Base-EX,10/100Base-TX |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 300 g |
| Miscellaneous | |
| Package Contents | S-110P-S2ST40 Media Converter 48V DC Adapter Power Strain Relief Strap |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle S-110P-S2ST40 media converter bridges Ethernet and fiber optic networks by converting 10/100Base-TX copper signals to 100Base-EX fiber signals. It extends network reach up to 40 kilometers while providing Power over Ethernet through its RJ-45 port, enabling both data transmission and power delivery to connected devices in a single unit.
What types of ports does it have?
This media converter has two ports: one PoE RJ-45 port for Ethernet connectivity with power delivery, and one ST duplex fiber port for fiber optic connections. The ST port uses standard ST connectors for duplex communication, supporting full-duplex data transmission over fiber cabling.
How far can it extend a network?
It supports a maximum distance of 40 kilometers (approximately 24.85 miles) when using fiber optic cabling. This extended reach makes it suitable for long-distance network extensions, such as connecting remote buildings or expanding coverage across large facilities without signal degradation.
What mounting options are available?
The S-110P-S2ST40 offers versatile mounting options including rail-mountable, rack-mountable, and wall-mountable configurations. This flexibility allows for installation in various environments like server racks, telecom closets, or on walls, adapting to space constraints and organizational needs.
