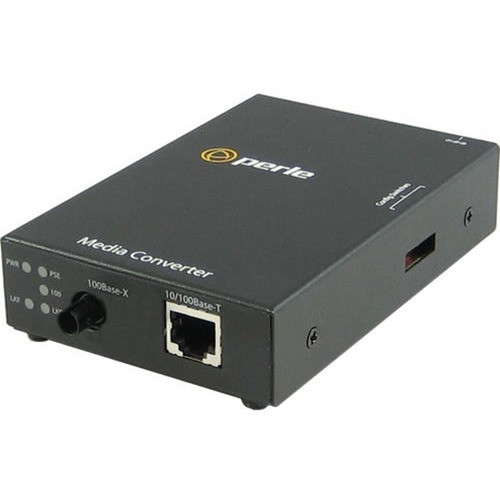

Perle 05081304 S-110PP-M1ST2U Media Converter - 1x PoE+ RJ-45 & 1x ST Multi-mode Fiber - 2 km - 10/100Base-T - Rail/Rack/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter implements Fast Ethernet technology, specifically 10/100Base-T and 100Base-BX-U standards, ensuring compatibility with existing network infrastructure. The PoE+ port adheres to IEEE 802.3at standards, providing up to 30 watts of power to compatible devices such as IP cameras, wireless access points, or VoIP phones.
Fiber connectivity uses ST connectors, a common choice for multi-mode installations, with support for dual wavelengths to optimize signal integrity over distances. The unit converts electrical signals from twisted pair to optical signals for fiber transmission, effectively eliminating electromagnetic interference and ground loop issues common in copper runs.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The S-110PP-M1ST2U extends network reach reliably while simplifying deployments with integrated PoE+ and versatile mounting options.
Extended Distance Coverage
Supports fiber runs up to 2 kilometers, far exceeding the 100-meter limit of standard copper Ethernet, ideal for connecting buildings or remote network segments.
- Eliminates signal degradation over long copper runs
- Maintains full 100 Mbps speed over fiber
PoE+ Integration
Delivers both data and power through the RJ-45 port, reducing cable clutter and installation costs for powered devices like security cameras or access points.
- Simplifies power sourcing for remote devices
- Compliant with IEEE 802.3at for broad compatibility
Installation Flexibility
Multiple mounting options accommodate diverse environments, from data center rails to wall-mounted network closets, without requiring dedicated rack space.
- Rail-mountable for DIN rail systems
- Compact footprint minimizes space requirements
Deployment / Use Cases
This media converter is suited for scenarios where network extension, interference isolation, or PoE device connectivity across fiber is required. It effectively bridges copper-based LAN segments to fiber backbones in educational, industrial, or commercial settings.
Common applications include connecting remote security cameras over fiber with PoE+ power, extending network links between buildings on a campus, or integrating fiber segments into existing copper networks for improved signal integrity. The unit's small size and adaptable mounting make it ideal for space-constrained installations like control panels or telecommunications cabinets.
Building-to-Building Connectivity
Use fiber to link network equipment across separate structures, avoiding lightning risks and electromagnetic interference associated with copper cables between buildings.
PoE Device Extension
Power and connect IP cameras, wireless access points, or VoIP phones over long distances by converting copper PoE+ signals to fiber and back.
Physical Profile
The converter measures 1" (25.40 mm) in height, 3.10" (78.74 mm) in width, and 4.70" (119.38 mm) in depth, with an approximate weight of 10.58 oz (300 g). Its compact, low-profile design fits easily into tight spaces, while the rugged construction ensures reliable operation in varied environments. Multiple mounting options include rail-mountable for industrial DIN rails, rack-mountable for standard 19" racks, wall-mountable with optional hardware, or desktop placement for temporary setups.
- Width
- 3.10" (78.74 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 10.58 oz (300 g)
- Length
- 1310 nm,1510 nm
What's in the Box
The package includes the S-110PP-M1ST2U transceiver/media converter and a 100-240V AC adapter for immediate deployment.
Package contents include S-110PP-M1ST2U Transceiver/Media Converter 100-240v AC, Adapter, S-110PP-M1ST2U Transceiver/Media Converter. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Converts Fast Ethernet between twisted pair and multi-mode fiber optic cables
- Includes one PoE+ RJ-45 port to power connected devices up to 30W
- Supports ST connector multi-mode fiber with 1310 nm and 1510 nm wavelengths
- Extends network distance up to 2 kilometers (1.24 miles)
- Operates on 10/100Base-T and 100Base-BX-U network standards
- Flexible mounting: rail, rack, wall, or desktop installation
- Compact dimensions: 1" H x 3.10" W x 4.70" D (25.40 mm x 78.74 mm x 119.38 mm)
- Includes AC adapter for 100-240V power input
- Manufactured in Canada with lifetime limited warranty
- Environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05081304 |
| Brand Name | Perle |
| Product Model | S-110PP-M1ST2U |
| Product Name | S-110PP-M1ST2U Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE+ (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1510 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,100Base-BX-U |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Wall Mountable,Desktop |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 10.58 oz (300 g) |
| Miscellaneous | |
| Package Contents | S-110PP-M1ST2U Transceiver/Media Converter 100-240v AC, Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of cables does this media converter support?
It supports twisted pair copper Ethernet cables (like Cat5e/Cat6) on the RJ-45 port and multi-mode fiber optic cables with ST connectors on the fiber port. The fiber must be 62.5/125 µm core/cladding specification for optimal performance over distances up to 2 kilometers.
How does the PoE+ port work on this converter?
The PoE+ port delivers both data and power over a single Ethernet cable, compliant with IEEE 802.3at standards. It provides up to 30 watts to connected devices such as IP cameras, wireless access points, or VoIP phones, simplifying installation by eliminating the need for separate power sources at remote locations.
What is the maximum distance supported by this media converter?
It supports fiber optic connections up to 2 kilometers (1.24 miles) when using multi-mode fiber with 62.5/125 µm core/cladding. This extends network segments far beyond the 100-meter limit of standard copper Ethernet, making it suitable for connecting buildings or long-distance runs.
Can this converter be mounted in a rack or on a wall?
Yes, it offers multiple mounting options: rail-mountable for DIN rail systems, rack-mountable for standard 19" racks, wall-mountable with appropriate hardware, or desktop placement. Its compact size (1" H x 3.10" W x 4.70" D) allows flexible installation in various environments without requiring dedicated rack space.
What network speeds does this media converter support?
It supports Fast Ethernet speeds up to 100 Mbps, compatible with 10/100Base-T for copper and 100Base-BX-U for fiber. This ensures reliable data transmission for typical network applications like file sharing, video streaming, or VoIP, without the need for Gigabit infrastructure.
What is included in the package with this media converter?
The package includes the S-110PP-M1ST2U transceiver/media converter unit and a 100-240V AC adapter. This provides everything needed for basic deployment, allowing you to connect power and cables immediately upon unboxing.
