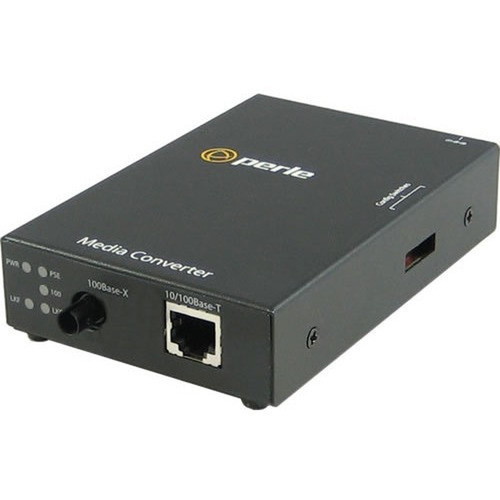

Perle 05081294 S-110PP-S1ST20D Transceiver/Media Converter - 1x PoE+ RJ-45 to 1x ST Single-mode Fiber - 20 km - 1310/1550 nm
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on Fast Ethernet technology, delivering data transfer rates up to 100 Mbps over both twisted pair and fiber optic media. It converts electrical signals from the RJ-45 port to optical signals for the ST fiber port, supporting single-mode fiber for long-distance applications.
The integrated PoE+ port provides up to 30 watts of power per the IEEE 802.3at standard, allowing it to power devices like IP cameras, wireless access points, or VoIP phones directly through the network cable. This eliminates the need for separate power supplies at remote locations.
Fiber Optic Specifications
Utilizes single-mode fiber with dual wavelengths of 1310 nm and 1550 nm, optimized for long-haul transmissions up to 20 kilometers with minimal signal loss.
Key Product Advantages
The S-110PP-S1ST20D combines extended network reach with power delivery, reducing infrastructure complexity and cost. Its PoE+ capability supports remote device deployment without local power sources, while the fiber optic conversion eliminates electromagnetic interference and extends distance beyond copper limitations.
For buyers comparing similar models, the strongest advantage is usually the balance between dependable day-to-day operation and a simpler rollout experience. That means less time spent troubleshooting fit, compatibility, or user adoption after installation, which is especially important for shared business environments and repeat purchasing decisions.
Deployment / Use Cases
This media converter is ideal for extending network connections between buildings, across campuses, or in industrial settings where distance exceeds standard copper cable limits. It effectively bridges gaps between wiring closets and remote endpoints while maintaining Fast Ethernet performance.
Common applications include connecting security cameras in perimeter monitoring, linking wireless access points in large facilities, or integrating network devices in manufacturing plants where fiber's immunity to electrical noise is critical. The desktop form factor also suits small office or temporary deployments outside dedicated network racks.
Building-to-Building Connectivity
Connect network segments between separate structures using single-mode fiber for reliable, high-bandwidth links unaffected by weather or electrical interference.
Remote Device Powering
Deploy PoE-powered devices like IP phones or sensors in locations without easy access to electrical outlets, using the converter's PoE+ port for both data and power.
Physical Profile
The converter has a compact design measuring 3.15" wide, 4.72" deep, and 1.02" high, with a weight of approximately 10.58 ounces. Its multi-mount capability includes rail, rack, desktop, and wall mounting options, providing installation flexibility for data centers, network cabinets, or office environments. The small footprint and lightweight construction facilitate easy placement in space-constrained areas.
- Width
- 3.15" (80 mm)
- Depth
- 4.72" (120 mm)
- Height
- 1.02" (26 mm)
- Weight
- 10.58 oz (300 g)
- Length
- 1310 nm,1550 nm
What's in the Box
The package includes the S-110PP-S1ST20D transceiver/media converter and a 100-240V AC adapter, providing all necessary components for immediate deployment.
Highlights
- Converts Fast Ethernet from RJ-45 to single-mode ST fiber.
- Includes one PoE+ port for powering remote devices up to 30W.
- Supports transmission distances up to 20 kilometers.
- Uses 1310 nm and 1550 nm wavelengths on single-mode fiber.
- Compatible with 10/100Base-T and 100Base-BX-D networks.
- Offers rail, rack, desktop, and wall mounting flexibility.
- Powered by a universal 100-240V AC adapter.
- Backed by a lifetime warranty and made in Canada.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05081294 |
| Brand Name | Perle |
| Product Model | S-110PP-S1ST20D |
| Product Name | S-110PP-S1ST20D Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE+ (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,100Base-BX-D |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Desktop,Wall Mountable |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
| Weight (Approximate) | 10.58 oz (300 g) |
| Miscellaneous | |
| Package Contents | S-110PP-S1ST20D Transceiver/Media Converter 100-240v AC, Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of media does this converter support?
The Perle S-110PP-S1ST20D supports both optical fiber and twisted pair copper media. It converts signals between an RJ-45 Ethernet port for twisted pair and an ST fiber port for single-mode fiber optic cable, enabling integration of fiber segments into copper-based networks.
What is the maximum distance supported over fiber?
This media converter supports a maximum distance of 20 kilometers (approximately 12.43 miles) when using single-mode fiber optic cable. This extended range is ideal for long-haul applications such as connecting buildings across a campus or linking remote network segments.
Does the PoE+ port provide power to connected devices?
Yes, the single PoE+ RJ-45 port delivers both data and power, supporting the IEEE 802.3at standard for up to 30 watts of power. This allows you to power devices like IP cameras, wireless access points, or VoIP phones directly through the network cable without needing separate power supplies.
What are the installation options for this converter?
The converter offers multiple installation options: it is rail-mountable for industrial settings, rack-mountable for data centers, desktop-ready for office use, and wall-mountable for space-efficient deployments. This flexibility makes it suitable for various environments from wiring closets to remote field locations.
What wavelengths does the fiber optic port support?
The ST fiber port supports dual wavelengths of 1310 nm and 1550 nm on single-mode fiber. These wavelengths are commonly used in long-distance fiber optic communications, providing reliable signal transmission with minimal attenuation over the supported 20 km distance.
What is included in the warranty for this product?
Perle provides a lifetime limited warranty for the S-110PP-S1ST20D transceiver/media converter. This warranty covers defects in materials and workmanship for the product's lifespan, offering long-term reliability assurance. The converter is also environmentally friendly and manufactured in Canada.
