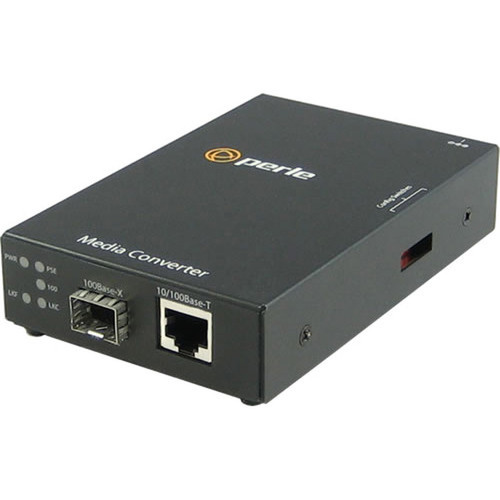

Perle 05090360 S-110PP-SFP-XT Media Converter - 1x PoE+ RJ-45 to SFP Slot - 10/100Base-TX - 0. 10 km - Desktop/Rail/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on 10/100Base-TX network technology, delivering data transfer rates up to 100 Mbps over twisted pair cabling. It supports a maximum distance of 0.10 km (100 meters) on copper, with the SFP slot accommodating various fiber optic modules for extended fiber runs beyond that range.
The integrated PoE+ port provides up to 30W of power per the IEEE 802.3at standard, simplifying installation by eliminating separate power supplies for compatible devices. The converter includes a power strain relief strap for secure cable management, and its fanless design ensures silent operation.
This section brings together practical product details such as Total Number of Ports, DVI, USB, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The S-110PP-SFP-XT combines media conversion with PoE+ delivery in a single, versatile unit, reducing clutter and simplifying network expansions. Its multi-mount form factor adapts to space-constrained installations without sacrificing functionality.
Flexible Mounting Options
Install the converter on a desktop, mount it on a wall, secure it to a DIN rail, or rack-mount it using optional accessories. This adaptability makes it suitable for telecom closets, industrial control panels, and office network cabinets.
- Desktop
- Wall Mountable
- Rail-mountable
- Rack-mountable
Environmental Responsibility
Manufactured in Canada with REACH, RoHS, and WEEE compliance, this converter meets stringent environmental standards. Its eco-friendly design minimizes hazardous substances and supports responsible recycling practices.
Deployment / Use Cases
Deploy the Perle media converter to extend twisted pair Ethernet segments over fiber optic cabling, overcoming distance limitations and electrical interference in industrial or outdoor settings. It is ideal for connecting remote devices in surveillance, access control, or IoT networks where both data and power are required.
Common applications include linking IP cameras with PoE+ support over long distances, integrating fiber backbones into existing copper-based LANs, and providing media conversion in harsh environments where copper performance degrades. The converter's small footprint and versatile mounting make it easy to integrate into existing infrastructure without major modifications.
Surveillance & Security
Power and connect PoE+ IP cameras over twisted pair, then extend the signal via fiber to a central NVR, ensuring reliable video transmission across large facilities or between buildings.
Industrial Networking
Use in manufacturing or utility plants to bridge Ethernet devices on the factory floor with fiber optic backbones, isolating sensitive equipment from electrical noise and grounding issues.
Physical Profile
The converter measures 1" (25.40 mm) in height, 3.10" (78.74 mm) in width, and 4.70" (119.38 mm) in depth, with a lightweight design at approximately 317.5 grams. Its sturdy metal enclosure provides durability for continuous operation, and the compact size allows installation in tight spaces such as network enclosures or behind equipment.
- Width
- 3.10" (78.74 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 317.5 g
What's in the Box
The package includes the S-110PP-SFP-XT Media Converter and a power strain relief strap, ensuring you have the essential components for immediate deployment. No additional accessories are required for basic desktop or wall-mounted setups.
Highlights
- Converts 10/100Base-TX twisted pair Ethernet to SFP fiber optic connections
- 1 PoE+ RJ-45 port delivers up to 30W for powered devices like IP cameras
- Supports maximum distance of 0.10 km over twisted pair cabling
- Single SFP slot for flexible fiber module compatibility
- Desktop, rail-mountable, rack-mountable, and wall-mountable form factor
- Fanless, silent operation ideal for office or industrial environments
- Manufactured in Canada with lifetime warranty
- REACH, RoHS, and WEEE compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05090360 |
| Brand Name | Perle |
| Product Model | S-110PP-SFP-XT |
| Product Name | S-110PP-SFP-XT Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE+ (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Distance Supported | 0.10 km |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Network Technology | 10/100Base-TX |
| Physical Characteristics | |
| Form Factor | Desktop,Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 317.5 g |
| Miscellaneous | |
| Package Contents | S-110PP-SFP-XT Media Converter Power Strain Relief Strap |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle S-110PP-SFP-XT Media Converter converts 10/100Base-TX Ethernet signals from twisted pair copper cabling to SFP-based fiber optic connections. It allows you to extend network segments beyond the 100-meter limit of copper by using fiber, while also providing PoE+ power through its RJ-45 port to devices like IP cameras or wireless access points.
What is the maximum distance supported?
This converter supports a maximum distance of 0.10 km (100 meters) over twisted pair copper cabling. For longer distances, you can insert an SFP fiber optic module into the slot, which enables fiber runs that extend significantly farther, depending on the module type and fiber cable used.
Does it support Power over Ethernet?
Yes, it includes one PoE+ (RJ-45) port compliant with the IEEE 802.3at standard, delivering up to 30W of power. This allows you to power compatible devices directly through the Ethernet cable, simplifying installations by eliminating the need for separate power supplies at remote locations.
How can I mount this converter?
The converter offers multiple mounting options: it can be placed on a desktop, mounted on a wall, attached to a DIN rail, or installed in a rack using optional accessories. This flexibility makes it suitable for various environments, from office network cabinets to industrial control panels.
What is included in the package?
The package contains the S-110PP-SFP-XT Media Converter and a power strain relief strap. The strain relief strap helps secure the power cable, preventing accidental disconnection and ensuring reliable operation in vibration-prone settings.
What is the warranty on this product?
Perle provides a lifetime limited warranty for this media converter, covering defects in materials and workmanship. This long-term warranty reflects the product's durability and reliability, giving you confidence in its performance for extended network deployments.
