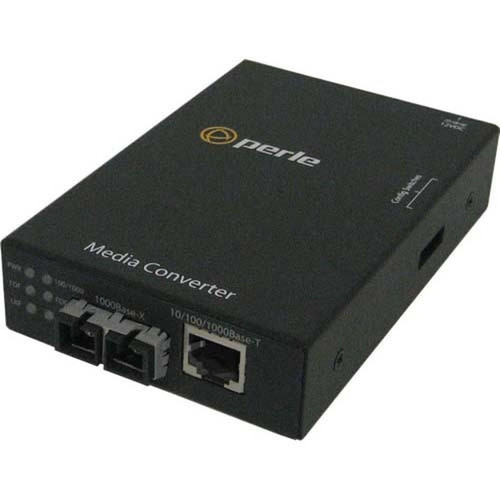

Perle 05040974 S-1110-M2SC2 Media Converter - 1 x RJ-45 to 1 x SC - 1000Base-LX - 10/100/1000Base-T - 2 km - Rail/Rack/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with 1000Base-LX technology on the fiber side, delivering up to 1000 Mbps data transfer rates over optical fiber. The copper interface auto-negotiates between 10, 100, and 1000 Mbps to ensure compatibility with existing network equipment.
The device supports a maximum transmission distance of 2 kilometers over multimode fiber, extending network reach beyond typical copper limitations. It maintains signal integrity across this distance, reducing latency and packet loss in extended network segments.
Key Product Advantages
The S-1110-M2SC2 offers a practical solution for integrating fiber optic capabilities into copper-based networks without requiring major infrastructure changes. Its compact design and multiple mounting options provide installation flexibility in constrained spaces.
Extended Network Reach
Converts copper Ethernet to fiber optic signals, supporting distances up to 2 km to overcome the 100-meter limitation of standard Cat5e/Cat6 cables.
- Eliminates distance constraints
- Reduces signal degradation
Versatile Installation
Rail, rack, and wall mounting capabilities allow deployment in various environments including data center cabinets, network closets, and industrial control panels.
- Multiple mounting options
- Space-efficient design
Backward Compatibility
Auto-negotiating RJ-45 port works with 10, 100, and 1000 Mbps Ethernet devices, ensuring seamless integration with existing network infrastructure.
- No configuration required
- Plug-and-play operation
Deployment / Use Cases
This media converter is ideal for extending network segments between buildings, across campuses, or within large facilities where fiber optic cabling is already installed or planned. It effectively bridges the gap between copper-based edge devices and fiber backbone networks.
Common applications include connecting remote switches or routers to central network cores, linking security cameras over long distances, and integrating industrial equipment in manufacturing environments. The rail-mountable form factor makes it particularly suitable for DIN rail installations in control panels and industrial automation systems.
Building-to-Building Connectivity
Extend network connections between separate structures using existing fiber infrastructure while maintaining Gigabit performance across the 2 km distance.
Industrial Networking
Deploy in manufacturing facilities or utility plants where DIN rail mounting simplifies installation in control cabinets and industrial enclosures.
Physical Profile
Measuring 1.02 inches in height, 3.15 inches in width, and 4.72 inches in depth (26 x 80 x 120 mm), this converter features a compact footprint that conserves valuable rack or panel space. The 300-gram weight ensures stable mounting without excessive load on supporting structures.
The device's form factor supports rail mounting for industrial applications, rack mounting for data center deployments, and wall mounting for office or closet installations. This versatility accommodates diverse environmental requirements while maintaining reliable operation.
- Width
- 3.15" (80 mm)
- Depth
- 4.72" (120 mm)
- Height
- 1.02" (26 mm)
- Weight
- 300 g
Highlights
- Converts copper Ethernet to SC fiber optic connections
- Supports 1000Base-LX technology for up to 1000 Mbps over fiber
- Maximum transmission distance of 2 kilometers
- Compatible with 50/125 µm and 62.5/125 µm multimode fiber
- Auto-negotiating RJ-45 port (10/100/1000Base-T)
- Rail, rack, and wall mounting options
- Compact dimensions: 1.02" H × 3.15" W × 4.72" D
- Lightweight design at approximately 300 grams
- Manufactured in Canada
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05040974 |
| Brand Name | Perle |
| Product Model | S-1110-M2SC2 |
| Product Name | S-1110-M2SC2 Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm,62.5/125 µm |
| Network & Communication | |
| Network Technology | 1000Base-LX,10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
| Weight (Approximate) | 300 g |
| Miscellaneous | |
| Country of Origin | Canada |
FAQ
What type of fiber optic cable does this media converter support?
The Perle S-1110-M2SC2 supports multimode fiber optic cables with 50/125 µm or 62.5/125 µm core/cladding specifications. It uses SC connectors for the fiber interface and is designed for 1000Base-LX operation over these multimode fiber types.
What is the maximum distance this converter can transmit data?
This media converter supports data transmission up to 2 kilometers (approximately 1.24 miles) over multimode fiber optic cable. This extended reach makes it suitable for connecting network segments between buildings or across large facilities where copper Ethernet distance limitations would be exceeded.
What mounting options are available for this device?
The converter offers three mounting methods: rail-mountable for DIN rail installations in industrial settings, rack-mountable for standard 19-inch rack deployment in data centers, and wall-mountable for office or closet installations. This versatility allows flexible placement based on your specific environmental requirements.
What Ethernet speeds does the RJ-45 port support?
The RJ-45 copper port auto-negotiates between 10 Mbps, 100 Mbps, and 1000 Mbps (Gigabit) Ethernet speeds. This ensures backward compatibility with existing network equipment while providing Gigabit performance when connected to compatible switches, routers, or end devices.
