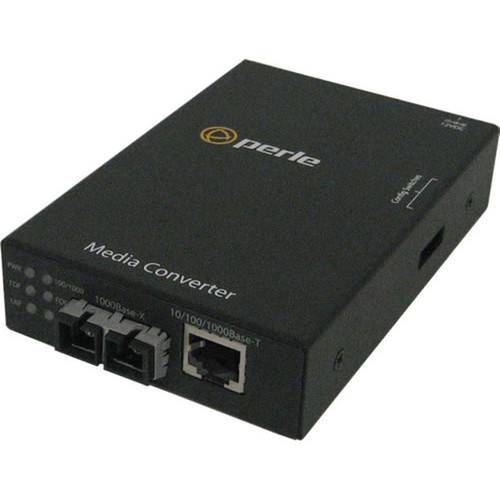

Perle 05090670 S-1110-XT 10/100/1000 to Fiber Industrial Temperature Media Converter - 1 x RJ-45 - 1 x SC Duplex - Multi-mode - Rail/Rack/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The S-1110-XT features a straightforward port configuration with one RJ-45 port for copper Ethernet connections and one SC duplex port for fiber optic links. It operates at Gigabit Ethernet speeds, supporting auto-negotiation for 10/100/1000Base-T on the copper side and 1000Base-SX on the fiber side.
This media converter is engineered for industrial temperature ranges, ensuring stable performance in environments where standard commercial converters might fail. It does not include a management port, focusing instead on plug-and-play functionality for simple network extension tasks.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The S-1110-XT offers several advantages for network deployments requiring copper-to-fiber conversion in demanding conditions.
Industrial Durability
Built to withstand industrial temperature ranges, this converter ensures reliable operation in manufacturing plants, outdoor enclosures, and other harsh environments where temperature stability is crucial.
- Rugged construction
- Temperature-hardened components
Flexible Installation
With rail, rack, and wall mounting options, the converter adapts to various installation scenarios without requiring additional hardware or complex setup procedures.
- Multiple mounting choices
- Compact footprint
Cost-Effective Fiber Extension
By converting existing copper infrastructure to fiber, this device extends network reach up to 0.55 km without replacing entire cable runs, protecting investments in twisted pair cabling.
- Leverages existing copper
- Extends fiber reach economically
Deployment / Use Cases
This media converter is ideal for scenarios where network signals need to traverse longer distances or harsh environments that exceed the limitations of standard copper Ethernet cabling.
Common deployments include industrial automation networks where machinery generates electromagnetic interference that can disrupt copper signals, campus networks requiring connections between buildings, and security systems that need to transmit video feeds over extended distances. The industrial temperature rating makes it suitable for manufacturing floors, utility substations, and outdoor telecommunications cabinets where temperature extremes are common.
Industrial Network Extension
Connect PLCs, sensors, and control systems across factory floors where EMI resistance and temperature tolerance are essential for reliable operation.
Building-to-Building Links
Establish fiber connections between separate structures while maintaining compatibility with existing copper-based network equipment at each endpoint.
Physical Profile
The converter measures 1" (25.40 mm) in height, 3.10" (78.74 mm) in width, and 4.70" (119.38 mm) in depth, with a weight of approximately 11.20 oz (317.51 g). Its compact dimensions and multiple mounting options allow for flexible installation in space-constrained environments such as control panels, network racks, or wall-mounted enclosures. The industrial-grade housing provides physical protection against dust, vibration, and temperature extremes commonly encountered in operational environments.
- Width
- 3.10" (78.74 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 11.20 oz (317.51 g)
Highlights
- Converts 10/100/1000Base-T copper Ethernet to 1000Base-SX fiber optic signals
- Supports multi-mode fiber with SC duplex connectors for distances up to 0.55 km
- Industrial temperature rating ensures reliability in harsh environments
- Rail, rack, and wall mounting options provide installation flexibility
- Compact design with dimensions of 1" H × 3.10" W × 4.70" D
- Environmentally compliant with REACH, RoHS, and WEEE standards
- Lifetime limited warranty for long-term deployment confidence
- Plug-and-play operation without management port complexity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05090670 |
| Brand Name | Perle |
| Product Model | S-1110-M2SC05-XT |
| Product Name | S-1110-XT 10/100/1000 to Fiber Industrial Temperature Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-SX |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 11.20 oz (317.51 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of connections does this media converter support?
The converter has one RJ-45 port for copper Ethernet connections (supporting 10/100/1000Base-T) and one SC duplex port for fiber optic connections (supporting 1000Base-SX). This allows it to bridge between twisted pair cabling and multi-mode fiber optic cables.
What is the maximum distance supported by this converter?
It supports fiber optic transmission distances up to 0.55 km (0.34 miles) when using multi-mode fiber. This extended reach makes it suitable for connecting network segments across buildings or throughout large industrial facilities where copper Ethernet distance limitations would be exceeded.
What mounting options are available for this device?
The converter supports rail mounting, rack mounting, and wall mounting, providing flexibility for various installation scenarios. This allows deployment in control panels, network racks, or directly on walls in industrial or commercial environments without requiring additional mounting hardware.
What does 'industrial temperature' mean for this media converter?
Industrial temperature rating indicates the device is designed to operate reliably in environments with temperature extremes that would exceed standard commercial temperature ranges. This makes it suitable for deployment in manufacturing facilities, outdoor enclosures, utility stations, and other harsh environments where temperature fluctuations are common.
Does this converter require any management or configuration?
No, this is a plug-and-play media converter without a management port. It automatically negotiates speed and duplex settings between the copper and fiber interfaces, making it simple to deploy for basic network extension tasks without requiring configuration or monitoring software.
What environmental standards does this product comply with?
The converter complies with REACH (Registration, Evaluation, Authorization and Restriction of Chemicals), RoHS (Restriction of Hazardous Substances), and WEEE (Waste Electrical and Electronic Equipment Directive) environmental standards. This ensures it meets regulatory requirements for hazardous substance restrictions and end-of-life disposal in many markets.
