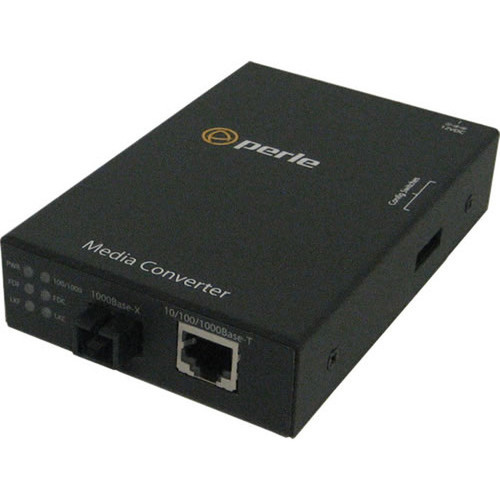

Perle 05090740 S-1110-XT Industrial Temp Gigabit Media Converter - 1x RJ-45 to 1x SC Single-mode Fiber - 10 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter features a straightforward port configuration with one RJ-45 port for copper Ethernet connections and one SC simplex port for single-mode fiber. It supports Gigabit Ethernet speeds, delivering up to 1000 Mbps data transfer rates over twisted pair cables while converting signals for fiber optic transmission.
The device is engineered for single-mode fiber, which offers low signal attenuation and high bandwidth over long distances, making it ideal for backbone links, campus networks, and industrial applications. It complies with 1000Base-BX-D standards for bidirectional communication over a single fiber strand, optimizing fiber utilization.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Perle S-1110-XT media converter provides robust connectivity solutions for extending network reach and enhancing signal integrity in demanding environments.
Extended Distance Coverage
Supports fiber optic connections up to 10 km, eliminating distance limitations of copper cabling and reducing signal degradation in large-scale deployments.
- Ideal for long-haul links
- Minimizes latency and interference
Industrial Durability
Designed for industrial temperature ranges, ensuring reliable operation in extreme conditions such as manufacturing floors, outdoor enclosures, or utility sites.
- Withstands harsh environments
- Consistent performance under stress
Flexible Mounting Options
Offers rail, rack, and wall mounting capabilities, providing installation versatility to fit various space constraints and infrastructure layouts.
- Easy integration into existing setups
- Saves space in crowded cabinets
Deployment / Use Cases
This media converter is essential for scenarios where copper Ethernet needs to be extended over long distances or where fiber optic infrastructure is required for improved signal quality and immunity to electromagnetic interference.
Common applications include connecting remote buildings in campus networks, linking industrial control systems across factory floors, and integrating fiber backbones into enterprise networks. It is also used in surveillance systems to transmit video data over fiber for security installations and in telecommunications for last-mile connectivity.
Industrial Automation
Connects PLCs, sensors, and control devices in manufacturing plants, leveraging fiber's noise immunity for stable communication in electrically noisy environments.
Network Expansion
Extends LAN segments beyond the 100-meter limit of copper cabling, enabling seamless connectivity between distant offices or data centers.
Physical Profile
The converter has a compact footprint measuring 1" (25.40 mm) in height, 3.10" (78.74 mm) in width, and 4.70" (119.38 mm) in depth, making it easy to install in tight spaces. Its lightweight design at 317.5 g ensures minimal load on mounting structures, while the robust construction supports durable performance in industrial settings.
- Width
- 3.10" (78.74 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 317.5 g
Highlights
- Converts 10/100/1000Base-T Ethernet to single-mode fiber with SC connector
- Supports distances up to 10 km for long-range network extensions
- Industrial temperature rating for reliable operation in harsh environments
- Rail, rack, and wall mountable for flexible installation options
- Gigabit Ethernet technology delivers up to 1000 Mbps data transfer rates
- Single-mode fiber support ensures low signal loss and high bandwidth
- Compact design with dimensions of 1" H x 3.10" W x 4.70" D
- Compliant with REACH, RoHS, and WEEE environmental standards
- Lifetime limited warranty for long-term reliability assurance
- Made in Canada, supporting local manufacturing and quality standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05090740 |
| Brand Name | Perle |
| Product Model | S-1110-S1SC10D-XT |
| Product Name | S-1110-XT 10/100/1000 to Fiber Industrial Temperature Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Maximum Distance Supported | 10 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-BX-D |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 317.5 g |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of cables does this media converter support?
The Perle S-1110-XT supports twisted pair cables (such as Cat5e, Cat6) for copper Ethernet connections and single-mode optical fiber with SC connectors. This allows it to bridge standard Ethernet networks with fiber optic infrastructure, enabling extended distance coverage and improved signal integrity.
What is the maximum distance supported for fiber connections?
This media converter supports fiber optic connections up to 10 kilometers. This extended range makes it suitable for applications requiring long-distance data transmission, such as connecting remote buildings, industrial sites, or campus networks without signal degradation.
Can this converter be mounted in different ways?
Yes, it offers multiple mounting options including rail-mountable, rack-mountable, and wall-mountable configurations. This flexibility allows for easy integration into various environments, such as control cabinets, server racks, or direct wall installations, adapting to space constraints and infrastructure needs.
What is the industrial temperature rating, and why is it important?
The industrial temperature rating ensures reliable operation across a wide range of environmental conditions, typically from -40°C to 75°C or similar extremes. This is crucial for deployments in harsh settings like manufacturing floors, outdoor enclosures, or utility sites, where standard converters might fail due to temperature fluctuations.
Does this media converter require external power?
Yes, it requires external power via a standard AC adapter (not included). The power method is designed for stable operation in industrial environments, with details on voltage and connector type specified in the product documentation to ensure proper setup and compatibility.
What warranty is provided with this product?
Perle offers a lifetime limited warranty for the S-1110-XT media converter. This warranty covers defects in materials and workmanship, providing long-term reliability and support for industrial and commercial deployments, backed by the manufacturer's commitment to quality and durability.
