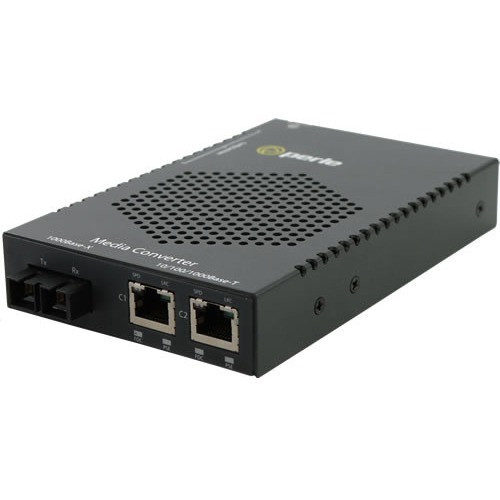

Perle 05079300 S-1110DHP-SC10-XT Transceiver/Media Converter - 2x RJ-45 + 1x Duplex SC - Single-mode 1310 nm Fiber - 10 km - Hi-PoE PSE (up to 100W)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The converter operates at Gigabit Ethernet speeds, supporting network technologies including 1000Base-LX/LH for fiber and 10/100/1000Base-T for copper. It uses a 1310 nm wavelength on single-mode fiber, compatible with 62.5 µm and 50 µm core/cladding specifications, ensuring broad compatibility with standard fiber optic cabling.
Advanced networking features include Auto-MDIX for automatic cable detection, loopback testing for diagnostics, fiber fault alert for proactive monitoring, and fiber redundancy to maintain connectivity in case of a fiber link failure. The Smart Link Pass-Through function ensures seamless integration into existing network topologies without disrupting traffic flow.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter excels in environments where distance, power delivery, and reliability are critical. Its combination of long-range fiber conversion and high-power PoE support reduces infrastructure costs by eliminating the need for separate power supplies and extending network reach beyond copper limitations.
Extended Temperature Operation
Operates reliably in temperatures from -40°F to +167°F (-40°C to +75°C), making it ideal for industrial controls, outdoor surveillance, and harsh climate applications where standard converters may fail.
Advanced PoE Management
Supplies up to 100W of Hi-PoE PSE power, compatible with all major PoE standards. Features like PD Reset allow remote power cycling of connected devices, reducing maintenance visits and downtime.
Fiber Redundancy & Monitoring
Includes fiber redundancy for backup link support and fiber fault alert for real-time monitoring, ensuring network resilience and quick issue identification in critical deployments.
Deployment / Use Cases
The S-1110DHP-SC10-XT is engineered for scenarios where network extension, fiber conversion, and centralized power delivery are required. Its robust design and advanced features make it a reliable choice for both standard and challenging installations.
In security and surveillance systems, it can connect remote IP cameras over long distances via fiber while providing PoE power, eliminating the need for local power sources at each camera location. For industrial automation, it extends network connectivity to machinery in harsh environments, withstanding extreme temperatures and providing reliable data transmission.
In campus or large facility networks, it bridges copper and fiber segments, enabling network expansion across buildings or between floors with the 10 km fiber reach. The multi-mount flexibility allows installation in server racks, on walls, or alongside other networking equipment as needed.
Physical Profile
The converter features a compact, durable enclosure measuring 1.02" x 5.91" x 3.74" (26 mm x 150 mm x 95 mm) and weighing 14.11 oz (400 g). Its multi-mount design supports rack-mounting with optional brackets, rail-mounting in industrial settings, wall-mounting for space-constrained installations, or standalone placement on a flat surface.
The small footprint and lightweight construction make it easy to integrate into existing network cabinets or deploy in remote locations without requiring significant space or structural support.
- Width
- 5.91" (150 mm)
- Depth
- 3.74" (95 mm)
- Height
- 1.02" (26 mm)
- Weight
- 14.11 oz (400 g)
- Length
- 1310 nm
Highlights
- Converts 10/100/1000Base-T to 100/1000Base-X fiber with 10 km range over single-mode fiber
- Dual RJ-45 ports and one duplex SC port for flexible connectivity
- Supplies IEEE 802.3bt Hi-PoE PSE power up to 100W, compatible with 802.3af/at devices
- Operates in extended temperatures from -40°F to +167°F (-40°C to +75°C)
- Includes advanced features: PD Reset, fiber redundancy, Smart Link Pass-Through, fiber fault alert
- Auto-MDIX and loopback for easy installation and diagnostics
- Rack-mountable, rail-mountable, wall-mountable, or standalone form factor
- Gigabit Ethernet speed with support for 1000Base-LX/LH and 10/100/1000Base-T
- Environmentally compliant with WEEE, REACH, and RoHS standards
- Lifetime limited warranty and manufactured in Canada
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05079300 |
| Brand Name | Perle |
| Product Series | S-1110HP-XT |
| Product Model | S-1110DHP-SC10-XT |
| Product Name | S-1110DHP-SC10-XT Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5 µm,50 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX/LH,10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Rail-mountable,Wall Mountable,Standalone |
| Height | 1.02" (26 mm) |
| Width | 5.91" (150 mm) |
| Depth | 3.74" (95 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle S-1110DHP-SC10-XT converts Ethernet signals between copper twisted-pair (10/100/1000Base-T) and fiber optic (100/1000Base-X) media. It extends network connections up to 10 km over single-mode fiber while providing Power over Ethernet to connected devices through its RJ-45 ports.
What types of Power over Ethernet does it support?
This converter supplies IEEE 802.3bt Hi-PoE PSE power up to 100W and is compatible with devices using IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards. It can power a wide range of networked equipment like IP cameras, wireless access points, and VoIP phones directly from the network cable.
What is the maximum distance supported over fiber?
The converter supports a maximum distance of 10 km (6.21 miles) over single-mode fiber using a 1310 nm wavelength. This long reach makes it suitable for connecting network segments across buildings, campuses, or industrial sites where copper Ethernet would be insufficient.
Can this converter operate in harsh environments?
Yes, it is designed for extended temperature operation from -40°F to +167°F (-40°C to +75°C), making it reliable in industrial, outdoor, or uncontrolled climate settings. Its robust construction and advanced features like fiber redundancy ensure stable performance in demanding conditions.
What advanced networking features are included?
Advanced features include PD Reset for remote power cycling of connected devices, fiber redundancy for backup link support, Smart Link Pass-Through for seamless network integration, fiber fault alert for proactive monitoring, Auto-MDIX for automatic cable detection, and loopback for diagnostic testing.
How can this converter be mounted or installed?
The converter offers multiple mounting options: rack-mountable with optional brackets, rail-mountable for industrial enclosures, wall-mountable for space-saving installations, or standalone on a flat surface. Its compact size (1.02" x 5.91" x 3.74") and lightweight design (14.11 oz) allow flexible deployment in various network environments.
