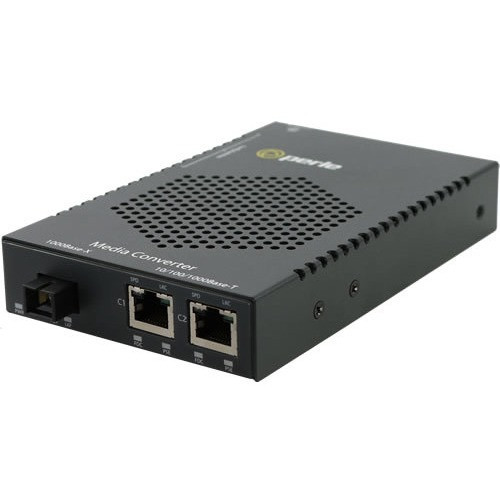

Perle 05079884 S-1110DHP-SC120U Transceiver/Media Converter - 2x RJ-45 + 1x ST Simplex - Single-mode 120 km - Hi-PoE PSE up to 100W
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter implements Gigabit Ethernet technology across both copper and fiber interfaces. The dual RJ-45 ports support auto-negotiation for 10/100/1000Base-T connections, while the ST simplex port handles 100/1000Base-X fiber standards. The device features advanced signal processing to maintain data integrity during conversion between different media types.
Power management is a core technical strength, with the converter acting as an IEEE 802.3bt Hi-PoE Power Sourcing Equipment (PSE) capable of delivering up to 100 watts. It maintains backward compatibility with IEEE 802.3af PoE and IEEE 802.3at PoE+ devices, providing flexible power options for connected equipment. The unit incorporates multiple operational safeguards including fiber fault alerts and redundancy features to ensure network stability.
Key Product Advantages
The S-1110DHP-SC120U delivers exceptional value through its combination of extended reach, high-power PoE support, and deployment flexibility. Unlike basic media converters, this model includes enterprise-grade features that simplify network design and improve reliability in demanding environments.
Extended Fiber Reach
Support for 120 km single-mode fiber connections enables network expansion across campuses, between buildings, or in metropolitan area networks without signal degradation.
- Eliminates distance limitations of copper
- Maintains full Gigabit throughput
- Reduces need for intermediate equipment
Advanced PoE Capability
As an IEEE 802.3bt Hi-PoE PSE, the converter can power high-demand devices such as PTZ cameras, wireless access points, or small switches directly through the network connection.
- Supports up to 100W output
- Backward compatible with older PoE standards
- Simplifies power infrastructure
Operational Intelligence
Built-in management features including fiber fault alerts, PD reset functionality, and smart link pass-through provide visibility and control over network performance.
- Proactive fault detection
- Remote device management
- Reduced troubleshooting time
Deployment / Use Cases
This media converter excels in scenarios where network extension, media conversion, and remote power delivery converge. Its combination of features makes it particularly valuable for modern network infrastructure that must support both data and power requirements across diverse physical environments.
In security and surveillance deployments, the converter can extend network connections to remote camera locations while providing sufficient power for PTZ cameras with heaters, blowers, or infrared illuminators. For wireless network expansion, it enables placement of access points in optimal locations far from network closets, with both data and power delivered over a single fiber run.
Campus Network Extension
Connect buildings across large properties while maintaining Gigabit performance and powering edge devices at remote locations.
Industrial Networking
Deploy in manufacturing or utility environments where fiber's immunity to EMI is essential and remote equipment requires substantial power.
Physical Profile
The converter's compact dimensions of 1.02 inches in height, 5.91 inches in width, and 3.74 inches in depth allow for space-efficient installation in various environments. Weighing just 14.11 ounces, it can be easily mounted in standard 19-inch racks using included hardware, attached to rails in equipment cabinets, secured to walls in telecom closets, or placed on flat surfaces as a standalone unit. The slim profile maximizes port density in constrained spaces while maintaining adequate ventilation for reliable operation.
- Width
- 5.91" (150 mm)
- Depth
- 3.74" (95 mm)
- Height
- 1.02" (26 mm)
- Weight
- 14.11 oz (400 g)
- Length
- 1510 nm,1590 nm
Highlights
- Converts 10/100/1000Base-T copper to 100/1000Base-X fiber optic signals
- Supports single-mode fiber connections up to 120 km (74.56 miles)
- Dual RJ-45 ports plus one ST simplex fiber port
- IEEE 802.3bt Hi-PoE PSE delivers up to 100W power to connected devices
- Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ standards
- Advanced features include fiber fault alerts and PD reset functionality
- Rack, rail, wall, or standalone mounting options
- Environmentally compliant with WEEE, REACH, and RoHS standards
- Manufactured in Canada with lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05079884 |
| Brand Name | Perle |
| Product Series | S-1110HP |
| Product Model | S-1110DHP-SC120U |
| Product Name | S-1110DHP-SC120U Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of ST Ports | 1 |
| ST Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1510 nm,1590 nm |
| Maximum Distance Supported | 120 km (74.56 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX,10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Rail-mountable,Wall Mountable,Standalone |
| Height | 1.02" (26 mm) |
| Width | 5.91" (150 mm) |
| Depth | 3.74" (95 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of connections does this media converter support?
The Perle S-1110DHP-SC120U supports two connection types: two RJ-45 ports for standard copper Ethernet (10/100/1000Base-T) and one ST simplex port for single-mode fiber optic connections (100/1000Base-X). This allows conversion between copper and fiber media while maintaining Gigabit Ethernet performance across both interfaces.
How far can this converter extend my network over fiber?
This media converter supports fiber optic connections up to 120 kilometers (approximately 74.56 miles) when using single-mode fiber. This extended reach makes it suitable for connecting remote buildings, campus networks, or metropolitan area networks without signal degradation that would occur with copper cabling over similar distances.
What Power over Ethernet capabilities does this converter provide?
The converter functions as an IEEE 802.3bt Hi-PoE Power Sourcing Equipment (PSE) capable of delivering up to 100 watts of power to connected devices. It maintains backward compatibility with older IEEE 802.3af PoE (up to 15.4W) and IEEE 802.3at PoE+ (up to 30W) standards, allowing it to power a wide range of network equipment including cameras, access points, and phones.
What installation options are available for this media converter?
The converter offers multiple installation methods to suit different deployment scenarios. It can be rack-mounted in standard 19-inch equipment racks, attached to rails in server cabinets, wall-mounted in telecom closets, or placed on flat surfaces as a standalone unit. The compact dimensions of 1.02" H × 5.91" W × 3.74" D allow for flexible placement in space-constrained environments.
What advanced features does this converter include for network management?
Beyond basic media conversion, this unit includes several enterprise-grade management features: fiber fault alerts notify administrators of connection issues, PD reset functionality allows remote power cycling of connected devices, smart link pass-through maintains network topology, and auto-MDIX eliminates the need for crossover cables. These features simplify troubleshooting and improve network reliability.
What environmental and compliance standards does this product meet?
The converter is environmentally friendly and complies with multiple international standards: WEEE (Waste Electrical and Electronic Equipment Directive) for responsible disposal, REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) for substance control, and RoHS (Restriction of Hazardous Substances) for material safety. It is manufactured in Canada and backed by a lifetime limited warranty from Perle Systems.
