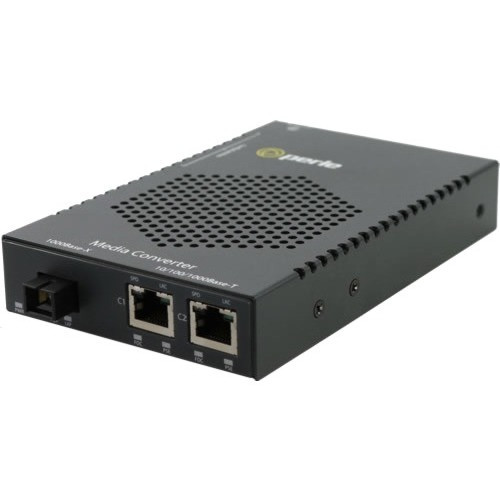

Perle 05079854 S-1110DHP-SC40D Media Converter - 2x RJ-45 Gigabit PoE Ports - 1x Simplex SC Single-mode Fiber - 40 km - Hi-PoE PSE up to 100W
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The S-1110DHP-SC40D operates with Gigabit Ethernet technology, supporting both 1000Base-BX for fiber and 10/100/1000Base-T for copper. It uses single-mode fiber with wavelengths of 1310 nm and 1490 nm, ensuring efficient signal transmission over extended distances.
Advanced networking features include fiber redundancy, Smart Link Pass-Through for seamless failover, Fiber Fault Alert for monitoring, Auto-MDIX for automatic cable detection, and Loopback for diagnostics. The device also offers PD Reset functionality to manage connected PoE devices.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter combines robust fiber extension with high-power PoE delivery, making it ideal for powering remote devices like IP cameras, wireless access points, and VoIP phones over long distances.
Dual-Purpose PoE Ports
The two RJ-45 ports supply PoE power while handling data conversion, eliminating the need for separate power injectors and simplifying cable runs.
- Supports IEEE 802.3af, 802.3at, and 802.3bt
- Delivers up to 100W per port
- Compatible with a wide range of PoE devices
Long-Distance Fiber Connectivity
With a 40 km range over single-mode fiber, this converter extends network segments far beyond copper limitations, suitable for campus, industrial, or outdoor installations.
- Simplex SC connector for easy termination
- 1310 nm and 1490 nm wavelengths
- Fiber redundancy for reliability
Deployment / Use Cases
Deploy the S-1110DHP-SC40D in scenarios requiring both network extension and remote power delivery. Its compact, versatile form factor supports rack, wall, or standalone mounting, fitting into diverse IT environments.
Common applications include connecting remote security cameras over fiber while powering them via PoE, extending network links between buildings in educational or corporate campuses, and integrating fiber backbones into existing copper-based networks for industrial automation.
Surveillance and Security
Power IP cameras and transmit video over fiber to central monitoring stations, ensuring reliable operation over long distances without signal degradation.
Network Infrastructure Expansion
Extend Gigabit Ethernet networks across large facilities or between separate buildings, leveraging fiber for immunity to electromagnetic interference and longer reach.
Physical Profile
The converter has a compact design measuring 1.02 inches in height, 5.91 inches in width, and 3.74 inches in depth, with a weight of 14.11 ounces. Its small footprint allows flexible installation in tight spaces, such as network racks, wall enclosures, or desktop setups. The unit is built for durability and includes multiple mounting options to suit various deployment needs.
- Width
- 5.91" (150 mm)
- Depth
- 3.74" (95 mm)
- Height
- 1.02" (26 mm)
- Weight
- 14.11 oz (400 g)
- Length
- 1310 nm,1490 nm
Highlights
- Converts 10/100/1000Base-T Ethernet to 100/1000Base-X fiber
- Two RJ-45 Gigabit PoE ports with Hi-PoE PSE up to 100W
- Single Simplex SC port for single-mode fiber connectivity
- Maximum fiber distance of 40 km (24.85 miles)
- Supports IEEE 802.3af, 802.3at, and 802.3bt PoE standards
- Advanced features: fiber redundancy, Smart Link Pass-Through, Fiber Fault Alert
- Auto-MDIX and Loopback for easy deployment and diagnostics
- Rack-mountable, wall-mountable, rail-mountable, or standalone form factor
- Environmentally compliant with WEEE, REACH, and RoHS
- Lifetime limited warranty and made in Canada
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05079854 |
| Brand Name | Perle |
| Product Series | S-1110HP |
| Product Model | S-1110DHP-SC40D |
| Product Name | S-1110DHP-SC40D Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1490 nm |
| Maximum Distance Supported | 40 km (24.85 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX,10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Rail-mountable,Wall Mountable,Standalone |
| Height | 1.02" (26 mm) |
| Width | 5.91" (150 mm) |
| Depth | 3.74" (95 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle S-1110DHP-SC40D converts Gigabit Ethernet signals from copper twisted pair (10/100/1000Base-T) to fiber optic signals (100/1000Base-X). It extends network connections up to 40 kilometers using single-mode fiber while providing Power over Ethernet to connected devices through its two RJ-45 ports.
What types of PoE does it support?
This converter supports IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt (Hi-PoE) standards. It acts as a Power Sourcing Equipment (PSE) capable of delivering up to 100W of power per port, making it compatible with a wide range of PoE devices like cameras, access points, and phones.
What fiber connector and type does it use?
It uses a single Simplex SC connector for fiber optic connections. The converter supports single-mode fiber with wavelengths of 1310 nm and 1490 nm, which is ideal for long-distance applications up to 40 kilometers.
How far can it transmit over fiber?
The maximum supported distance is 40 kilometers (approximately 24.85 miles) over single-mode fiber. This makes it suitable for extending network links across large campuses, between buildings, or in industrial settings where copper cables are insufficient.
What are the mounting options?
The converter is designed for versatile installation. It can be rack-mounted using standard brackets, mounted on walls or rails, or placed standalone on a desktop. Its compact dimensions of 1.02" H x 5.91" W x 3.74" D allow it to fit in various environments.
Does it include any advanced networking features?
Yes, it includes several advanced features: fiber redundancy for backup links, Smart Link Pass-Through for automatic failover, Fiber Fault Alert to monitor connection integrity, Auto-MDIX for automatic cable polarity detection, and Loopback for testing and diagnostics. These enhance reliability and simplify management.
