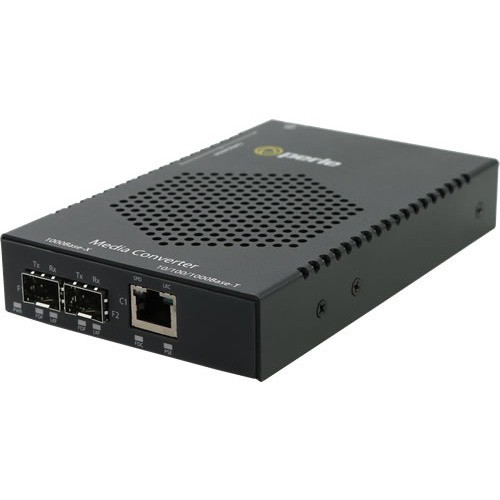

Perle 05079354 S-1110HP-DSFP Transceiver/Media Converter - 1 x RJ-45 Gigabit Ethernet - 2 x SFP Slots - 0. 10 km - PoE PSE up to 100W
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The S-1110HP-DSFP operates as a Gigabit Ethernet media converter with advanced PoE capabilities. It supports full-duplex 1000Base-X and 10/100/1000Base-T network technologies, ensuring compatibility with modern network infrastructures. The converter handles media types including twisted pair and optical fiber, with a maximum supported distance of 0.10 km (0.06 miles) for reliable extended reach.
Its dual SFP slots provide flexibility for single or multimode fiber connections, while the integrated RJ-45 port delivers copper-based network access. The device includes smart features like auto-MDIX for automatic cable detection and loopback for diagnostic testing, enhancing operational efficiency.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter stands out with its high-power PoE PSE functionality, supplying up to 100W of power per IEEE 802.3bt Hi-PoE standards to support power-hungry devices like PTZ cameras, wireless access points, and VoIP phones. It maintains backward compatibility with IEEE 802.3af PoE and IEEE 802.3at PoE+ devices, ensuring broad interoperability across PoE ecosystems.
Advanced PoE Management
The integrated PoE PSE supports advanced features like PD Reset for remote power cycling, fiber redundancy for failover protection, and Fiber Fault Alert for proactive network monitoring.
- Hi-PoE up to 100W
- Compatible with af/at standards
- PD Reset functionality
Flexible Fiber Connectivity
Two empty SFP slots accept industry-standard modules, allowing customization for single-mode or multimode fiber, different wavelengths, and connector types (LC, SC, etc.) based on deployment needs.
- Dual SFP slots
- Cisco-compatible
- Fiber redundancy support
Deployment / Use Cases
The S-1110HP-DSFP is ideal for extending network reach beyond copper limitations, such as connecting buildings across campuses, linking industrial equipment in harsh environments, or integrating fiber backbones into existing copper networks. Its PoE PSE capability makes it particularly valuable for powering remote devices without separate power sources.
Common applications include surveillance systems where PTZ cameras require both data and high power, wireless networks needing extended coverage with powered access points, and VoIP deployments where phones and switches need reliable connectivity over distance. The multi-mount form factor supports installation in server racks, telecom closets, or on walls near endpoint devices.
Surveillance & Security
Deploy in CCTV systems to convert copper camera feeds to fiber for long-distance transmission while providing up to 100W PoE to PTZ cameras, eliminating separate power runs.
- Hi-PoE for PTZ cameras
- Fiber for long reach
- Wall-mountable for field installs
Enterprise Network Extension
Use in office buildings or campuses to bridge fiber backbone segments to copper desk drops, with PoE+ support for VoIP phones and wireless access points in remote areas.
- Gigabit throughput
- PoE+ for VoIP/Wi-Fi
- Rack-mountable for data centers
Physical Profile
The converter has a compact footprint measuring 1.02 inches in height, 5.91 inches in width, and 3.74 inches in depth (26 mm x 150 mm x 95 mm), with an approximate weight of 14.11 ounces (400 grams). Its design supports multiple mounting options: rack-mountable with standard brackets, rail-mountable for DIN rail installations, wall-mountable with screw holes, or standalone placement on flat surfaces. The slim profile and lightweight construction facilitate easy integration into space-constrained environments without sacrificing durability.
- Width
- 5.91" (150 mm)
- Depth
- 3.74" (95 mm)
- Height
- 1.02" (26 mm)
- Weight
- 14.11 oz (400 g)
Highlights
- Converts 10/100/1000Base-T to 100/1000Base-X fiber for extended network reach.
- Features 1 RJ-45 port and 2 SFP slots for flexible copper-to-fiber connectivity.
- Supplies IEEE 802.3bt Hi-PoE PSE with up to 100W power output.
- Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ devices.
- Supports advanced features: PD Reset, fiber redundancy, Smart Link Pass-Through.
- Includes Fiber Fault Alert, Auto-MDIX, and Loopback for network management.
- Rack-mountable, rail-mountable, wall-mountable, and standalone form factor.
- Environmentally compliant with WEEE, RoHS, and REACH standards.
- Backed by a lifetime limited warranty for long-term reliability.
- Manufactured in Canada with high-quality components.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05079354 |
| Brand Name | Perle |
| Product Series | S-1110HP-SFP |
| Product Model | S-1110HP-DSFP |
| Product Name | S-1110HP-DSFP Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X,10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Rail-mountable,Wall Mountable,Standalone |
| Height | 1.02" (26 mm) |
| Width | 5.91" (150 mm) |
| Depth | 3.74" (95 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does the Perle S-1110HP-DSFP converter do?
The S-1110HP-DSFP is a media converter that transforms Gigabit Ethernet signals between copper (10/100/1000Base-T over twisted pair) and fiber optic (100/1000Base-X) media. It enables network extension beyond the distance limits of copper cabling by converting electrical signals to optical signals for transmission over fiber, then back to electrical at the destination. This allows seamless integration of fiber segments into existing copper networks for improved reach and performance.
How many SFP slots does it have and what are they used for?
This converter has two SFP (mini-GBIC) slots. These slots accept industry-standard SFP transceiver modules, which determine the fiber type (single-mode or multimode), wavelength, and connector (e.g., LC, SC) for the optical connection. The dual slots provide flexibility for redundant fiber links, different fiber types, or future upgrades. They are compatible with Cisco and other vendor SFP modules, allowing customization based on specific network requirements.
What PoE standards does it support and how much power can it deliver?
The S-1110HP-DSFP functions as a PoE power sourcing equipment (PSE) that supplies power to connected devices. It supports IEEE 802.3bt Hi-PoE, delivering up to 100W of power per port. It is also compatible with lower-power IEEE 802.3af PoE (up to 15.4W) and IEEE 802.3at PoE+ (up to 30W) devices, ensuring interoperability with a wide range of PoE endpoints like cameras, access points, and phones without needing separate power injectors.
What is the maximum distance supported for network transmission?
The converter supports a maximum distance of 0.10 kilometers (0.06 miles) for network transmission. This distance applies to the fiber optic segment when using appropriate SFP modules; the copper RJ-45 segment follows standard Ethernet distance limits (up to 100 meters for twisted pair). The 0.10 km reach enables reliable connections over longer spans than copper alone, ideal for linking buildings or remote equipment in industrial or campus settings.
Can this converter be mounted in a rack or on a wall?
Yes, the S-1110HP-DSFP offers versatile mounting options. It is designed for rack-mounting with standard brackets, rail-mounting on DIN rails for industrial setups, wall-mounting using screw holes, or standalone placement on flat surfaces. Its compact dimensions (1.02" H x 5.91" W x 3.74" D) and lightweight build (14.11 oz) make it easy to install in various environments, from data center racks to field locations near powered devices.
What advanced features does it include for network management?
The converter includes several advanced features for robust network operation: PD Reset allows remote power cycling of connected PoE devices; fiber redundancy provides failover protection if one fiber link fails; Smart Link Pass-Through maintains connectivity during fiber switches; Fiber Fault Alert notifies of optical issues; Auto-MDIX automatically detects and adjusts for straight-through or crossover cables; and Loopback enables diagnostic testing. These features enhance reliability and simplify maintenance in critical deployments.
